TDK-Lambda G10-500 - Rear Panel Connectors

27
2.3 Rear Panel Connectors
Refer to Figure 2-2 and Table 2-2 for description of the Rear Panel connectors.

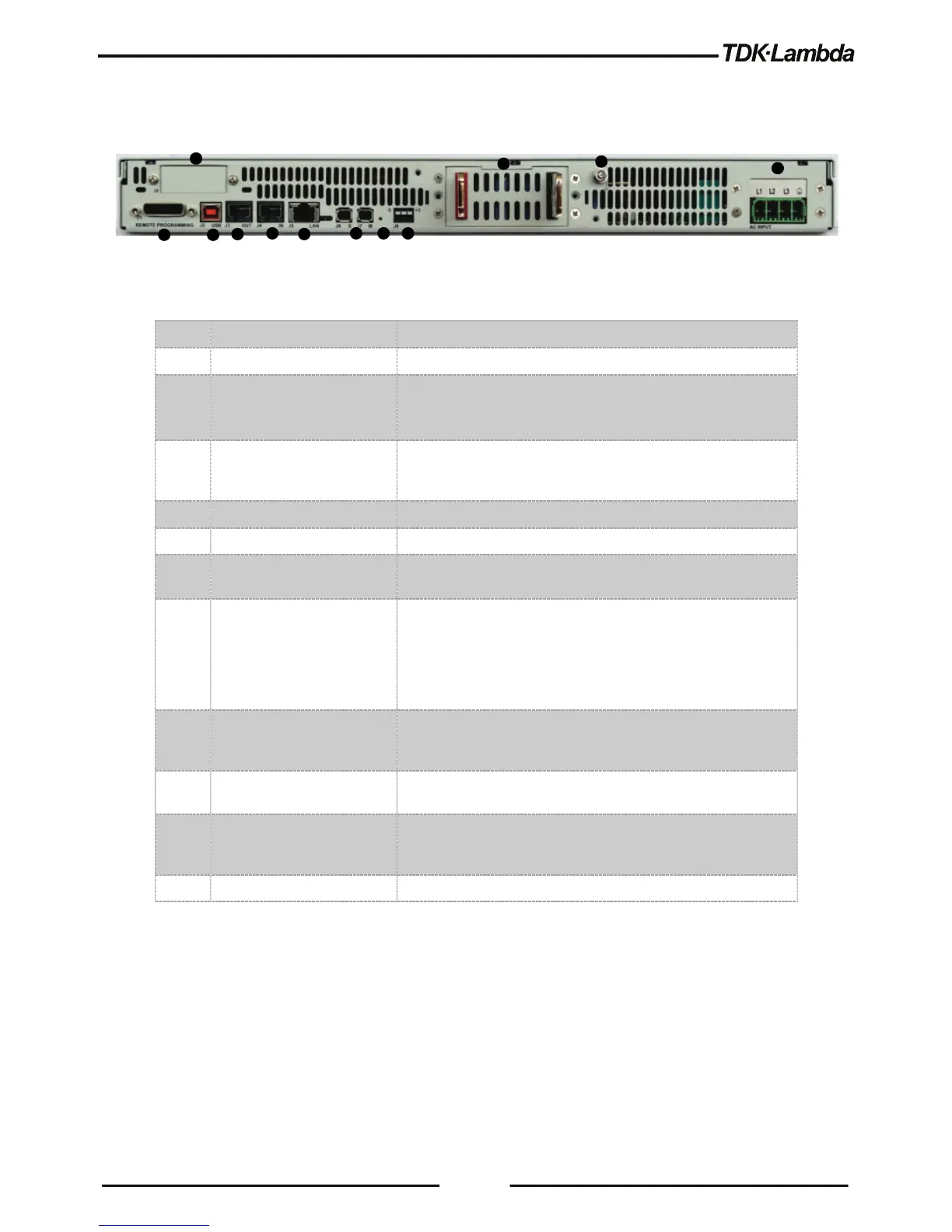

Figure 2-2: Rear panel connectors
No.
Connection
Description
1 AC Input Connector Connector type: Phoenix contact P/N: PC 5/ 4-G-7,62
2 Ground Stud Functional Ground connection M4x8 Stud
3
DC output bus-bar /
Connector
Bus-bars for 10V to 100V models.
Phoenix contact P/N: IPC 5/ 4-GF-7,62 for 150V to 600V
models.
4 Remote sense connector Connector for remote sensing connections. Connect to the
load for regulation of the load voltage and compensation of
load wire drop.
5 Reset button Set default Power Supply settings.
6 Paralleling Connectors Master/Slave connectors, mini I/O type.
7
LAN Connector +
Indicators
LAN interface connector, RJ-45 type + LXI indicators.
Connector type: UDE P/N: 26-31024KB91-1.
8 Serial In connector
RJ-45 type connector, used for connecting power supplies to
RS232 or RS485 port of a computer for remote control
purposes. When using several power supplies in a power
system, the first unit Remote-In is connected to the computer
and the remaining units are chained, Remote-In to Remote-
Out. Connector type: Molex 95540-2881.
9 Serial Out connector RJ-45 type connector, used for chaining power supplies
to/from a serial communication bus. Connector type: Molex
95540-2881.
10 USB Connector
USB interface connector, type B. Connector type: SAMTEC
P/N: USBR-B-S-F-O-TH.
11 Isolated control and signals Isolated analog Control and monitoring signals, isolated from
the output potential. Connector type: WE P/N:
618026325223.
12 Optional Interface Position for optional communication interface.
Table 2-2: Front panel controls and indicators
2
3
4
5
6
7
8
11
10
9
1
12
