3.4.2 Rack Mount Slides (Optional)
Use rack mount slides: General Devices Catalog Number: C-300-S-116. Part/Drawing Number:
CC3001-00-0160 or equivalent to install the unit in a standard 19" equipment rack. Refer to Figure 3-1
for slides assembly instructions. Use three #10-32x0.38"(max.) screws at each side. To prevent
internal damage, use the specified screw length only.
#10-
32x0.38"(max.)
screws
Tightening torque:
25.4~31.7Lbf-inch

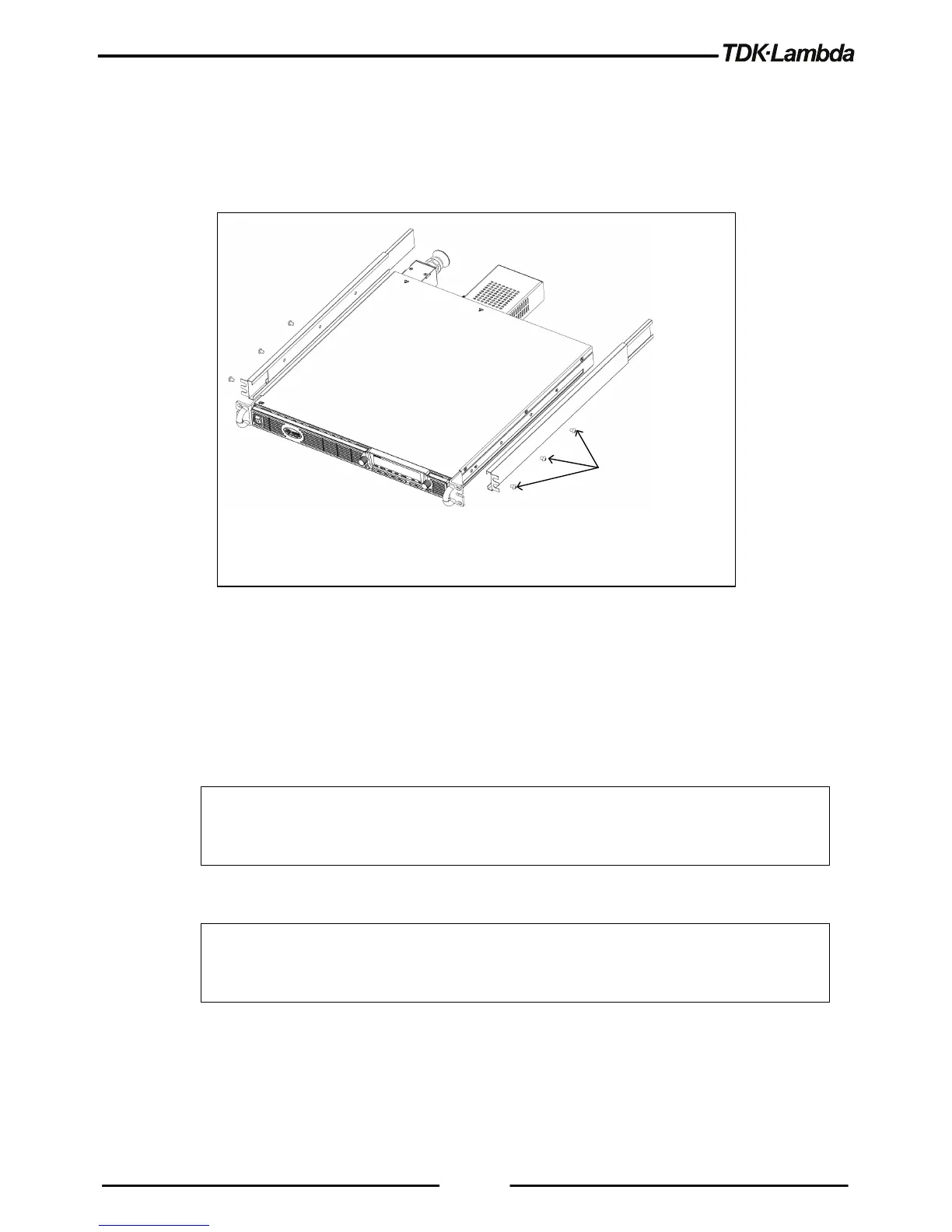

Figure 3-1: Rack – Mount Slides Assembly
3.5 Location, Mounting and Cooling
This power supply is fan cooled. The air intake is at the front panel and the exhaust is at the rear
panel. Upon installation allow cooling air to reach the front panel ventilation inlets.
CAUTION
Allow minimum 10cm (4”) of unrestricted air space at the front and the rear of the unit. The
power supply should be used in an area where the ambient temperature does not exceed
+50°C.
VORSICHT
Halten Sie vor und hinter dem Gerät einen lichten Mindestabstand von 10 cm ein. Das
Netzgerät sollte nur in Arbeitsbereichen benutzt werden, in denen die
Umgebungstemperatur +50 °C nicht übersteigt.
