36
7. Tighten the screws, tightening torque: 4.5-5.3 Lbf-inch. (0.5-0.6Nm).

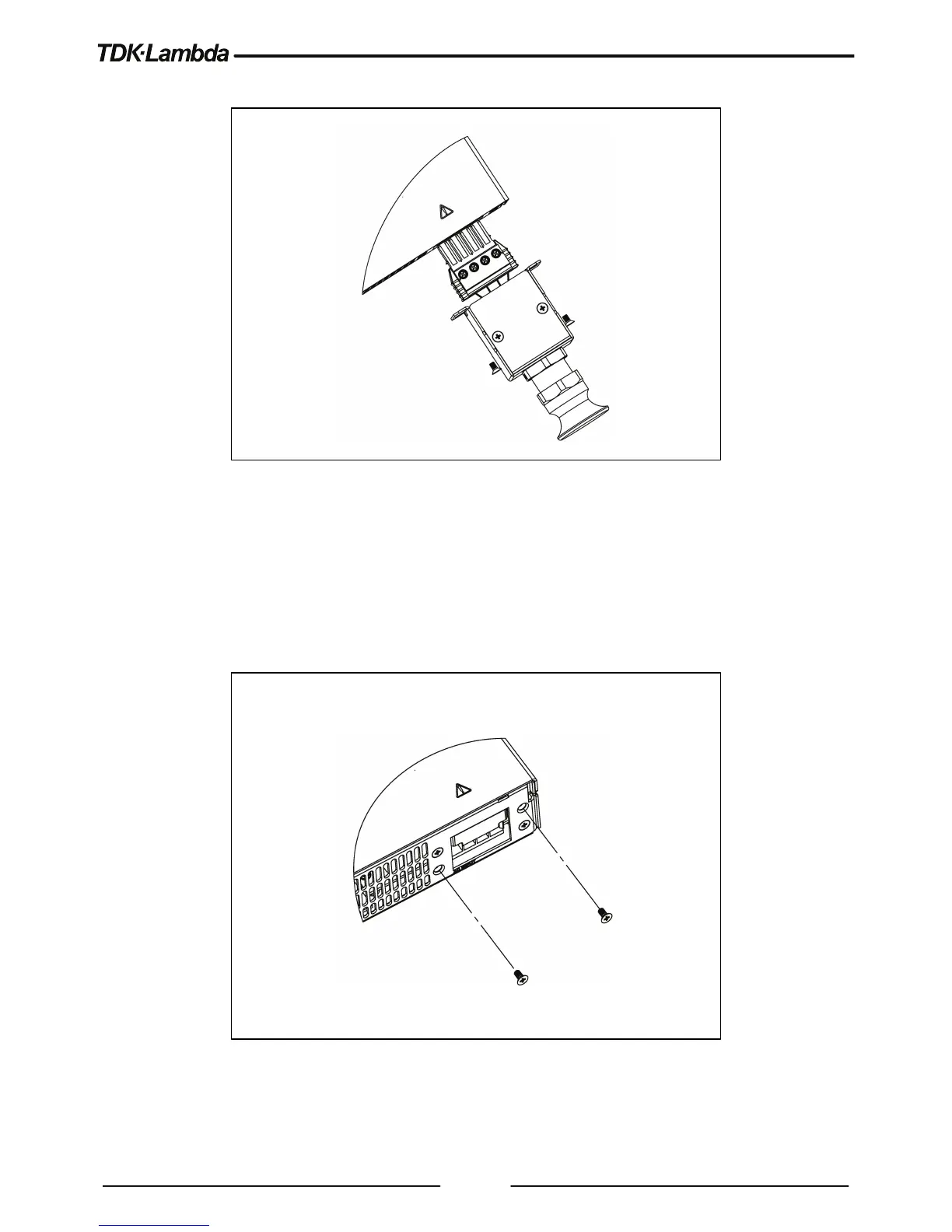

Figure 3-4: AC Wires Fixed to the AC Connector
8. After fixing the wires, close by manual force the cable gland conic entry part until the AC cable will
be well tightened. Beware not to apply excessive force.
Now the cable is securely fastened inside the strain relief assembly.
9. To fix the strain relief release assembly, unscrew 2 of the rear panel screws as shown in Figure
3-5. Do not reuse these screws.
Figure 3-5: Unscrew the Rear Panel Screws
10. Fix the strain relief assembly, by 2 M3x8 Flat head screws, supplied in the accessories box, as
shown in Figure 3-6. Tightening torque: 4.7-5.7 Lbf-inch. (0.53-0.64Nm).
