Mating CONNECTOR
(IPC 5/ 4-STF-7,62,
PHOENIX CONTACT)

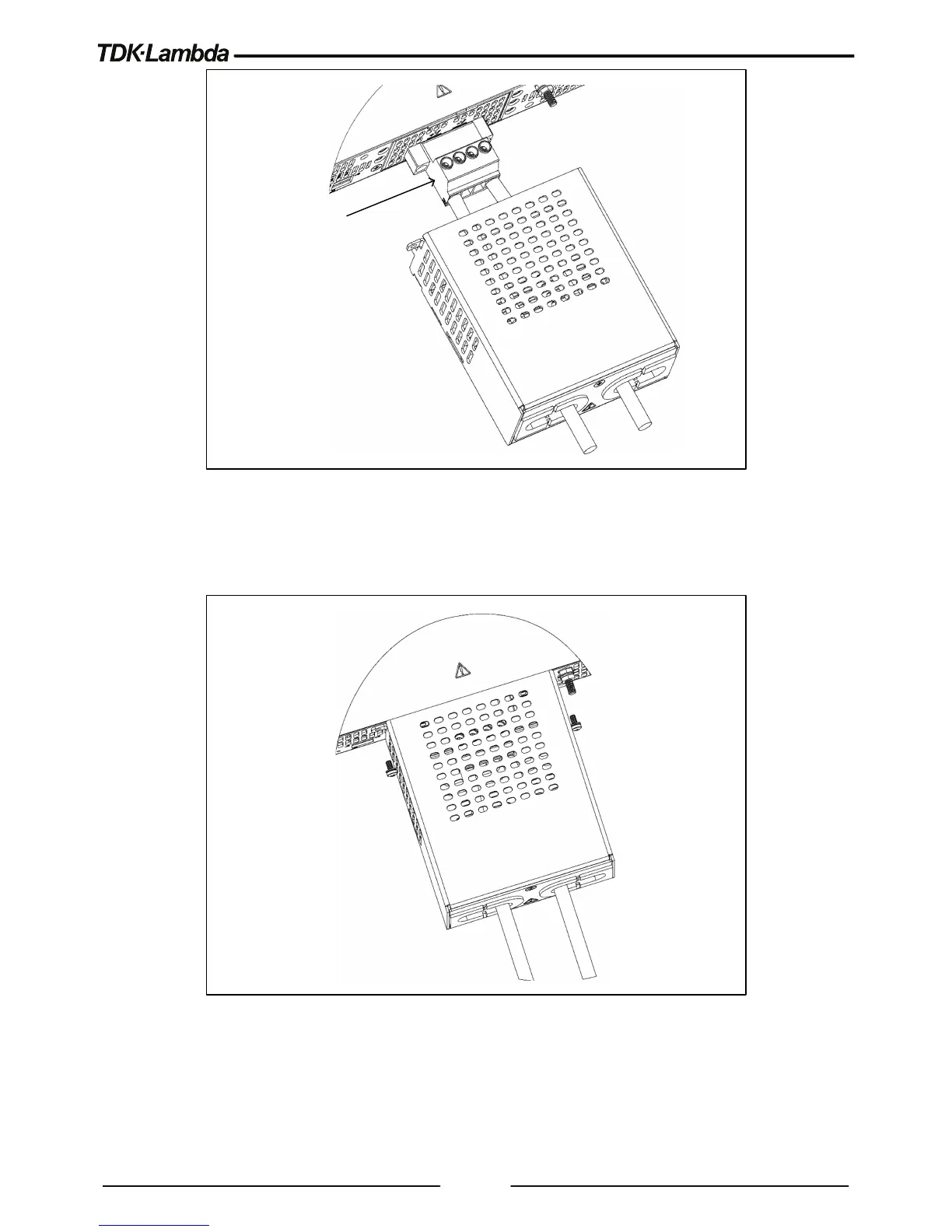

Figure 3-13: Load Wires Connection to the Output Plug
5. Fix the Output protection assembly to the rear panel of the power supply and tighten the screws
as shown in Figure 3-14. Tightening torque: 4.7 ~ 5.7 Lb-inch (0.53 ~ 0.64 Nm).
Figure 3-14: Output Connector Protection Assembly
