INSTRUCTION MANUAL
HWS 3000G
TDK-Lambda
<Page>
40/49
6-14. Output voltage monitor function
The output voltage can be monitored by measuring the voltage between the VB and AG terminals.
・Use a measuring device with an input impedance of 500kΩ or more
・Do not short-circuit between the VB terminal and AG terminal. It will be the cause of the failure.
・VB terminal voltage may be 1V or less when remote control is off or output is stopped by
protection function.

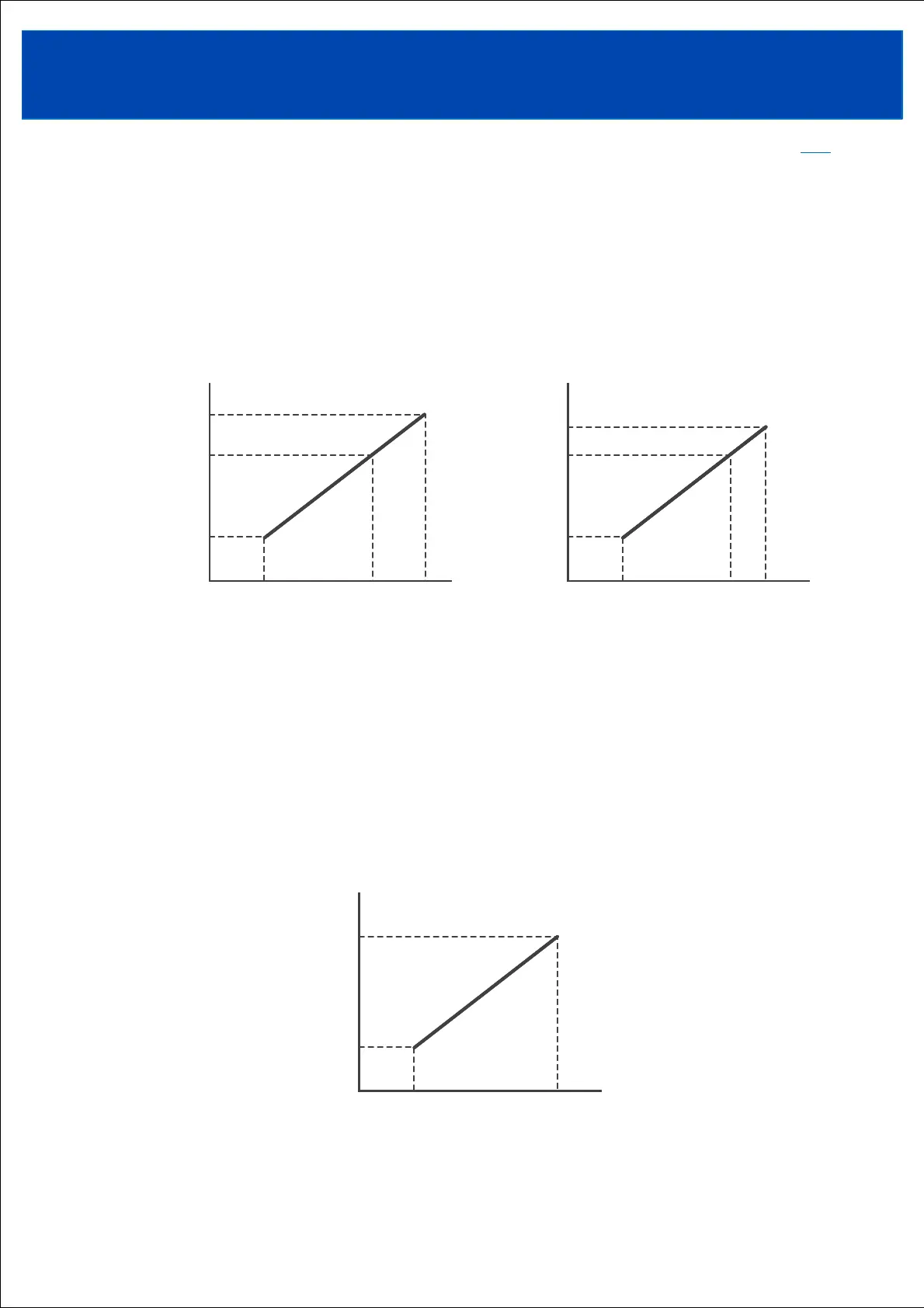

The relationship between VB terminal voltage and output voltage is as follows.
◆24V、130V
◆48V、60V
6-15. Output current monitor function
The output current can be monitored by measuring the voltage between the CB and AG terminals.
・Use a measuring device with an input impedance of 500kΩ or more
・Do not short-circuit between the CB terminal and AG terminal. It will be the cause of the failure.
・CB terminal voltage may be 1V or less when remote control is off or output is stopped by
protection function.
The relationship between CB terminal voltage and output current is as follows.
TOPTOP
5V
1V
VB Voltage
5.8V
0%
5V
1V
VB Voltage
5.8V
0%
Output Voltage
Maximun
Output
Voltage
Nominal
Output
Voltage
5V
1V
VB Voltage
5.8V
0%
Output Voltage
Maximun
Output
Voltage
Nominal
Output
Voltage
5V
Output Voltage
1V
VB Voltage
5.4V
0%
Output Voltage
1V
VB Voltage
5.4V
0%
5V
Output Voltage
1V
VB Voltage
5.4V
0%
Maximun
Output
Voltage
Nominal
Output
Voltage
5V
Output Voltage
1V
VB Voltage
5.4V
0%
Maximun
Output
Voltage
Nominal
Output
Voltage
Maximun
Output Current
5V
1V
CB Voltage
0%
5V
1V
CB Voltage
0%
Output Current
Maximun
Output Current
5V
1V
CB Voltage
0%
Output Current
