6-21. Withstand voltage
This series is designed to withstand 2.0kVAC between input and terminal (FG), 3.0kVAC between input
and output, 3.0kVAC between input and signal, AUX terminal,2.0kVAC between output and signal, AUX
terminal, 1.5kVAC between output and terminal (FG) and each for 1 minute.
In the withstand voltage tester, set current limit of the withstand voltage tester at 20mA.
The applied voltage must be gradually increased from zero to test value and then gradually decreased for
shut down.
When timer is used, the power supply might be damaged by high impulse voltage at switch on and off
timing. Connection as follows.

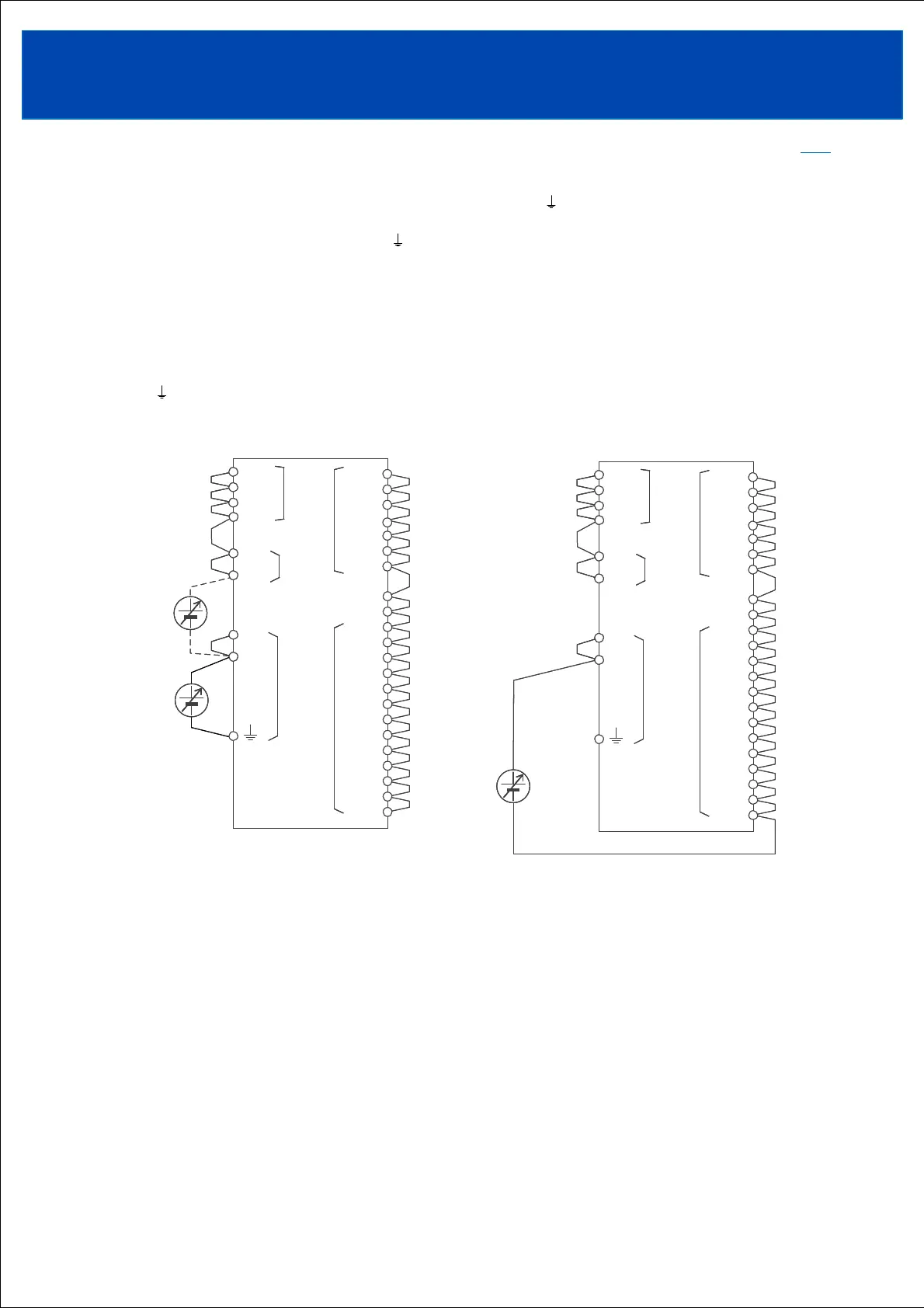

■ Input - terminal (solid line) : 2.0kVAC 1min (20mA)
Input - Output (dotted line) : 3.0kVAC 1min (20mA)
■ Input - Signal, AUX terminal : 3.0kVAC 1min (20mA)
