2.3.2 How to terminate
The following pictures show how the cable screen should be terminated to the ACU
chassis. This also holds the cable firmly in place while terminating the cable cores. If you
are not terminating the cable screen to the chassis, use a cable tie through the holes in
the chassis to hold the cable in place.

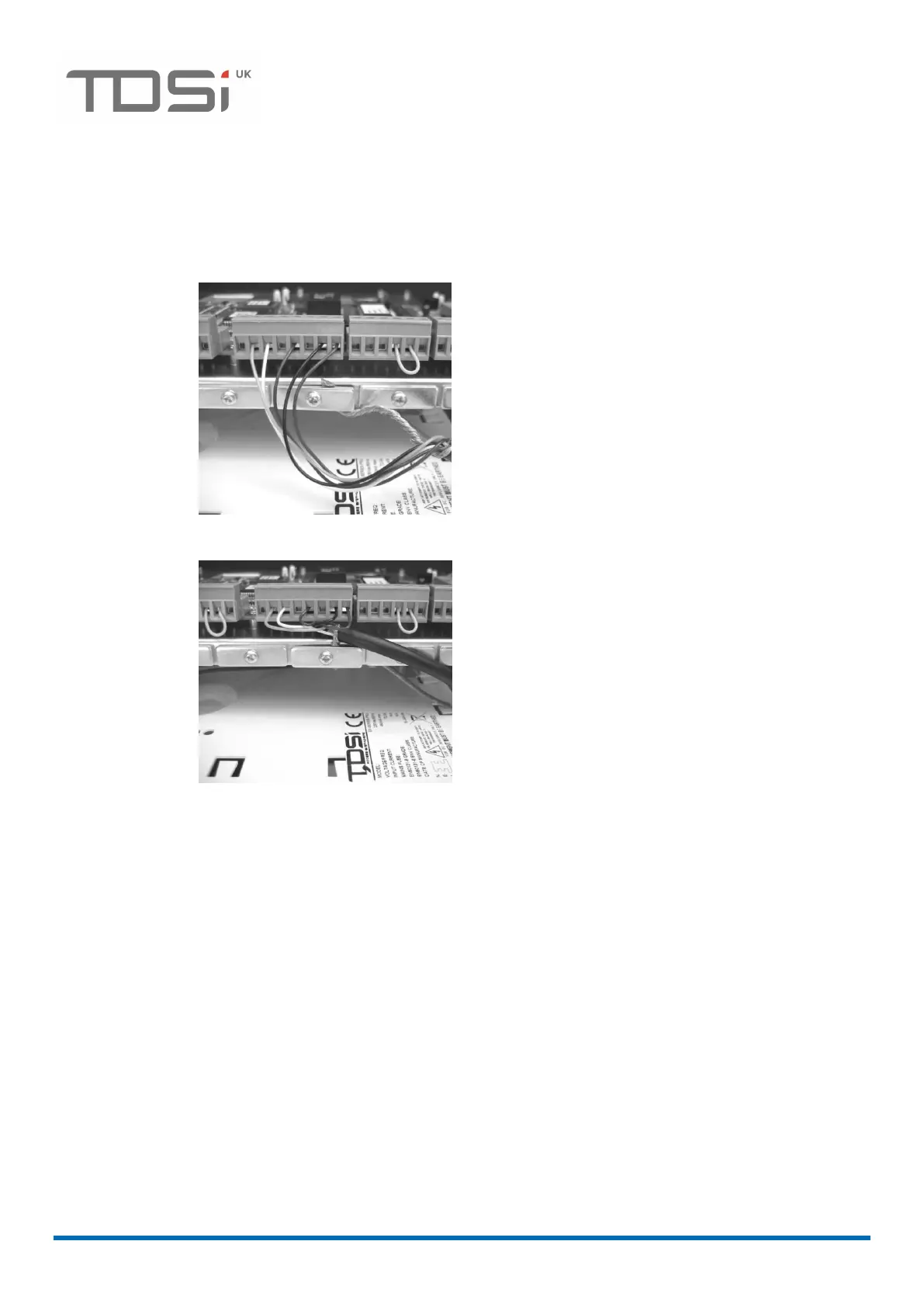

Figure 4 - Incorrect Screening Method (Tails Left Long)
Figure 5 - Correct Screening Method (Tails Kept Short)
