TDSi EXcel4 User Manual

EXcel4 Controller Page 2
1.1 Layout of EX-Series Access Control Units
The following diagram shows the layout of the EX series controller.
Please familiarise yourself with the layout of the product before attempting installation.

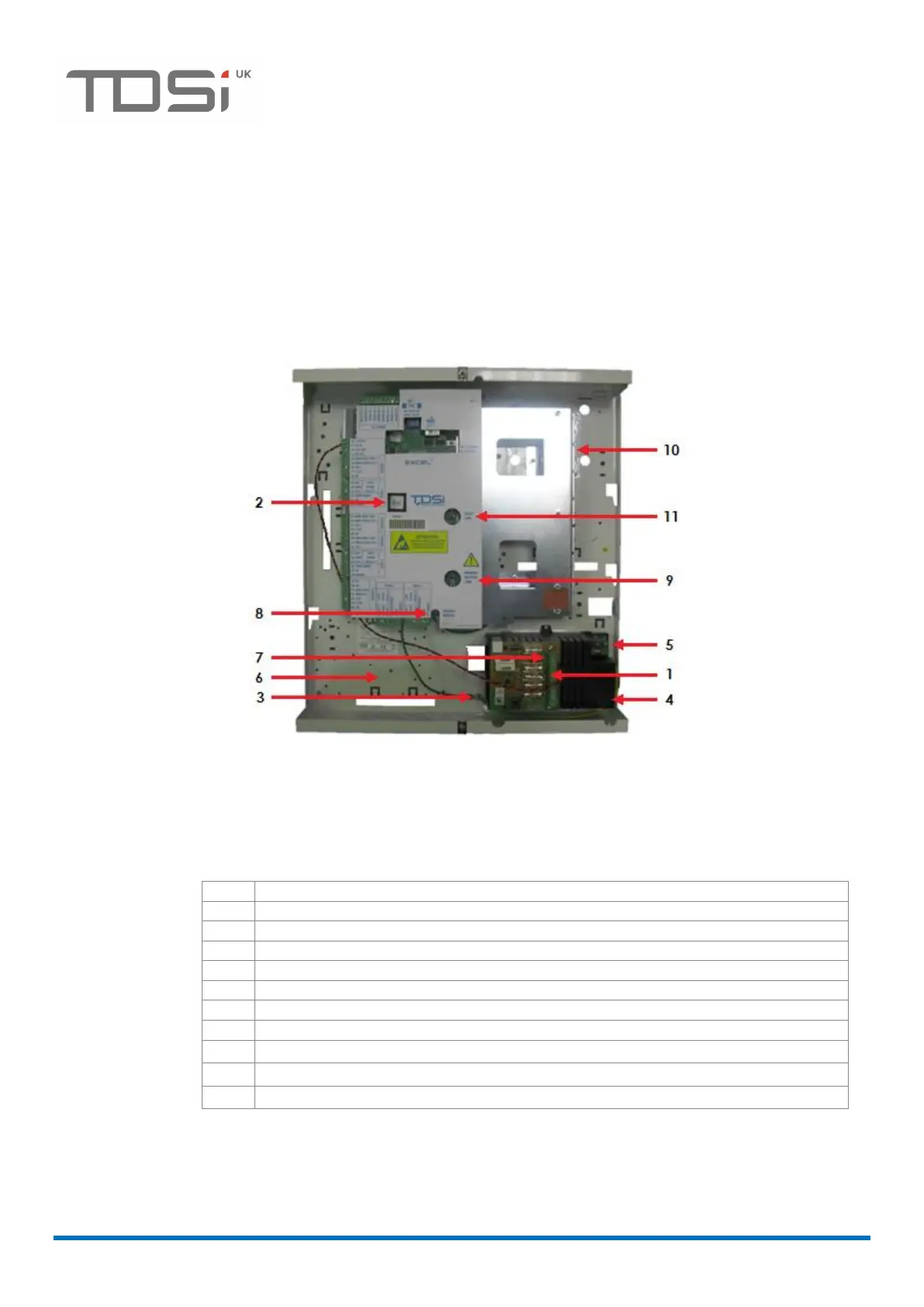

Figure 1 – EXcel
4
controller
1
Output Distribution Board and Fuses
2
Controller UID Numbers For EXcel
4
Number begins with 4 e.g. 4-xxx-xxx-xxx
3
Earth connection
4
Power Supply Unit
5
Fused Mains Terminal Block
6
Space For Standby Battery (not supplied)
7
Standby battery connection cables
8
Tamper Switch with Spring
9
Memory Battery Link
10
Cable Screen Braid Earthing Clamps
11
Reset Link
