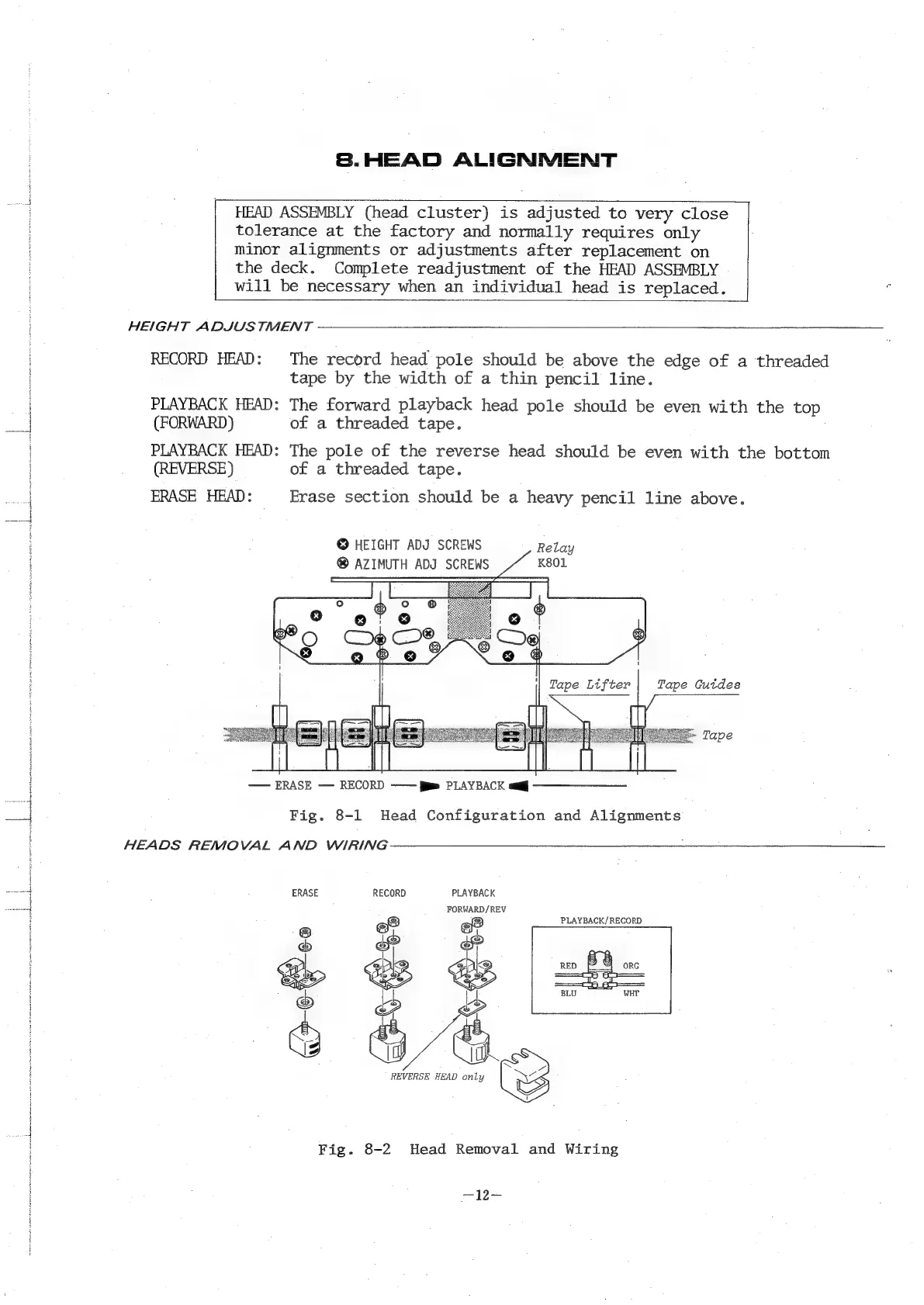

8S.HEAD ALIGNMENT
HEAD ASSEMBLY (head cluster) is adjusted to very close
tolerance at the factory and normally requires only
minor alignments or adjustments after replacement on
the deck. Complete readjustment of the HEAD ASSEMBLY
will be necessary when an individual head is replaced.
HEIGHT ADJUSTMENT
RECORD
HEAD:
The
record
head
pole
should
be
above
the
edge
of
a
threaded
tape by the width of a thin pencil line.
PLAYBACK
HEAD:
The
forward
playback
head
pole
should
be
even
with
the
top
(FORWARD)
of
a threaded
tape.
PLAYBACK HEAD: The pole of the reverse head should be even with the bottom
(REVERSE) of a threaded tape.
ERASE HEAD: Erase section should be a heavy pencil line above.
@ HEIGHT ADJ SCREWS Relay
@ AZIMUTH ADJ SCREWS
Fig. 8-1 Head Configuration and Alignments
HEADS REMOVAL AND WIRING
ERASE RECORD PLAYBACK
FORWARD/REV
PLAYBACK/RECORD
RED ORG
BLU WHT
>
REVERSE HEAD only we
Fig. 8-2 Head Removal and Wiring
