Teac A-5500 - Case Removal

S.PARTIAL DISASSEMBLY
NOTE: Disassembly is made easy by extensive use at subassembly construction.
Take care, however, to remember proper connections for re-assembling the deck.
CASE REMOVAL
Ls
Place face-down on a soft mat.
2. Remove the rear panel (6 screws).
An Pw
. Disconnect the cables interconnecting the Amplifier and Transport units.
. Remove the 2 Amplifier mounting screws marked "A" and "'B"',.
. Remove the 8 Transport mounting bolts.
. Lift the case off the two units.
\AAY
2. Amplifier
3. Wooden Case
: 4
Lj
;
i
acne

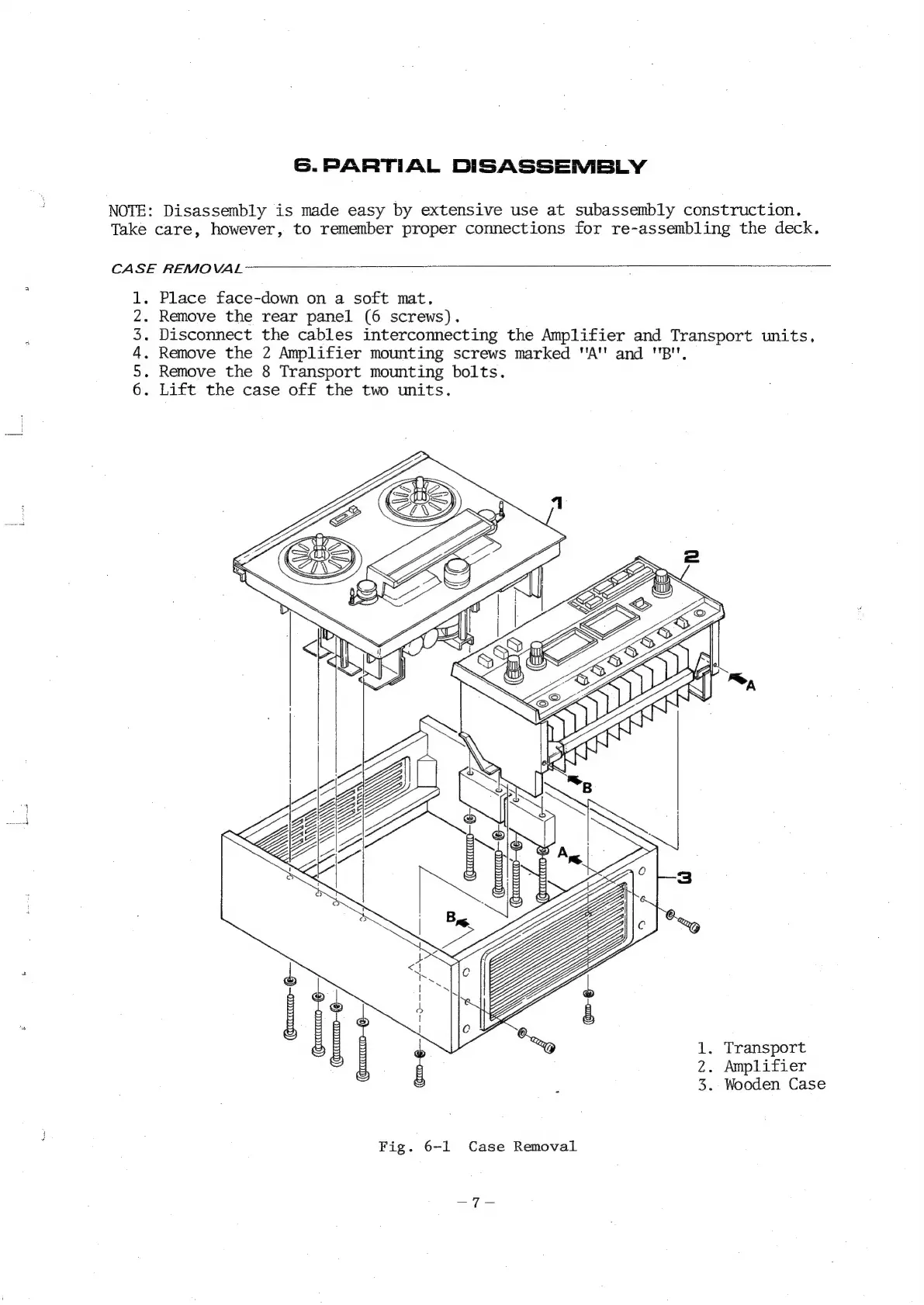

Fig. 6-1 Case Removal
