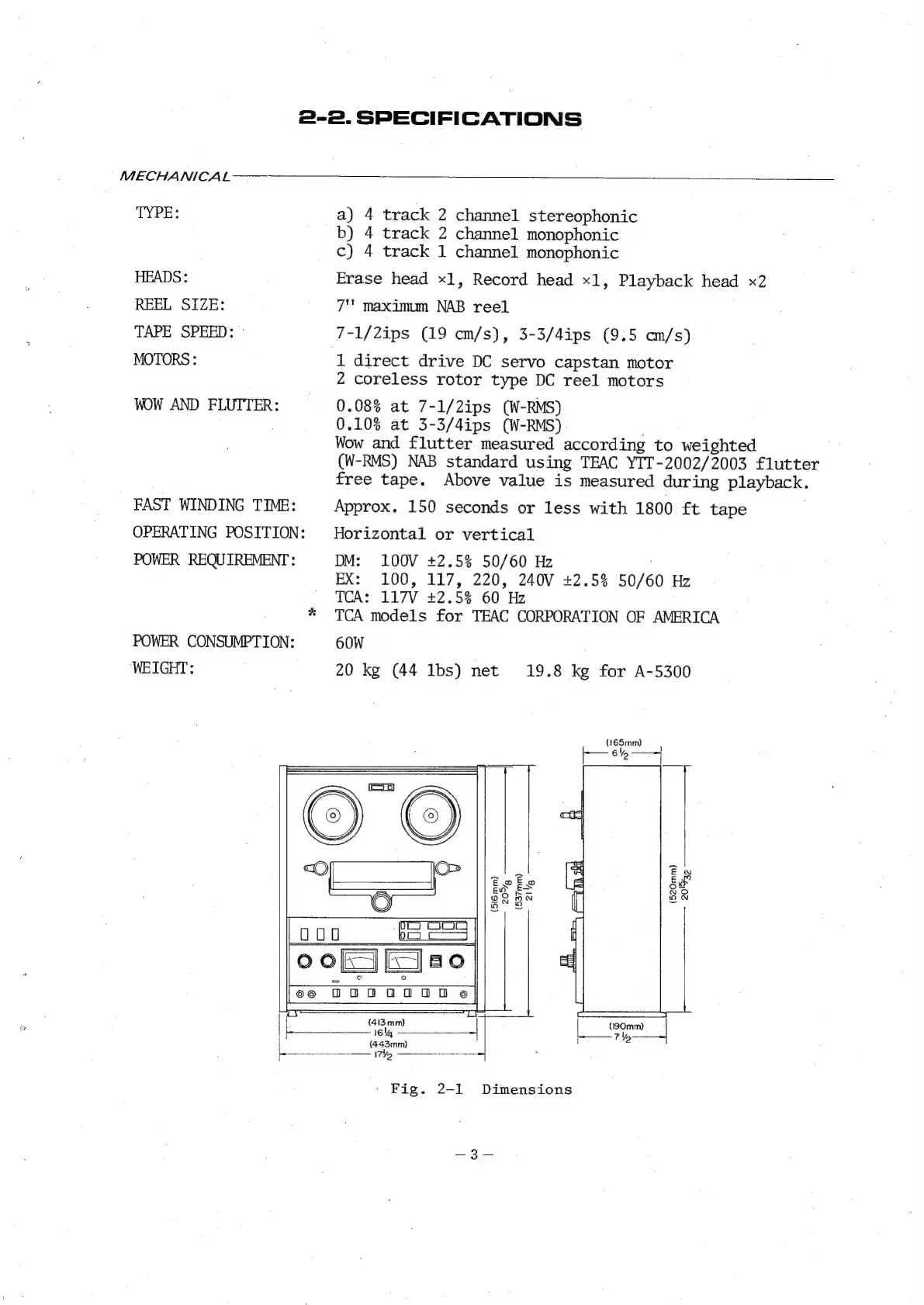

2-2. SPECIFICATIONS
MECHANICAL
TYPE:
HEADS:
REEL SIZE:
TAPE SPEED: °
MOTORS :
WOW AND FLUTTER:
FAST WINDING TIME:
OPERATING POSITION:
POWER REQUIREMENT :
POWER CONSUMPTION:
‘WEIGHT:
a) 4 track 2 channel stereophonic
b) 4 track 2 channel monophonic
c) 4 track 1 channel monophonic
Erase
head
x1,
Record
head
x1,
Playback
head
x2
7"
maximum
NAB
reel
7-1/2ips (19 cm/s), 3-3/4ips (9.5 cm/s)
1 direct drive DC servo capstan motor
2 coreless rotor type DC reel motors
0.08% at 7-1/2ips (W-RMS)
0.10% at 3-3/4ips (W-RMS)
Wow
and
flutter
measured
according
to
weighted
(W-RMS)
NAB
standard
using
TEAC
YTT-2002/2003
flutter
free
tape.
Above
value
is
measured
during
playback.
Approx.
150
seconds
or
less
with
1800
ft
tape
Horizontal
or
vertical
DM: lOOV +2.5% 50/60 Hz
EX: 100, 117, 220, 240V 42.5% 50/60 Hz
TCA: 117V +2.5% 60 Hz
TCA models for TEAC CORPORATION OF AMERICA
60W
20 kg (44 lbs) net 19.8 kg for A-5300
(165mm)
6 Yo
(520mm)
20!F30
(443mm)
(413 men)
|
(90mm)
1644
TY
17>
' Fig. 2-1 Dimensions
