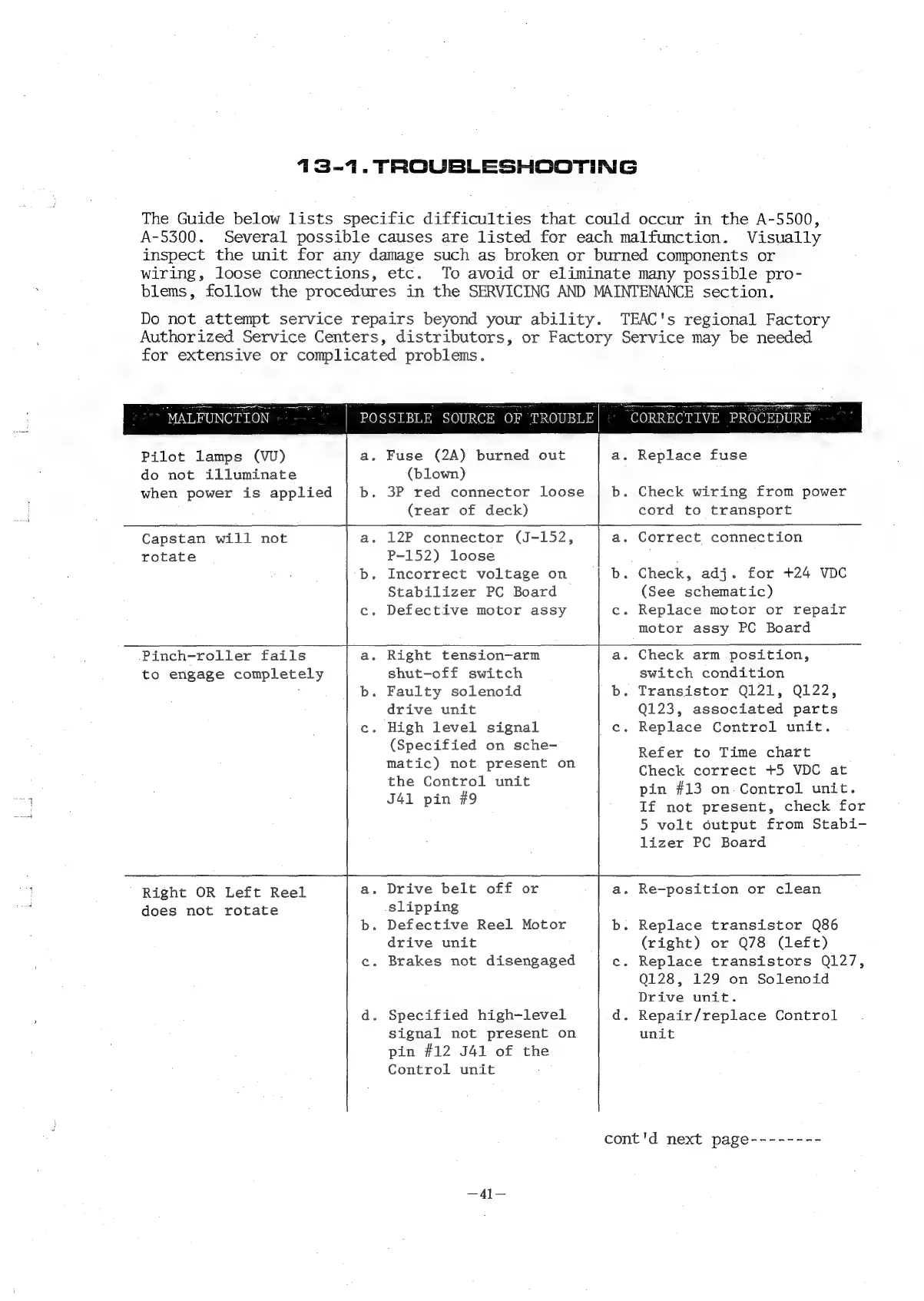

13-1. TROUBLESHOOTING
The Guide below lists specific difficulties that could occur in the A-5500,
A-5300.
Several possible causes are listed for each malfunction.
Visually
inspect the unit for any damage such as broken or burned components or
wiring, loose connections, etc.
To avoid or eliminate many possible pro-
blems, follow the procedures in the SERVICING AND MAINTENANCE section.
Do not attempt service repairs beyond your ability.
TEAC's regional Factory
Authorized Service Centers, distributors, or Factory Service may be needed
for extensive or complicated problems.
“MALFUNCTION
Pilot lamps (VU)
do not illuminate
when power is applied
a. Fuse (2A) burned out
(blown)
b. 3P red connector loose
(rear of deck)
| POSSIBLE SOURCE OF TROUBLE|
is
“CORRECTIVE PROCEDURE
a. Replace fuse
b. Check wiring from power
cord to transport
Capstan will not
rotate
I a. 12P connector (J-152,
P-152) loose
b. Incorrect voltage on
Stabilizer PC Board
c. Defective motor assy
a. Correct connection
b. Check, adj. for +24 VDC
(See schematic)
c. Replace motor or repair
motor assy PC Board
Pinch-roller fails a. Right tension-arm a. Check arm position,
to engage completely
shut-off switch
b. Faulty solenoid
drive unit
c. High level signal
(Specified on sche-
matic) not present on
the Control unit
J41 pin #9
switch condition
b. Transistor Q121, Q122,
Q123, associated parts
c. Replace Control unit.
Refer to Time chart
Check correct +5 VDC at
pin #13 on Control unit.
If not present, check for
5 volt output from Stabi-
lizer PC Board
Right OR Left Reel
does not rotate
a. Drive belt off or
slipping
b. Defective Reel Motor
drive unit
c. Brakes not disengaged
d. Specified high-level
signal not present on
pin #12 J41 of the
Control unit
a. Re-position or clean
b. Replace transistor Q86
(right) or Q78 (left)
c. Replace transistors Q127,
Q128, 129 on Solenoid
Drive unit.
d. Repair/replace Control
unit
cont'd
next
