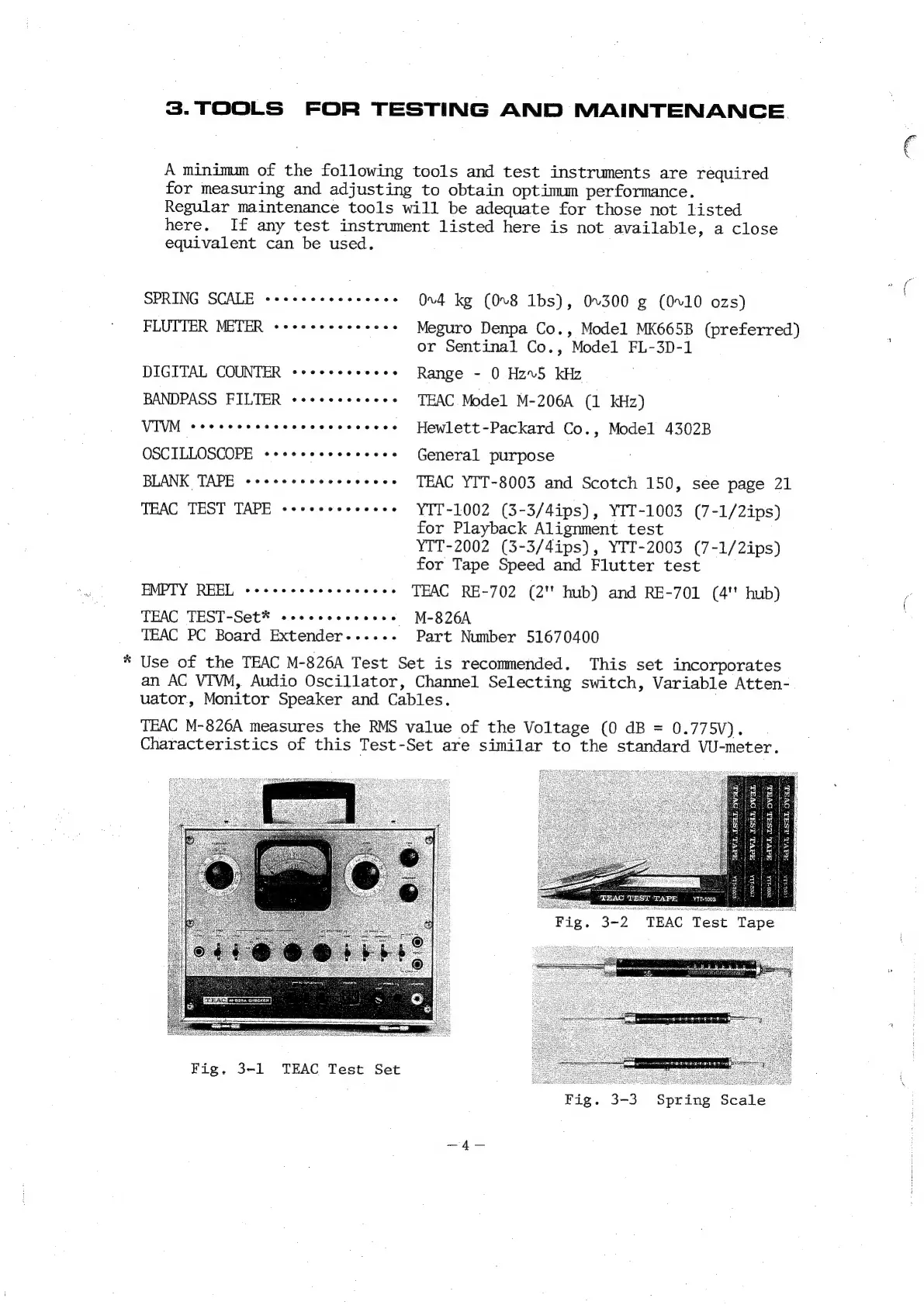

3.TOOLS
FOR
TESTING
AND
MAINTENANCE.
A
minimum
of
the
following
tools
and
test
instruments
are
required
for
measuring
and
adjusting
to
obtain
optimm
performance.
Regular
maintenance
tools
will
be
adequate
for
those
not
listed
here.
If
any
test
instrument
listed
here
is
not
available,
a
close
equivalent
can
be
used.
SPRING
SCALE
++++eeeeeeeeees
Ond
kg
(0X8
lbs),
0%300
g
(0010
ozs)
PLUITER
METER
++++++++++++++
Meguro
Denpa
Co.,
Model
MK665B
(preferred)
or
Sentinal
Co.,
Model
FL-3D-1
DIGITAL COUNTER s*++++++++++ Range - 0 Hz.5 kHz
BANDPASS FILTER ++++++++++*+* TEAC Model M-206A (1 kHz)
VIVM scccccccceeceseccescees Hewlett-Packard Co., Model 4302B
OSCILLOSCOPE +++++++eeeeeee+ General purpose
BLANK
TAPE
+++e+eeeseeeeeees
TEAC
YIT-8003
and
Scotch
150,
see
page
21
TEAC
TEST
TAPE
se+eeeeeesee6
YIT-1002
(3-3/4ips),
YIT-1003
(7-1/2ips)
for
Playback
Alignment
test
YTT-2002
(3-3/4ips),
YIT-2003
(7-1/2ips)
for
Tape Speed
and
Flutter
test
EMPTY
REEL
+++sseseeseeeeees
TEAC
RE-702
(2''
hub)
and
RE-701
(4''
hub)
TEAC TEST-Set* eaeteeveeveeese M-826A
TEAC PC Board Extender---.-- Part Number 51670400
Use
of
the
TEAC
M-826A
Test
Set
is
recommended.
This
set
incorporates
an
AC
VIVM,
Audio
Oscillator,
Channel
Selecting
switch,
Variable
Atten-
uator,
Monitor
Speaker
and
Cables.
TEAC
M-826A
measures
the
RMS
value
of
the
Voltage
(0
dB
=
0.775V).
Characteristics
of
this
Test-Set
are
similar
to
the
standard
VU-meter.
a |
a
Q
:
ce
;
B00zLLA
‘TEAC TEST "TAPE YT T1003.
cram
Fig. 3-2 TEAC Test Tape
Fig. 3-1 TEAC Test Set
Fig. 3-3 Spring Scale
