20 50
100
200
500
2K 5K
10K
«15K
20K
30K
SOK
|

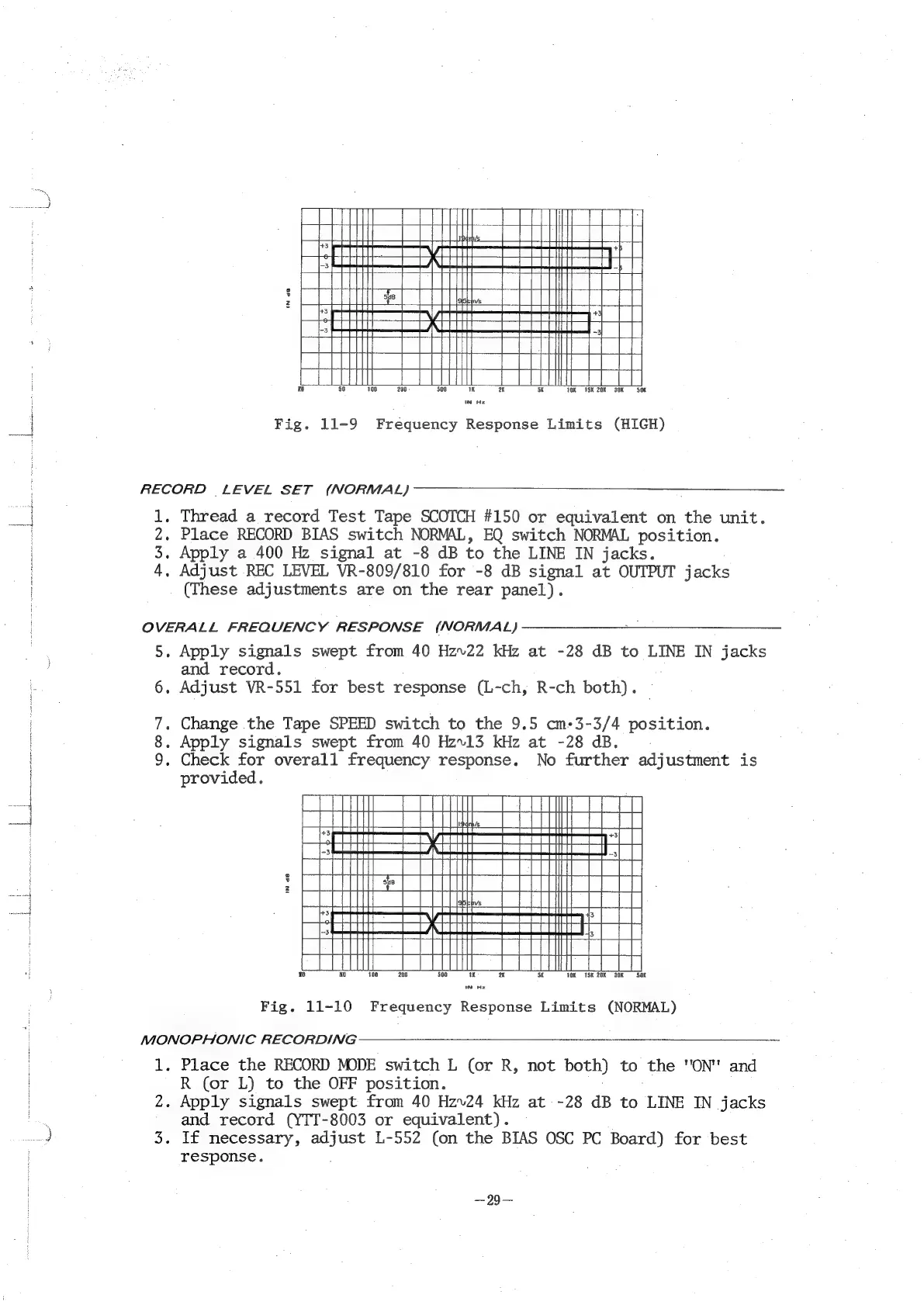

Fig.
11-9
Frequency
Response
Limits
(HIGH)
RECORD
LEVEL
SET
(NORMAL)
1.
Thread
a
record
Test
Tape
SCOTCH
#150
or
equivalent
on
the
unit.
2.
Place
RECORD
BIAS
switch
NORMAL,
EQ
switch
NORMAL
position.
3.
Apply
a
400
Hz
signal
at
-8
dB
to
the
LINE
IN
jacks.
4,
Adjust
REC
LEVEL
VR-809/810
for
-8
dB
signal
at
OUTPUT
jacks
(These
adjustments
are
on
the
rear
panel).
OVERALL
FREQUENCY
RESPONSE
(NORMAL)
S.
Apply
signals
swept
from
40
Hzv22
kHz
at
-28
dB
to
LINE
IN
jacks
and
record.
6.
Adjust
VR-551
for
best
response
(L-ch,
R-ch
both).
|
7.
Change
the
Tape
SPEED
switch
to
the
9.5
cm-+3-3/4
position.
|
8.
Apply
signals
swept
from
40
Hz.13
kHz
at
-28
dB.
9.
Check
for
overall
frequency
response.
No
further
adjustment
is
provided.
HIT
mI
+3
+3
3
3
20 50
106
200
500
mn
aK
aK
10K
15K
20K
30K
SOK
In
Hz
Fig.
11-10
Frequency
Response
Limits
(NORMAL)
MONOPHONIC
RECORDING
1.
Place
the
RECORD
MODE
switch
L
(or
R,
not
both)
to
the
"ON"
and
|
R
(or
L)
to
the
OFF
position.
2.
Apply
signals
swept
from
40
Hzv24
kHz
at
-28
dB
to
LINE
IN
jacks
To,
and
record
(YTT-8003
or
equivalent).
4
3.
If
necessary,
adjust
L-552
(on
the
BIAS
OSC
PC
Board)
for
best
response.
