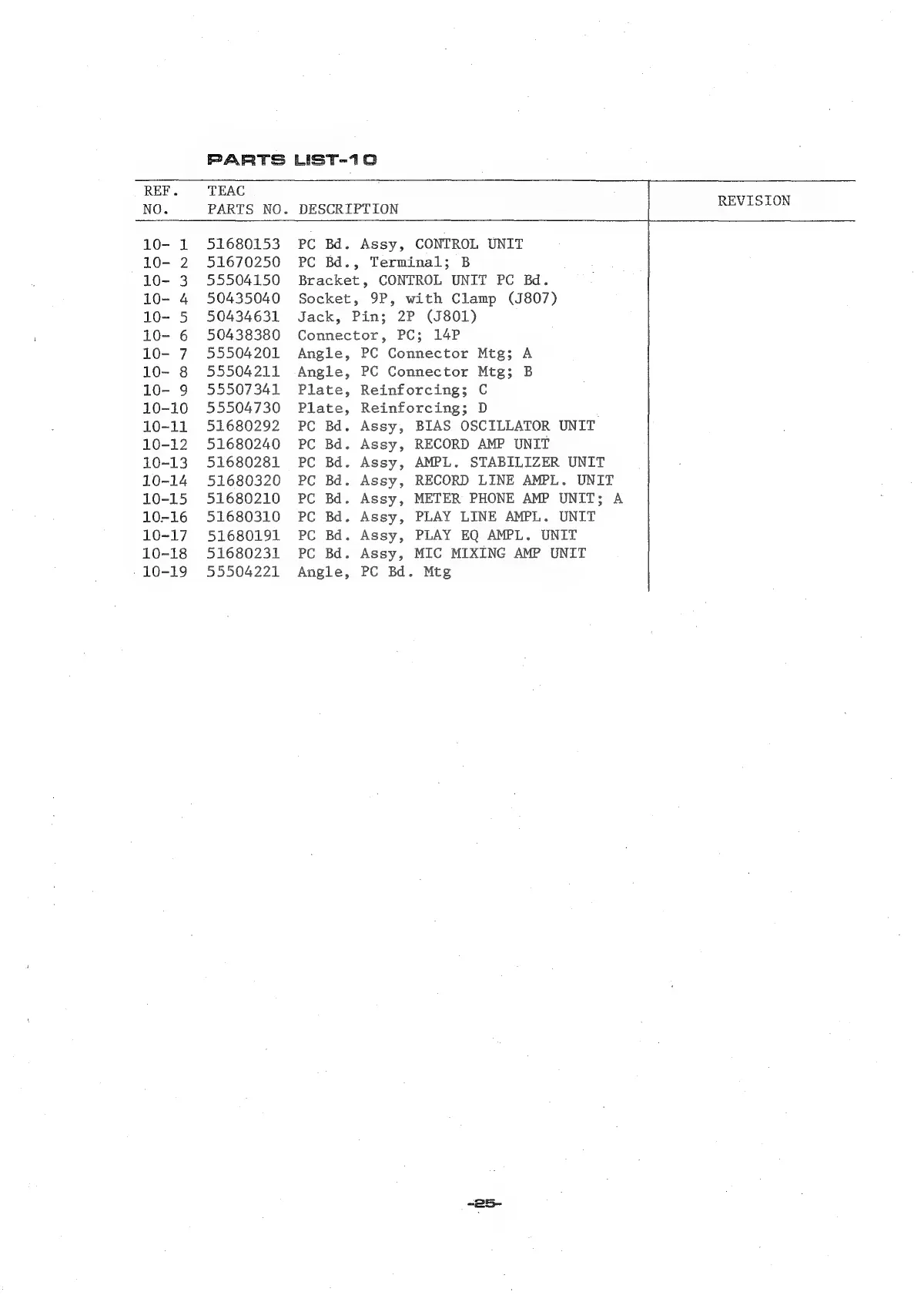

PARTS LiST-10
REF. TEAC
NO. PARTS NO. DESCRIPTION
10- 1 51680153 PC Bd. Assy, CONTROL UNIT
10- 2 51670250 PC Bd., Terminal; B
10- 3 55504150 Bracket, CONTROL UNIT PC Bd.
10- 4 50435040 Socket, 9P, with Clamp (J807)
10- 5 50434631 Jack, Pin; 2P (J801)
10- 6 50438380 Connector, PC; 14P
10- 7 55504201 Angle, PC Connector Mtg; A
10- 8 55504211 Angle, PC Connector Mtg; B
10- 9 55507341 Plate, Reinforcing; C
10-10 55504730 Plate, Reinforcing; D
10-11 51680292 PC Bd. Assy, BIAS OSCILLATOR UNIT
10-12 51680240 PC Bd. Assy, RECORD AMP UNIT
10-13 51680281 PC Bd. Assy, AMPL. STABILIZER UNIT
10-14 51680320 PC Bd. Assy, RECORD LINE AMPL. UNIT
10-15 51680210 PC Bd. Assy, METER PHONE AMP UNIT; A
10-16 51680310 PC Bd. Assy, PLAY LINE AMPL. UNIT
10-17 51680191 PC Bd. Assy, PLAY EQ AMPL. UNIT
10-18 51680231 PC Bd. Assy, MIC MIXING AMP UNIT
10-19 55504221 Angle, PC Bd. Mtg
