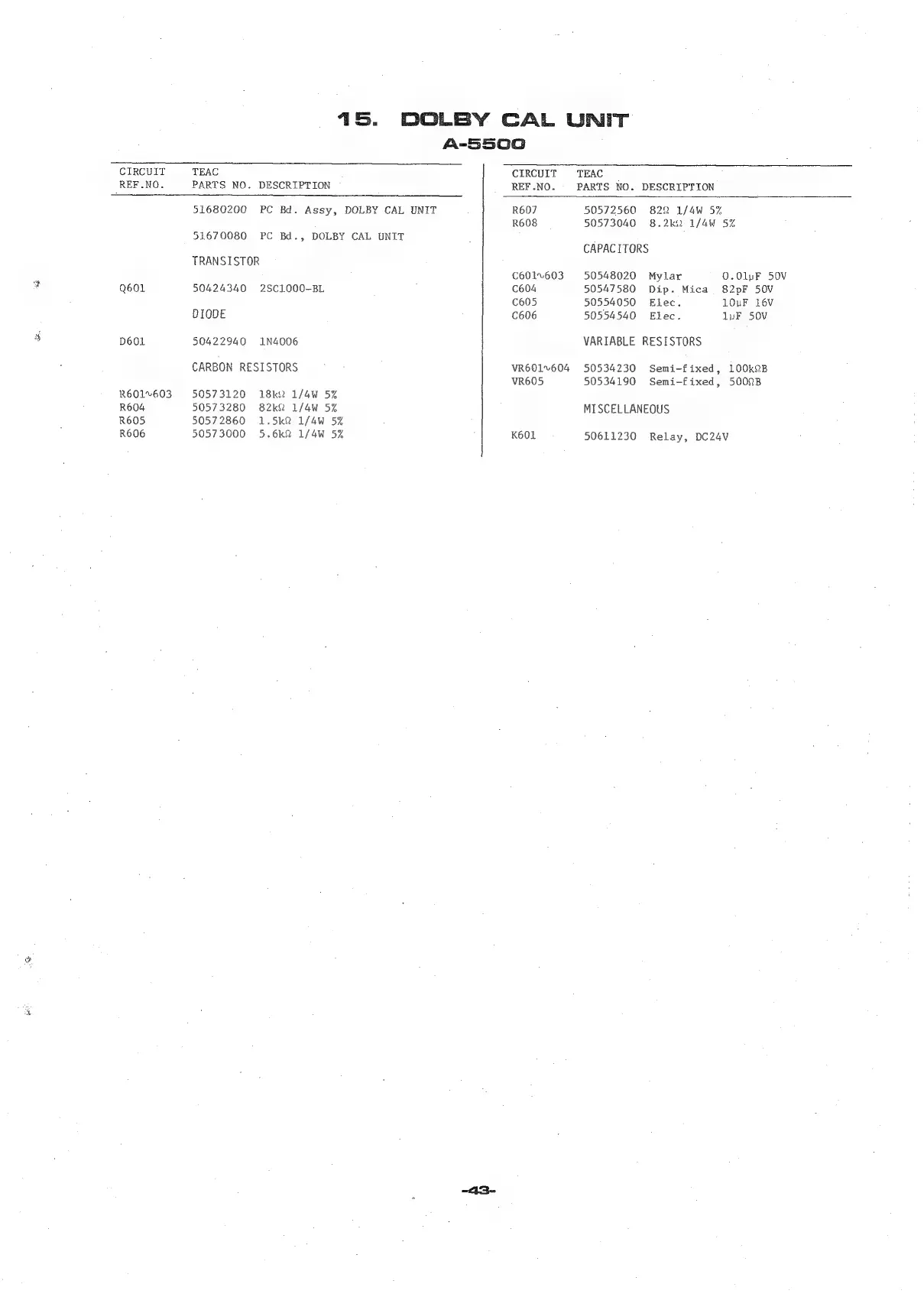

15. DOLBY CAL UNIT
A-5500
CIRCUIT TEAC CIRCUIT TEAC
REF.NO. PARTS NO. DESCRIPTION REF.NO. PARTS NO. DESCRIPTION
51680200 PC Bd. Assy, DOLBY CAL UNIT R607 50572560 822 1/4W 5%
R608 50573040 8.2k2 1/4W 5%
51670080 PC Bd., DOLBY CAL UNIT
CAPACITORS
TRANSISTOR
C601.603 50548020 Mylar 0.01yF 50V
Q601 50424340 2SC1000-BL C604 50547580 Dip. Mica 82pF 50V
C605 50554050 Elec. 10uF 16V
DIODE C606 50554540 Elec. 1nF 50V
D601 50422940 1N4006 VARIABLE RESISTORS
CARBON RESISTORS VR601°604 50534230 Semi-fixed, 1LOOKNB
VR605 50534190 Semi-fixed, 5009B
R601%603 50573120 18ks 1/4W 5%
R604 50573280 82k2 1/4W 5% MISCELLANEQUS
R605 50572860 1.5k2 1/4W 5%
R606
50573000
5.6k&
1/4W
5%
K601
50611230
Relay,
DC24V
