Teac LCDV2257DVR User Manual

6
View of Unit

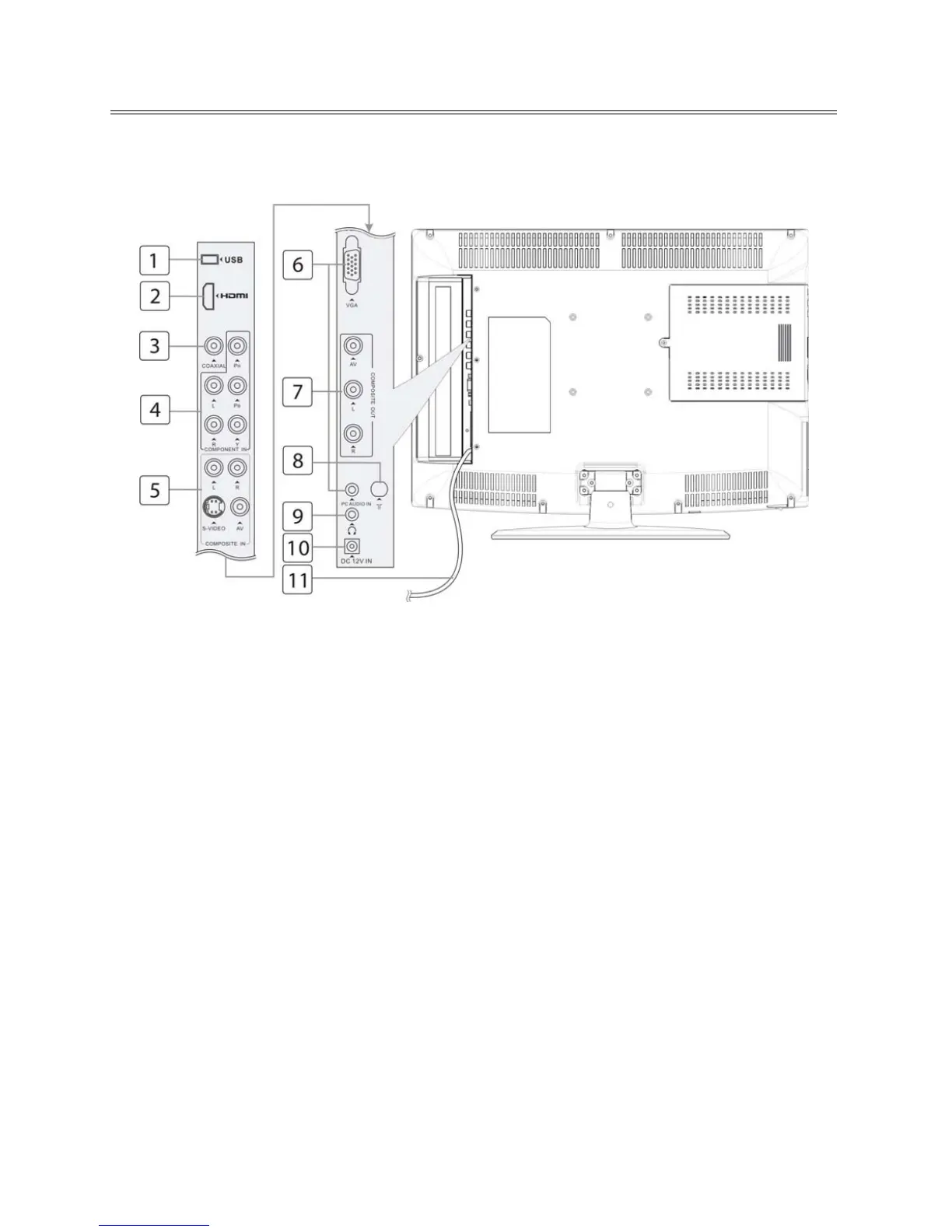

Rear Panel
1. USB port
Connect the USB device for DVR
record/playback and software upgrade.
2. HDMI Input Jack
Connect the HDMI signal source.
3. COAXIAL Output Jack
Output the coaxial digital audio signal.
4. Y/Pb/Pr (Component) and L/R audio Input
Jacks
Connect the Y/Pb/Pr (Component) signal
source in Component mode.
5. COMPOSITE/S-VIDEO Input Jacks
Connect Composite/S-Video signal source in
Composite or S-Video mode. Composite and
S-Video share L/R audio jacks.
6. VGA Input Jack
Connect the VGA signal source in VGA mode.
7. Composite AV Output Jacks
Connect to output the audio/video signals in
Composite mode.
8. TV antenna Input Jack
Connect the external TV antenna signal
source.
9. Earphone Jack
When connected to earphone, the internal
speakers will automatically turn off.
10. DC 12V IN Jack
Connect the power adapter.
11. Power Supply Cord
