INSTRUCTION MANUAL
7

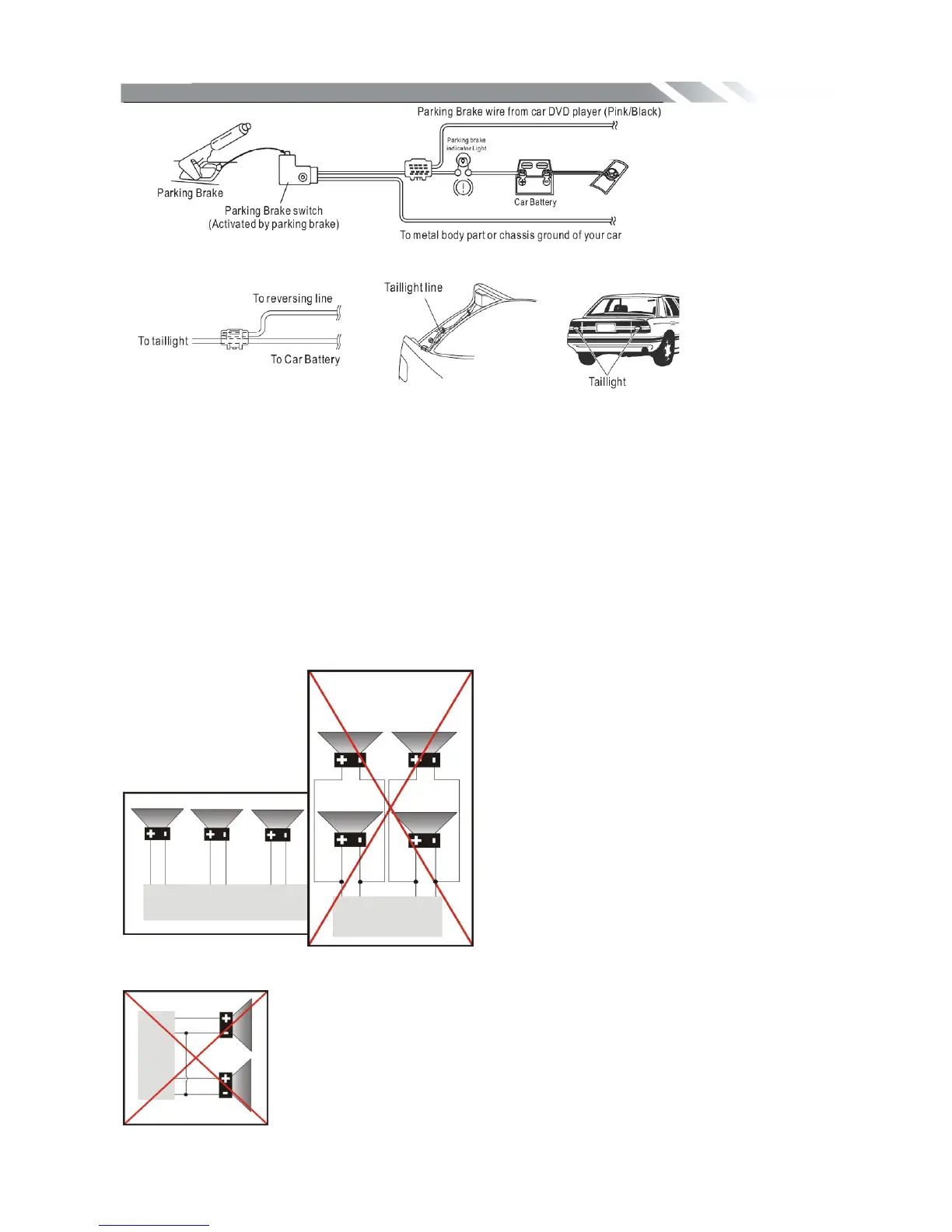

Connecting the reversing line to taillight on the car
After connecting, when you start up the reverse gear, the unit will receive the picture from
car rear view camera.
Note:
- Only use groundless loudspeakers.
- Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging
your loudspeakers at higher volumes.
- Use 4~8  (Ohm impedance) loudspeakers only; using higher or lesser impedance
may damage the unit.
- Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the
car body (GND). The unit is using a BTL circuit and each loudspeaker must be
connected with insulated cables according the diagram.
- Loudspeaker cables and/or optional external power amplifiers must always be about
30cm away from the antenna and/or antenna extension parts.
Connect the speakers according the following diagram, incorrect connections will damage
the unit or your loudspeakers
Correct connection
Left front - Right front | Left rear - Right rear
Incorrect connections
