Technalogix TP1000 - Output Program Configuration

20

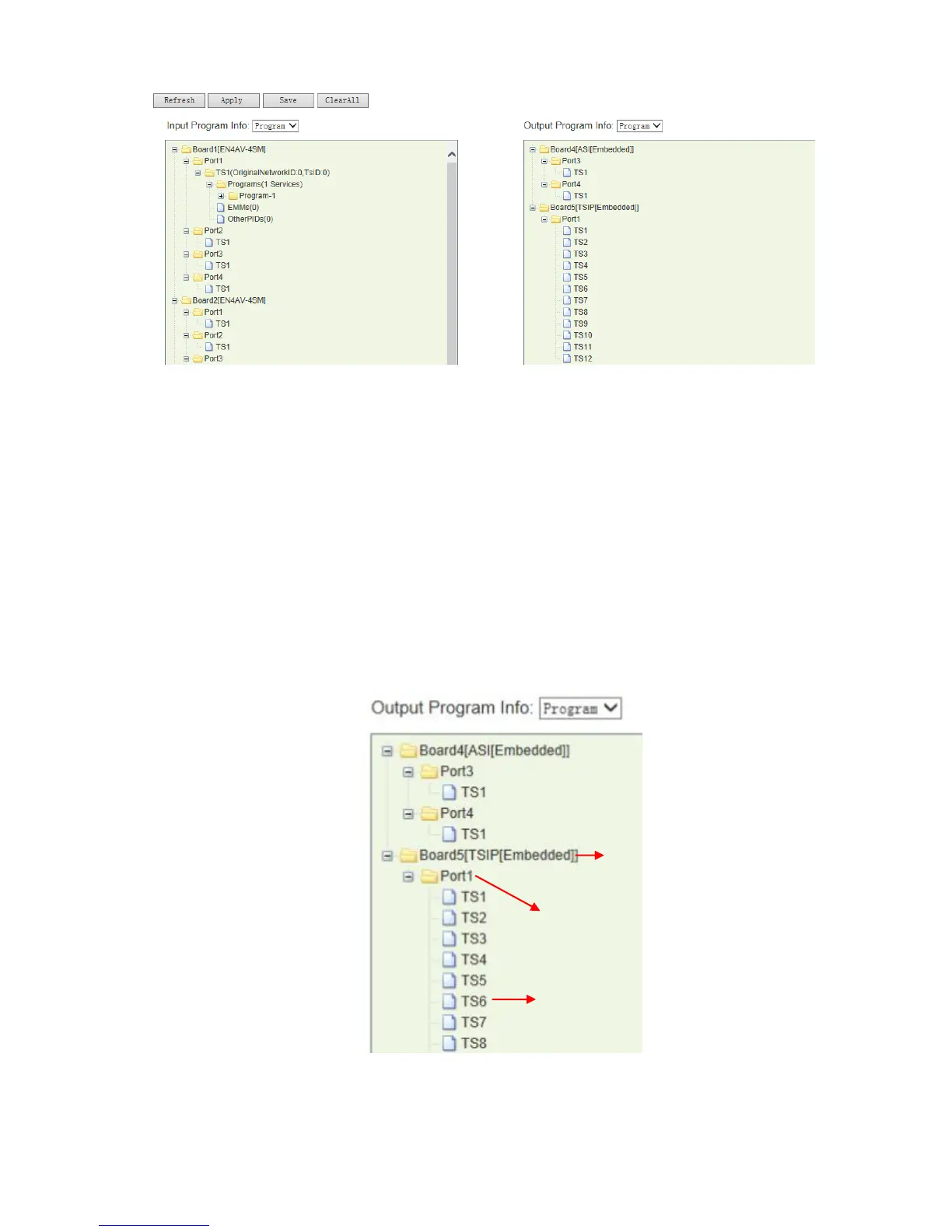

Pic-3.1-5
② Output Program Configuration:
In the “Output Program Configuration” window, it shows the inserted module which can be
set to transmit output stream. These kinds of modules include the Gigabit IP module, ASI
module, 8-QAM and 4-OFDM module, etc.
 In the “Output Program Info” window, it shows the inserted module which can be set to
transmit output stream. These kinds of modules include the Gigabit IP module, ASI module,
8-QAM and 4-OFDM module, etc. The operations on these modules are all the same.
Pic-3.1-6
Name of the module
The port number
depends on the Physical
interface of the module
The TS number depends on
the channel output capability
of the module
