 Status
Go to “Status” tab and click sub-tab “HD-Encoder_SDI”. The parameters of this part are derived
from the input signal; they will be gotten automatically when the input signal is available, and
cannot be changed by the user.

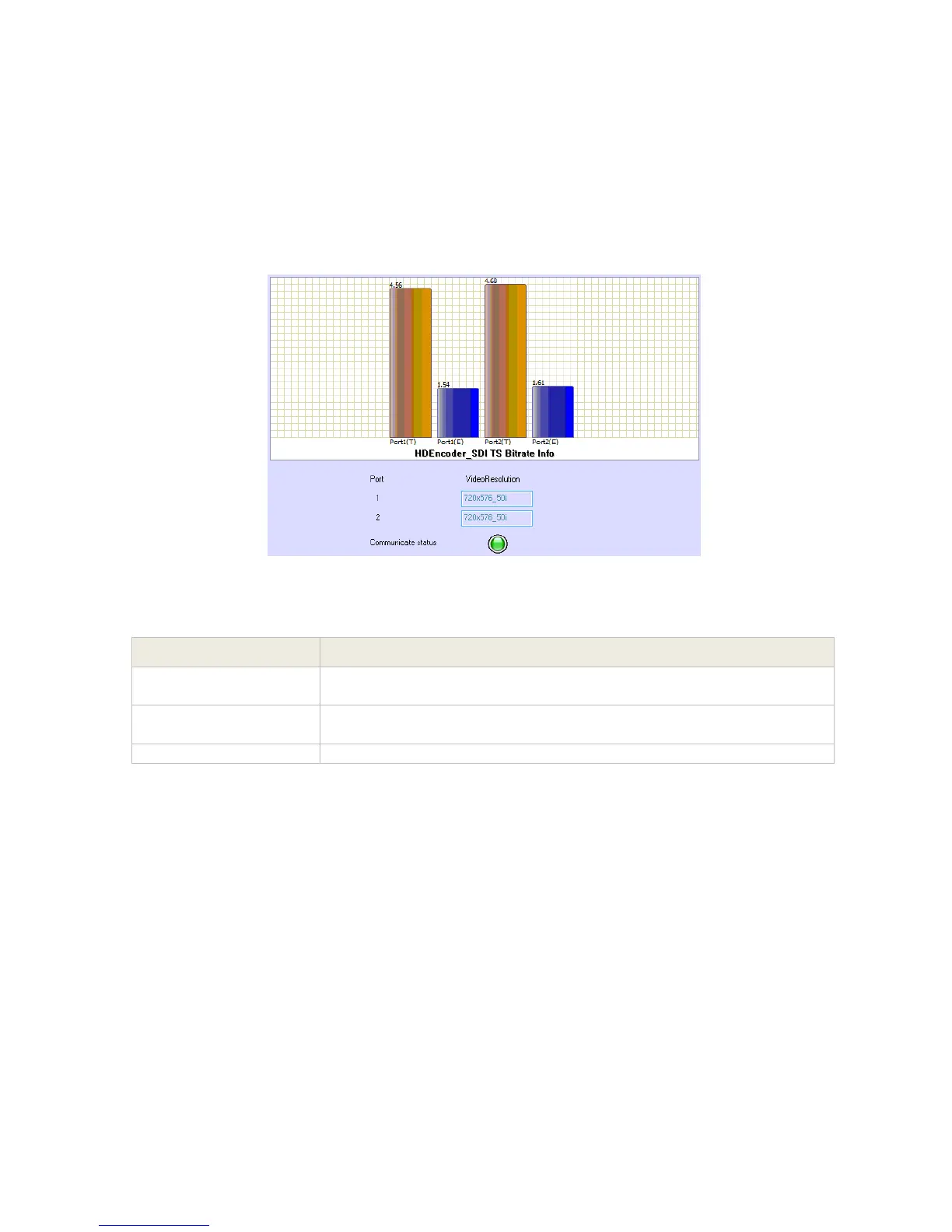

Pic-3.1-46
3.1.4.9 SD MPEG2 SDI/AV Encoder Module
The 2-SD MPEG2 SDI/AV Encoder Module supports encoding 2 SDI channels or 2 AV
channels simultaneously.
Parameters
Description
Port#(T)
Indicates the total bit rate of input signal, including the valid and null
packet. The unit is Mbps
Port#(E)
Indicates the bit rate of valid packet (excluding the null packet). The
unit is Mbps.
VideoResolution
the resolution of input video
