Technaxx TX-23 User Manual

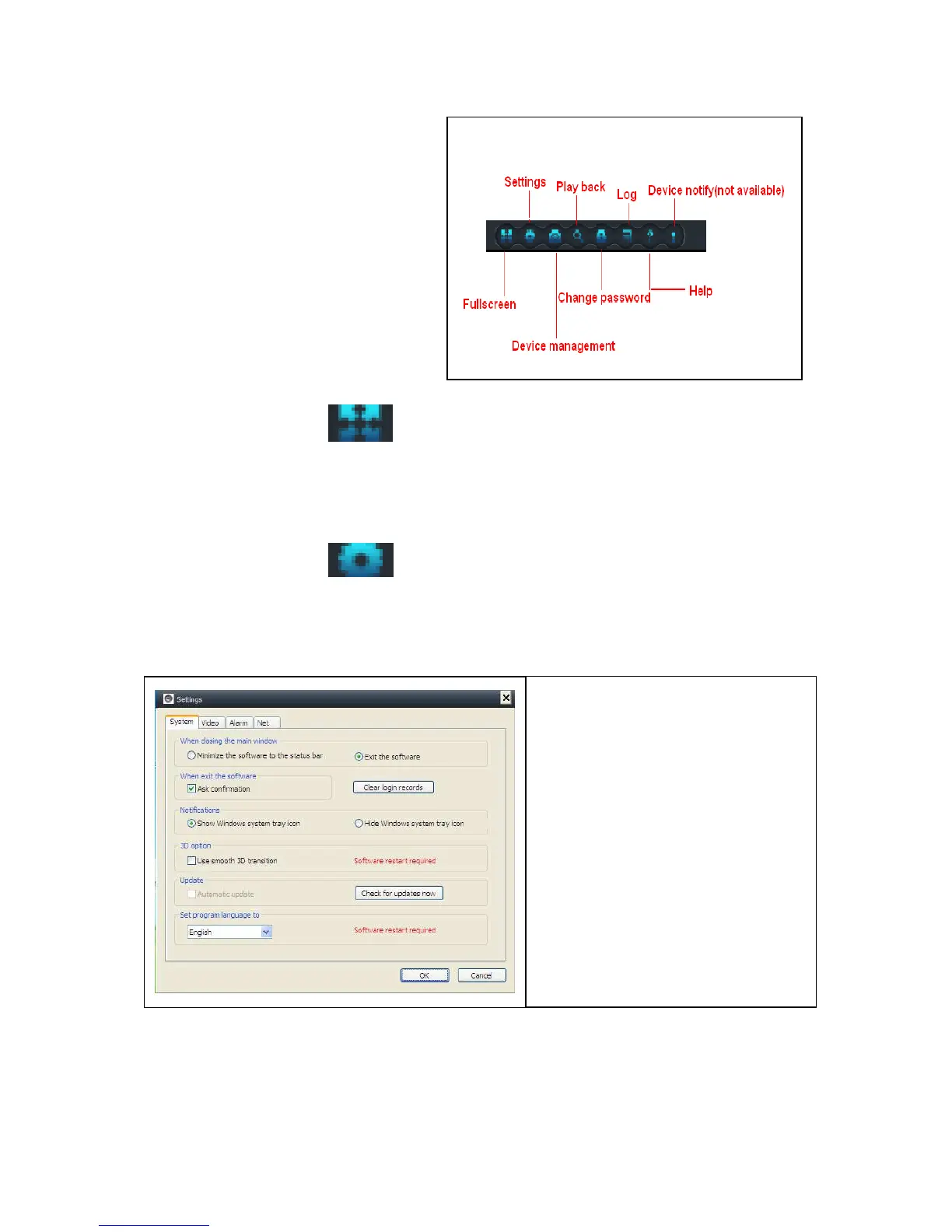

7. Settings on the Main Menu
Settings
Play back
Log
Device notify (not available)
Fullscreen
Device Management
Change password
Help
7.1. Full Screen
Live video in software will be in Full screen after click button “Full screen”. To exit the
Full screen please click the button in the screen top right hand corner or “Esc” in the
keyboard.
7.2. Settings
In “Settings”, user can do the setting for System, Video, Local Alarm Alerts and Net.
7.2.1. System
User can do the setting for “When
closing the main window”, “Exit
software”, “Notification”, “3D
option”, “System Upgrade” and
“Set program languages” by this
page.
Remind to use “3D option” and
“Set program languages to” will
only be activated after restart the
software.

Technaxx TX-23 Specifications

General

Type	IP security camera
PTZ control	No
Alarm input/output	Yes
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black
Maximum resolution	- pixels
Supported video modes	-
Video formats supported	M-JPEG
Angle of rotation	355 °
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
LED type	IR
Night vision distance	10 m
Number of illumination LEDs	10
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP / IP
Ethernet LAN (RJ-45) ports	1
Audio formats supported	ADPCM
DC output current	2 A
Power consumption (typical)	4 W
Operating temperature (T-T)	-5 - 55 °C
Minimum RAM	1024 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	100 mm
Height	130 mm
Weight	282 g
