Technaxx TX-23 User Manual

2. Software Installation and Commissioning
Windows Requirements: WIN 7, WIN 8, Win 8.1, Windows XP, Windows Vista
Hardware Requirements
 1GB RAM and 2 Core CPU for 1 camera at 1 time
 2GB RAM and i3 or updated processor for 4 cameras at 1 time
 REMARKS: No matter how many cameras you’d like to connect, this software has
no requirement for GPU (Graphic Processing Unit)
Insert the software CD into the PC drive (or download the software under:
http://www.technaxx.de/support/index.php?cat=29&pro=4320)

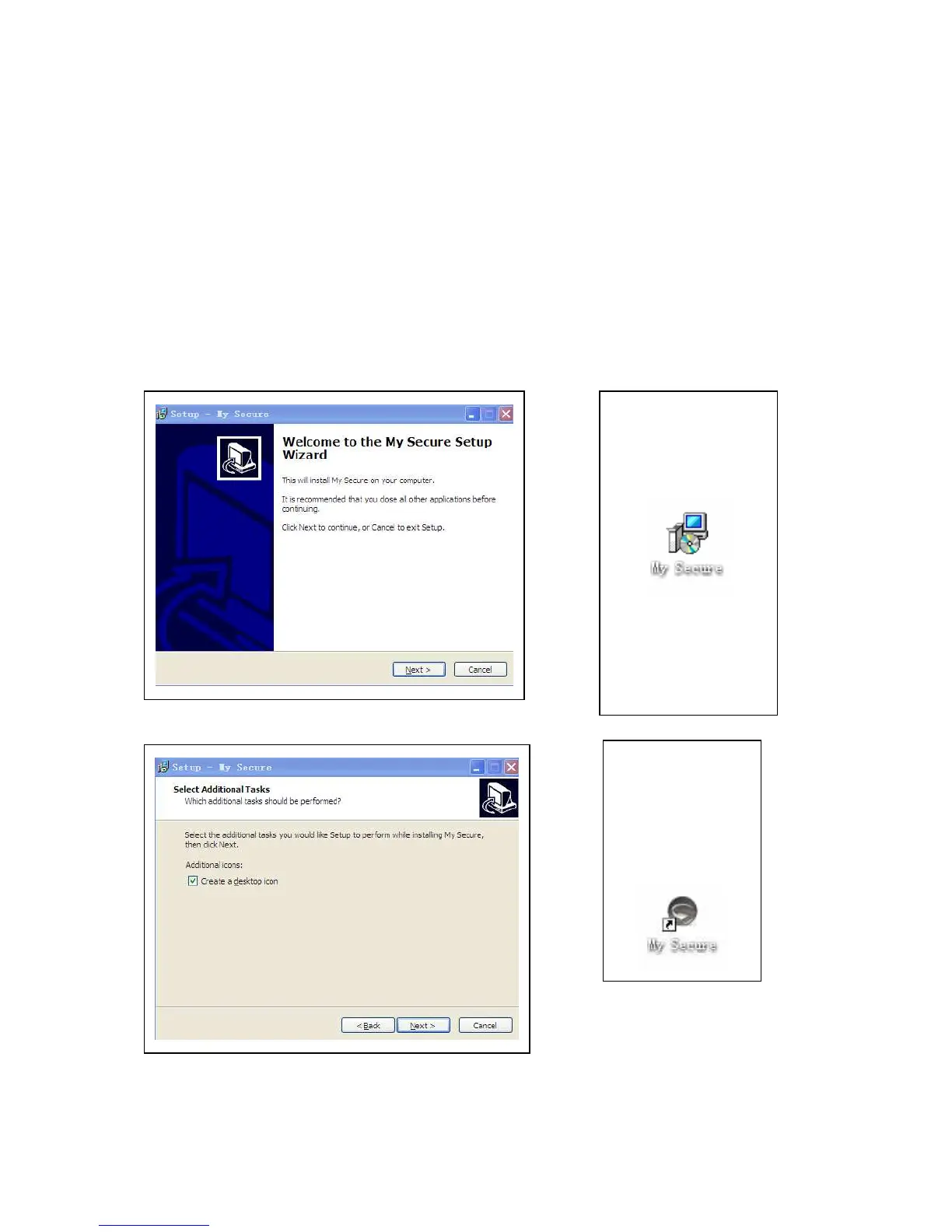

Opening the CD
and start the
program "My
Secure.exe"
Continue click
“Next“ until the
following steps
were finished.
After installation
finished, click
below icon “My
Secure” to run
the software as
shown.

Technaxx TX-23 Specifications

General

Type	IP security camera
PTZ control	No
Alarm input/output	Yes
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black
Maximum resolution	- pixels
Supported video modes	-
Video formats supported	M-JPEG
Angle of rotation	355 °
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
LED type	IR
Night vision distance	10 m
Number of illumination LEDs	10
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP / IP
Ethernet LAN (RJ-45) ports	1
Audio formats supported	ADPCM
DC output current	2 A
Power consumption (typical)	4 W
Operating temperature (T-T)	-5 - 55 °C
Minimum RAM	1024 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	110 mm
Width	100 mm
Height	130 mm
Weight	282 g
