2. Set the Amplifier Type to its respective application followed by the Diplexer Type and the upper equaliser hinge
point, End Frequency.
Once these values are set in the application, click on Send to amp to set these values electronically.

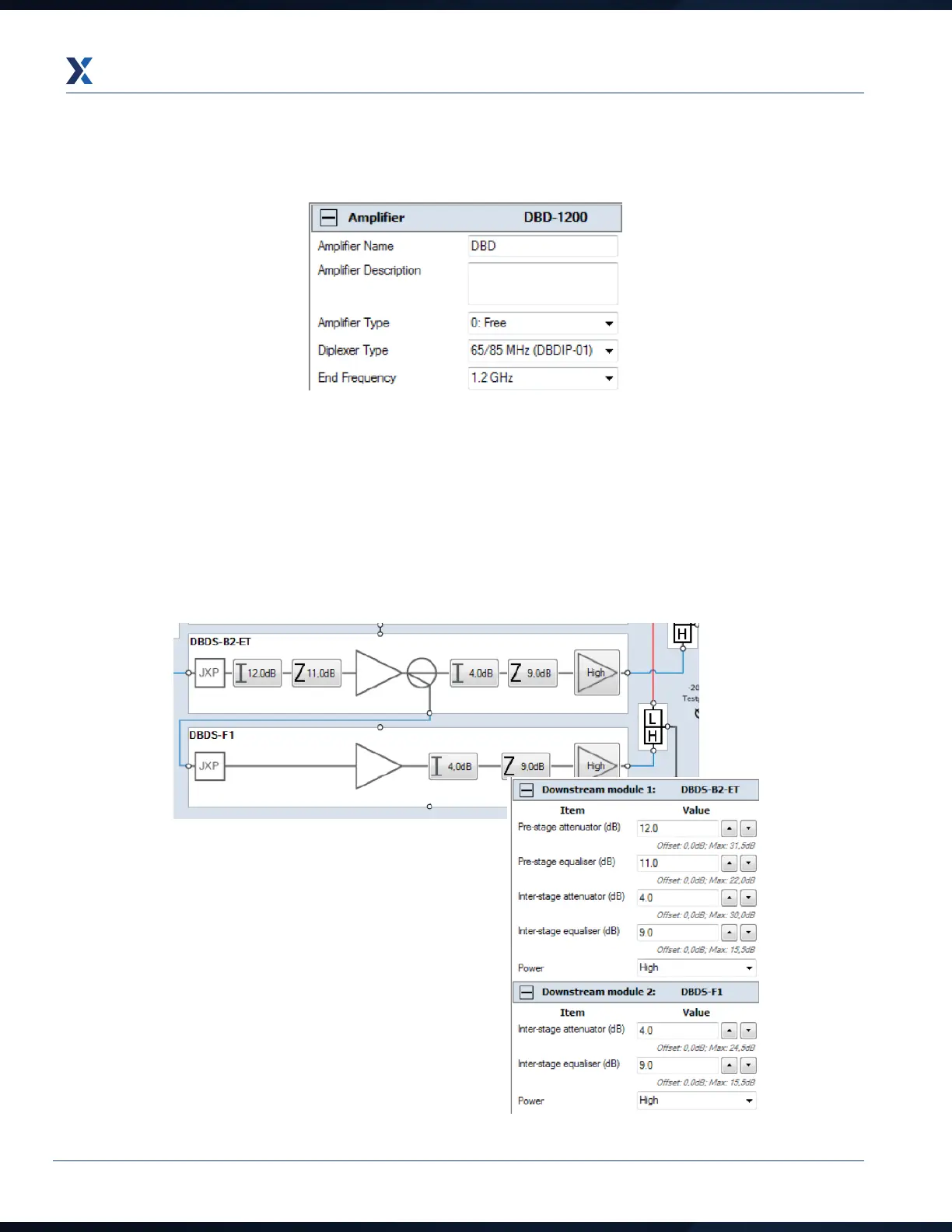

3. The downstream Inter-stage equaliser and Inter-stage attenuator can be set as required by the network/system
design documentation in two ways. You can set them in the amplifier schematic inter-stage tabs or in the table to
the right of the application screen (see the screen shot below). Once the values are set in the application, click on
Send to amp to set these values electronically.
