DBE-1200S

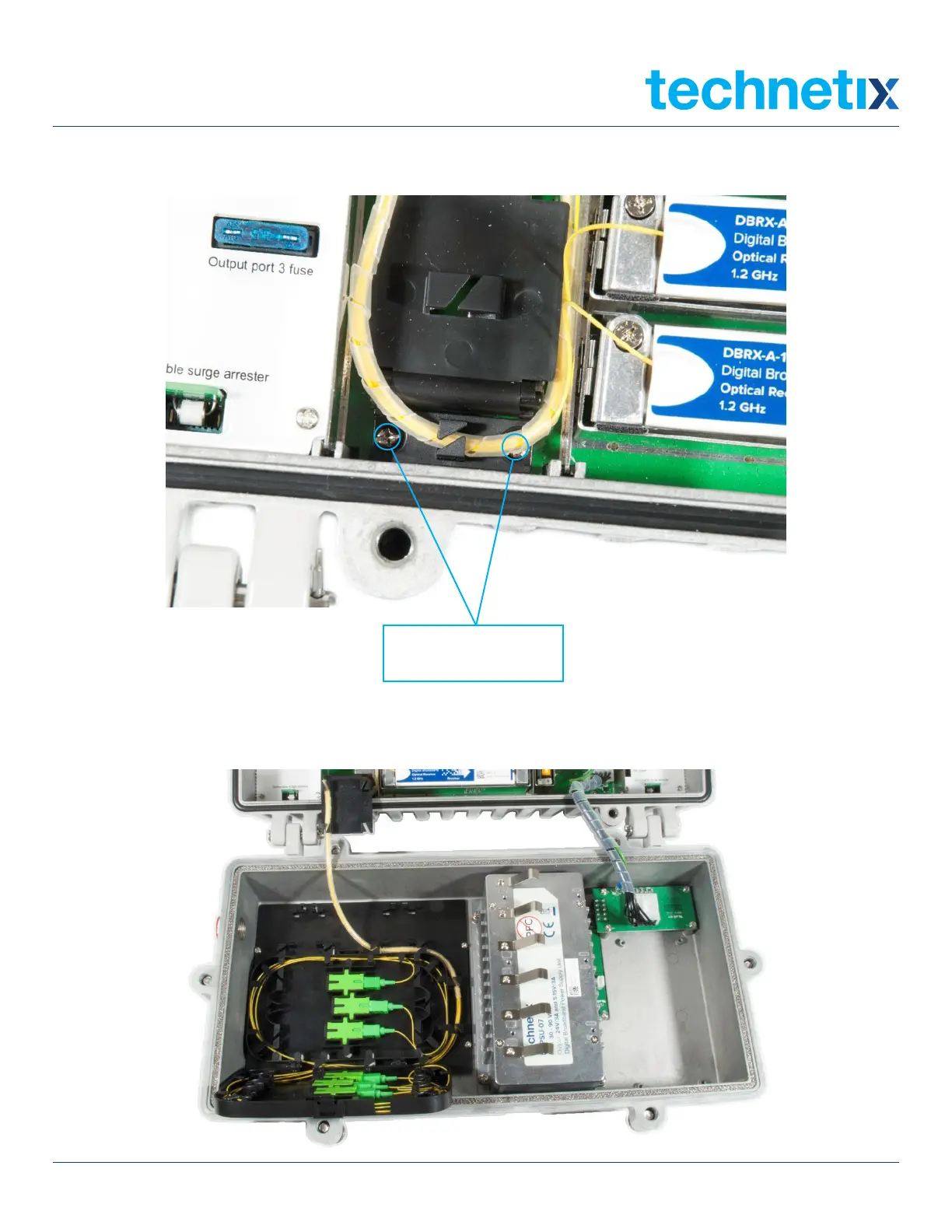

4. Install the fiber management hinge using two screws shown in the close-up below.
two screws for the fiber
management hinge
5. Install the fiber management tray in the lid and install the fiber cables as shown, being careful to ensure that the fibers
are securely captive in the fiber management hinge. Insert the SC/APC connectors into the receptacles.
