3404/2019 - EN/V9 Technetix Group Limited
Product user manual
DBE-1200S

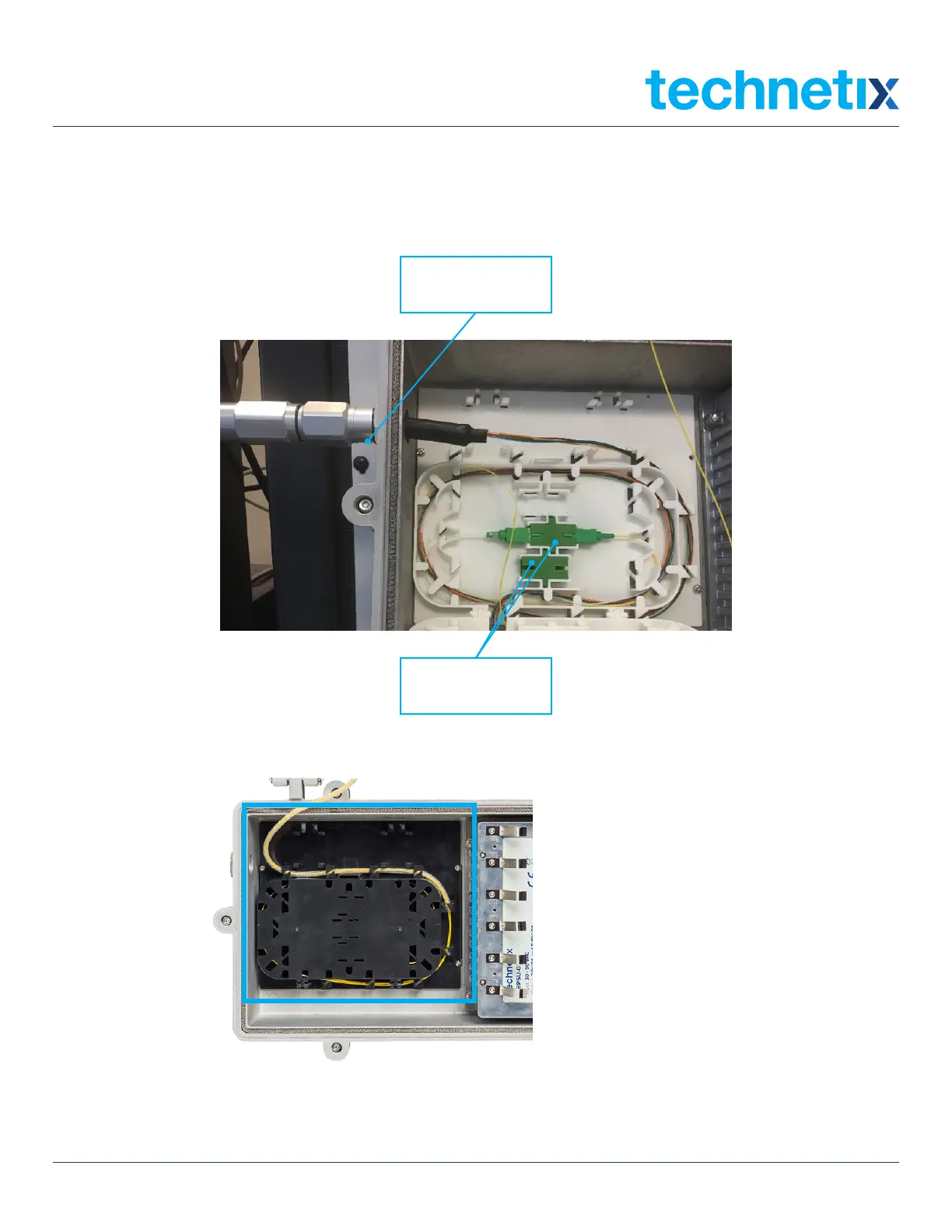

6. The external fibers are brought inside the node with a node cable assembly through the threaded opening in the lid. Guide the
external fiber through the fiber tray and use the outer fiber guides as much as possible as these have a wider bending radius
for thicker pig-tails. Connect the fibers to the transmitters and receivers using the included receptacles as shown.
SC connector
receptacles
Fiber node
cable assembly
7. Close the fiber tray.
8. Connect the USB cable to the digital control module and configure the settings using the BLx software.
9. Remove the USB cable and close the amplifier ensuring that the bolts are secured correctly as described
in Chapter 3.3 (page 13).
