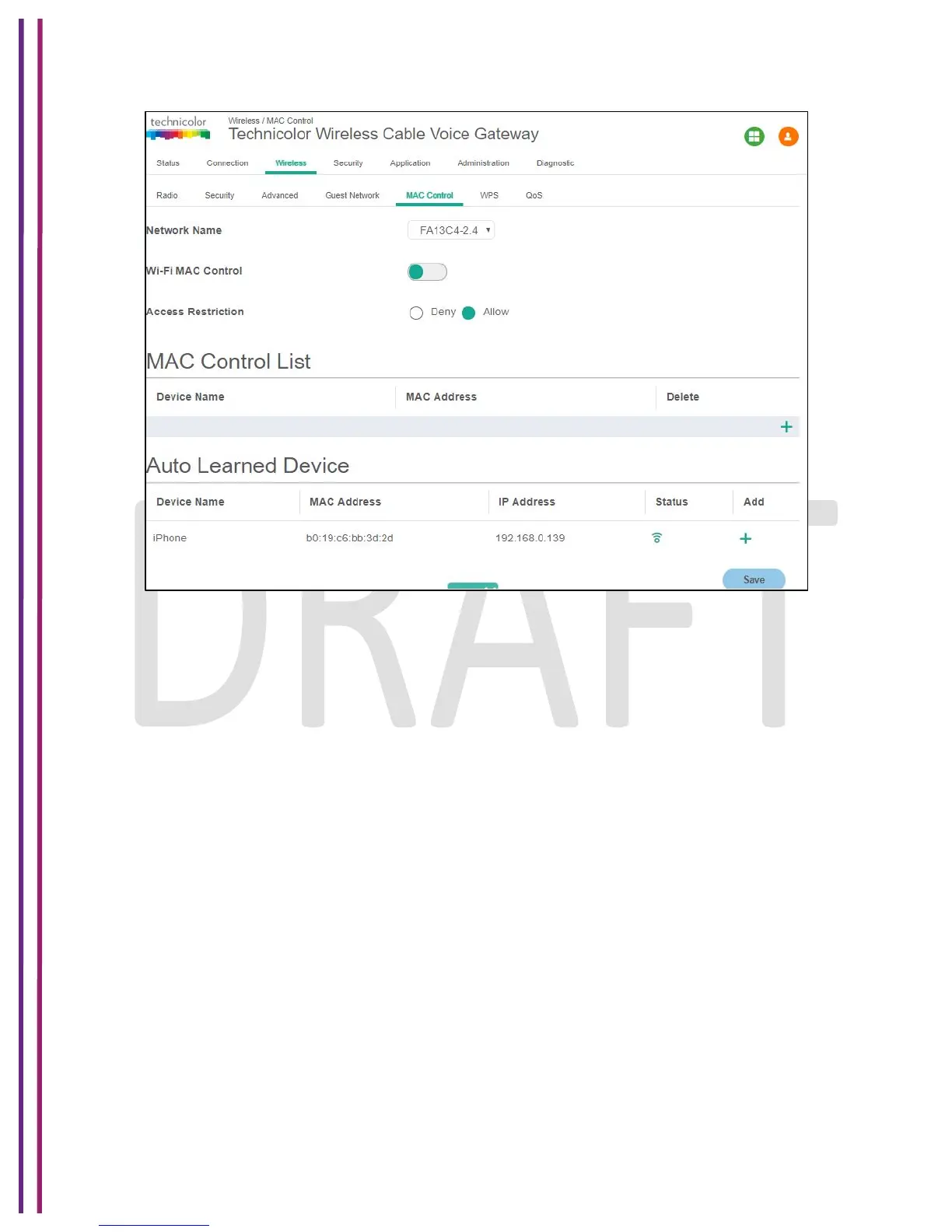

Figure 7.11
7.5.1 User Provisioning for MAC Control
7.5.1.1 Network,Name,
Network name can be selected from the Drop down menu.
7.5.1.2 Wi-Fi,MAC,Control,
Wi-Fi MAC Control can be enabled by the selection that option.
7.5.1.3 Access,Restrictions,
Select the Deny or Allow button to block or permit the MAC addresses listed to access the
wireless network.
7.5.1.4 MAC,Control,List,
The gateway can manage the network access of select client devices if they are entered in this
list using that device’s MAC address.
Click the Add button to add to the list. Add the required details in the entries and click Save to
add them into the control list.
