1/8/2018 Proprietary and Confidential - Technicolor 88

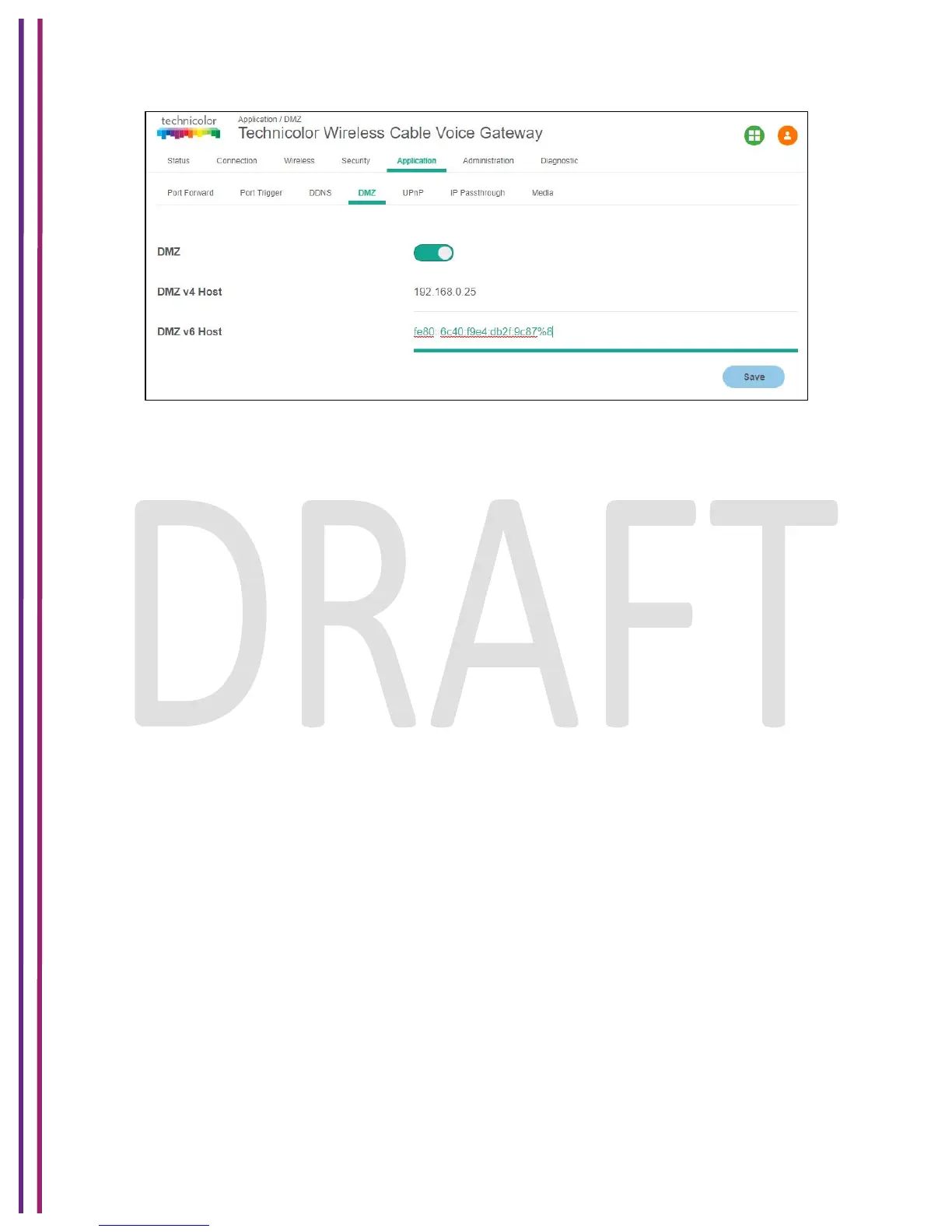

Figure 9.4
9.4.1 SNMP Provisioning for DMZ
For DMZ Host IP address set the following MIB: tchRgFirewallDmzAddress.
For all firewall MIBS set the tchRgFirewallApplySettings to 1 to take effect
9.5 UPNP
Universal Plug and Play (UPnP) allows client devices to automatically configure the device for
various Internet applications, such as gaming and video conferencing. This protocol messaging
over the LAN can be enabled or disabled.
Application Tab / UPnP
Click on the Application tab, and then click on UPnP tab. The page displays UPnP setup
information. Here, user can enable or disable UPnP and alter parameters such as the
Advertisement Period, Time to Live, and Zero Config.
