Technics RS-DC10

et ce) ali ats lala) @re)atize)(cwr- lace m me laveli{e)arc)
TRACK
= TRACK- — TIME /COUNTER—
~~ IES
—
Cla)
DOLBY MTN HGH
CONT
REPEATTRACK CCC EES GY
P| dB SO | 40 - 30]: 26 1 22 | 18 1 16
Ga SREDSCTOCU TB ERR ORSERSOC ERTS AR ATUSO RNS EE ER RERSERRS EOCENE SEER E
a8 aD : ,OoOrzrear ese
Vr ws sper a
Witt wie tai ae
PISPEI Iii Titiirritistiirt (etiriiiritiriiiitiiiriril pitti eee
i
START
REVERSE
MARKER
copy
PROHIB
OPTICAL
COAXIAL
ANALOG
MODE.
{0 1 oven
$30 1 OVER

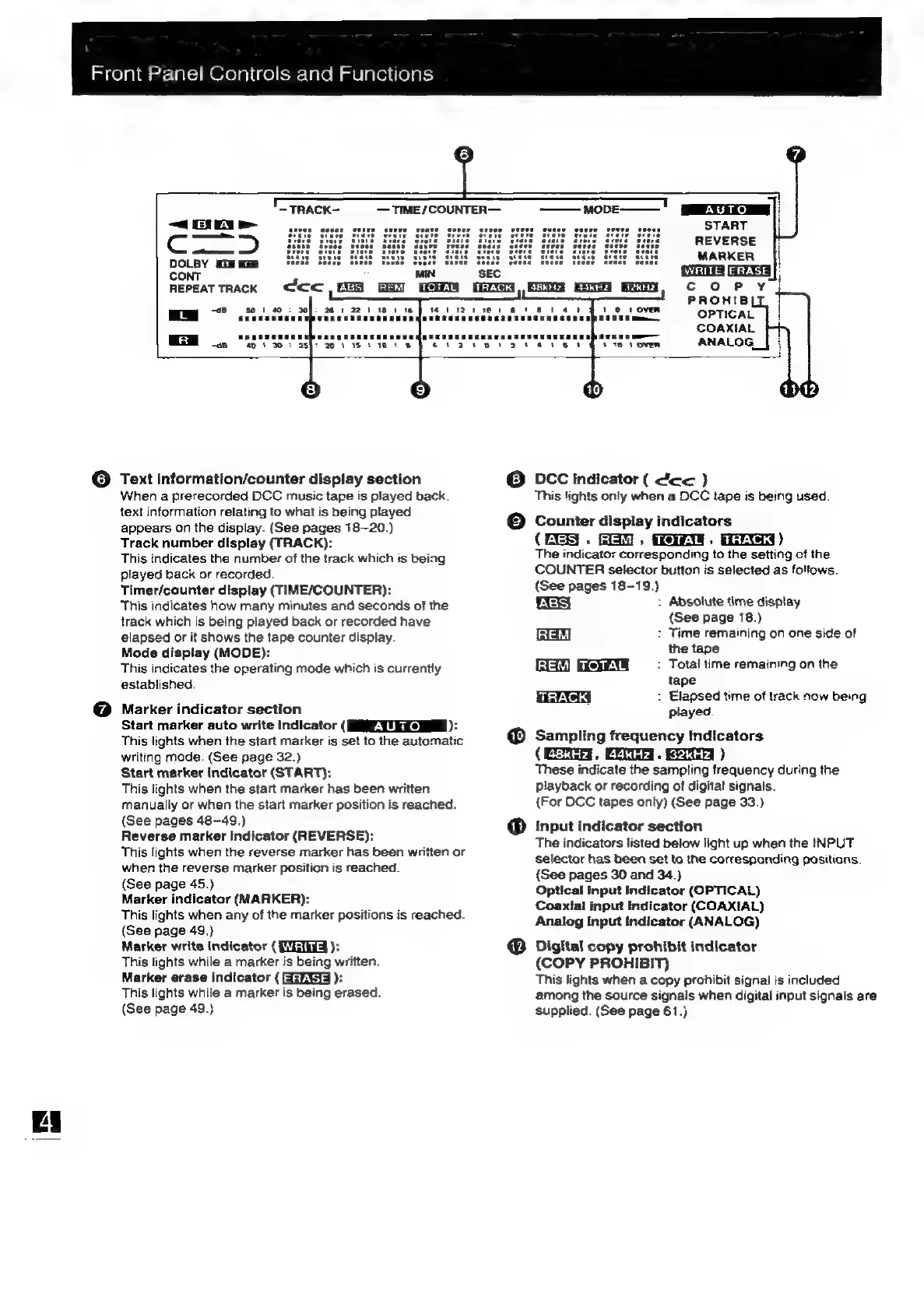

© Text information/counter display section
When a prerecorded DCC music tape is played back.
text information relating to what is being played
appears on the display. (See pages 18-20.)
Track number display (TRACK):
This indicates the number of the track which is being
played back or recorded.
Timer/counter display (TIME/COUNTER):
This indicates how many minutes and seconds of the
track which is being played back or recorded have
elapsed or it shows the tape counter display
Mode display (MODE):
This indicates the operating mode which is currently
established.
Marker indicator section
Start marker auto write Indicator (MER-URZOMgM):
This lights when the start marker is set to the automatic
writing mode. (See page 32.)
Start marker indicator (START):
This lights when the start marker has been written
manually or when the start marker position is reached.
(See pages 48-49.)
Reverse marker Indicator (REVERSE):
This lights when the reverse marker has been written or
when the reverse marker position is reached.
(See page 45.)
Marker indicator (MARKER):
This lights when any of the marker positions is reached.
(See page 49.)
Marker write Indicator ( )
This lights while a marker is being written.
Marker erase indicator ( GG14 ):
This lights while a marker is being erased.
(See page 49.)
5
12)
DCC Indicator ( dc )
This fights only when a DCC tape is being used.
Counter display indicators
(EES . Gam» ' )
The indicator corresponding to the setting of the
COUNTER selector button is selected as follows.
(See pages 18-19.)
ABS} > Adsolute time display
{See page 18.)
a : Time remaining on one side of
the tape
TE) De : Total time remaining on the
tape
TRACK : Elapsed time of track now being
played.
Sampling frequency Indicators
( EEEGH, . Eat)
These indicate the sampling frequency during the
playback or recording of digital signals.
(For DCC tapes only) (See page 33.)
input indicator section
The indicators listed below light up when the INPUT
selector has been set to the corresponding positions.
(See pages 30 and 34.)
Optical Input Indicator (OPTICAL)
Coaxial input Indicator (COAXIAL)
Analog Input Indicator (ANALOG)
Digital copy prohibit indicator
(COPY PROHIBIT)
This fights when a copy prohibit signal is included
among the source signais when digital input signals are
supplied. (See page 61.)
