@ Tape counter buttons
(COUNTER1/COUNTER2)
MODE: This button is used to select the tape/linear
counter indication.
RESET: This button is used to reset tlie tape counter in-
dication to "000_"/"00.00".
@ Automatlc-record-muting button
(0 AUTOREC MUTE)
This button is used to make a silent interval on the tape while
recording is in progress.
@ Record button (8 REC)
This button is used to set deck to the recording stand-by mode.
@ Reverse-side playback button (~
This button is used to start the playback or recording of side
"B" of the cassette.
(The tape will move in the right-te-Ieft direction.)
~
,(
I
/fl.
c
l RS.TR~
@ Stop button (8)
This button is used to stop the tape movement.
@ Forward.side playback button ~)
Thisbuttonis used to start the playback or recording of side
"A" of the cassette.
(The tape will move in the left-to-right direction.)
@ Open/close button ( ~ OPEN/CLOSE)
Thisbutton is used to open or close the cassette holder.
@ Rewind/fast-forward search buttons
(~~~ TPS)
Thesebuttonsare used to advance or rewind the tape, or to
easily and quickly search for the program's beginning of the
tape.
@ Pause button (II)
This button is used to temporarily stop the tape playback or
recording.
2~
,(
In [lJ I-I II
III IlJ.I~ {Ji
E-:::::;::::;:=::-3
E-. 400. 3k .10k .-3
In (11 I-I I-I
III IlJ .CJ U1
-30 -25 -20 -15 -12 -10 -8 -6 -4 -2m 0 +2 +4 +6 +
L11111111111:1111111111111111111111111111111111111111111111,"
R .11111111111111111111111111111'111111111111111111111111111.11
r'
r

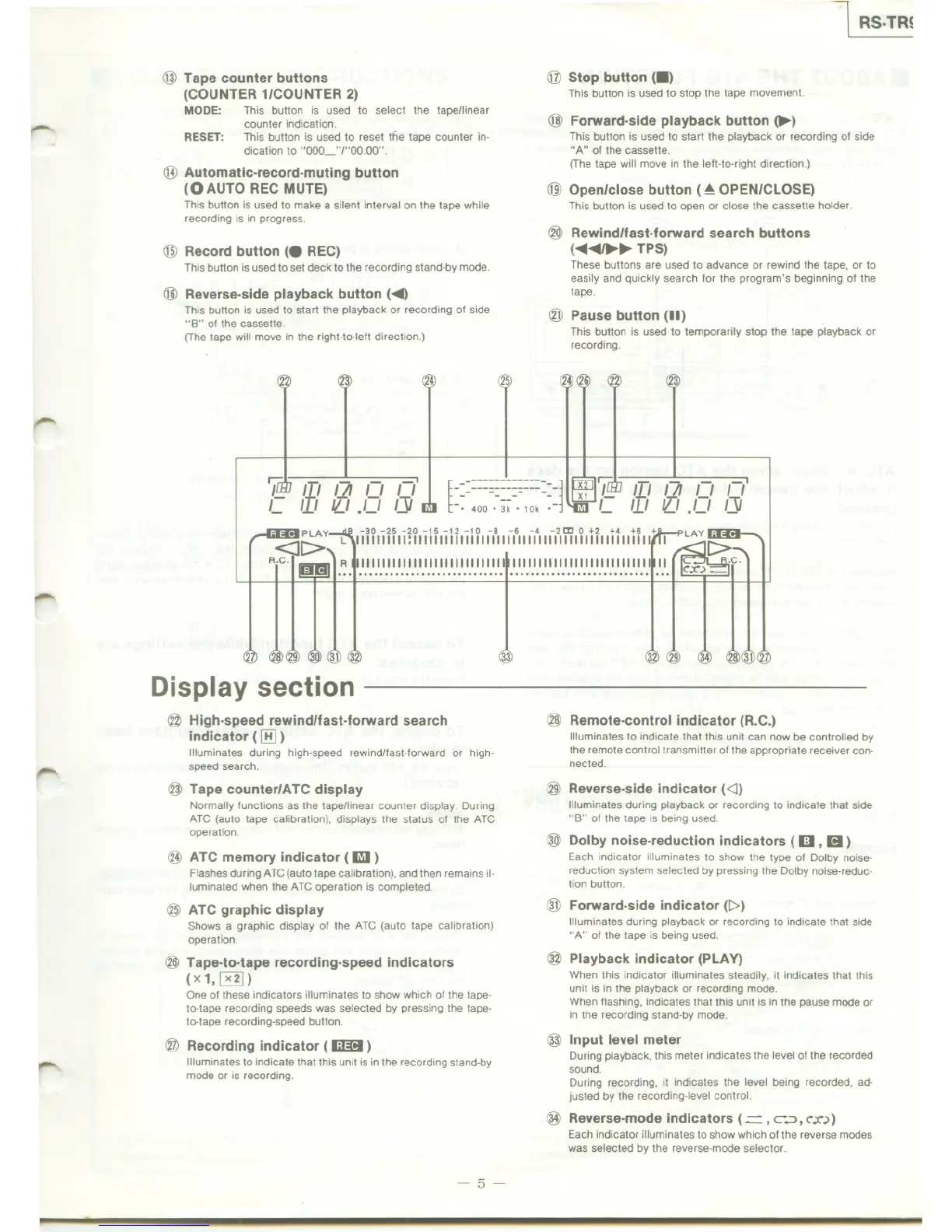

Display section
@ High-speedrewind/fast-forwardsearch
indicator (ffiJ)
Illuminates during high-speed rewindlfast-forward
speed search.
or high-
@ Tape counter/ATC display
Normally functions as the tapellinear counter display. During
ATC (auto tape calibration), displays the status of the ATC
operation.
@ ATC memory indicator ( m )
Flashes during ATC(autotape calibration),and then remains il-
luminated when the ATC operation is completed.
@ ATC graphic display
Shows a graphic display of the ATC(auto tape calibration)
operation.
@ Tape.to-tape recording-speed Indicators
(x1,~)
One of these indicators illuminates to show which of the tape-
to-tape recording speeds was selected by pressing the tape-
to-tape recording-speed button.
r--
@Recording indicator ( mm )
Illuminates to indicate that this unit is in the recording stand-by
mode or is recording.
-5-
@ Remote-control indicator (R.C.)
Illuminates to indicate that this unit can now be controlled by
the remote control transmitter of the appropriate receiver con-
nected.
@> Reverse-side indicator «1)
Illuminates during playback or recording to indicate that side
"B" of the tape is being used.
@ Dolby noise-reduction indicators ( II , m )
Each indicator illuminates to show the type of Dolby noise-
reduction system selected by pressing the Dolby noise-reduc-
tion button.
(@ Forward-side indicator (I»
Illuminates during playback or recording to indicate that side
"A" of the tape is being used.
@ Playback indicator (PLAY)
When this indicator illuminates steadily, it indicates that this
unit is in the playback or recording mode.
When flashing, indicates that this unit is in the pause mode or
in the recording stand-by mode.
@ Input level meter
During playback, this meter indicates the level of the recorded
sound.
During recording, it indicates the level being recorded, ad-
justed by the recording-level control.
@ Reverse-mode indicators (~ ,C"':>, ~~~)
Each indicator illuminatesto showwhichof the reverse modes
was selected by the reverse-mode selector.
