Technics SC-CH730 User Manual

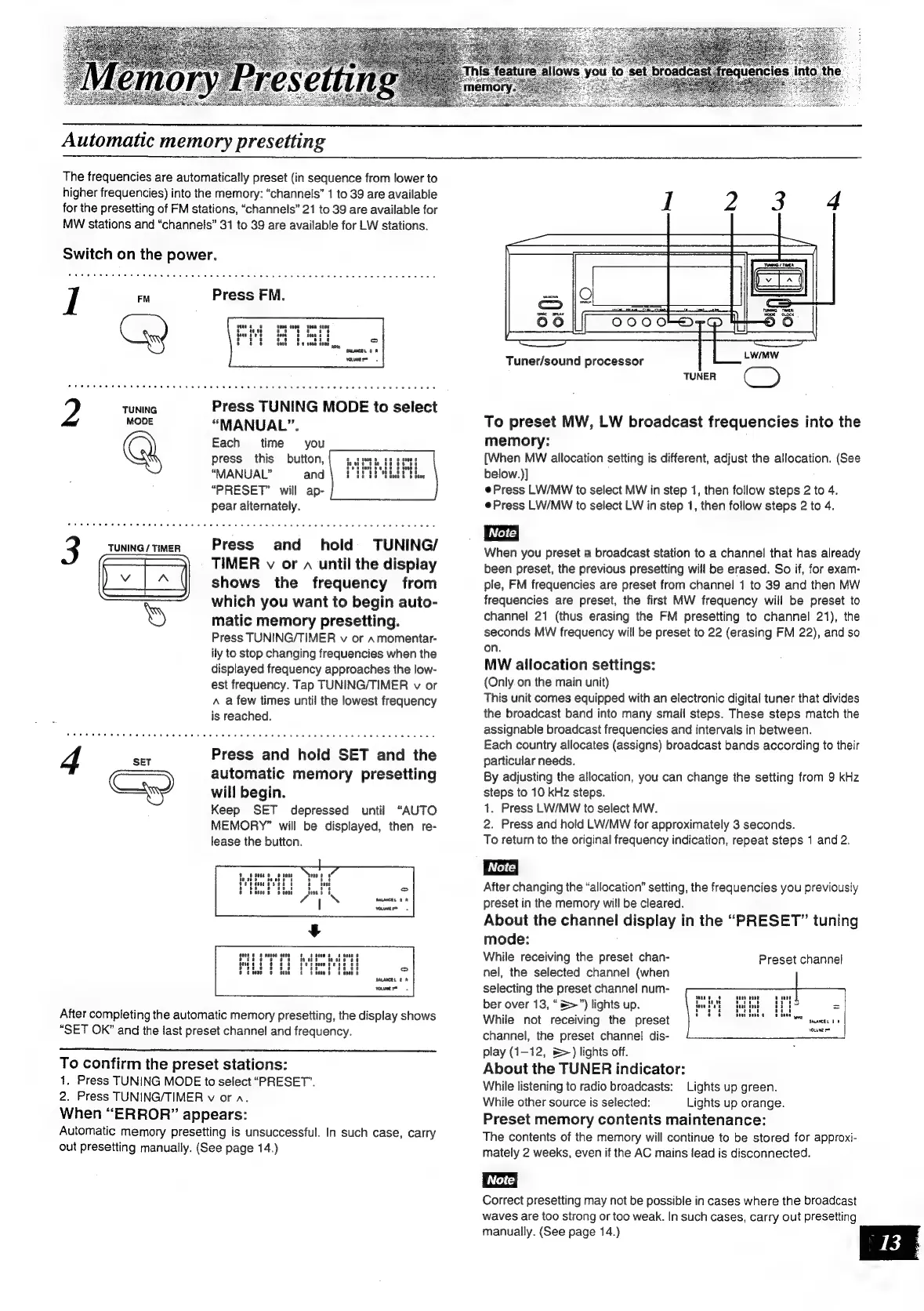

Automatic memory presetting
The frequencies are automatically preset (in sequence from lower to
higher frequencies) into the memory: “channels” 1 to 39 are available
for the presetting of FM stations, “channels” 21 to 39 are available for
MW stations and “channels” 31 to 39 are available for LW stations.
Switch on the power.
2 TUNING Press TUNING MODE to select
MODE “MANUAL”,
Q Each time you
press this button,
“MANUAL” and
“PRESET” will ap-
pear alternately.
Press and hold TUNING/
TIMER v or ~ until the display
shows the frequency from
which you want to begin auto-
matic memory presetting.
Press TUNING/TIMER v or ~momentar-
ily to stop changing frequencies when the
displayed frequency approaches the low-
est frequency. Tap TUNING/TIMER v or
A a few times until the lowest frequency
is reached.
Press and hold SET and the
automatic memory presetting
will begin.
Keep SET depressed until “AUTO
MEMORY” will be displayed, then re-
lease the button.
After completing the automatic memory presetting, the display shows
“SET OK” and the last preset channel and frequency.
To confirm the preset stations:
1, Press TUNING MODE to select “PRESET”.
2. Press TUNING/TIMER v or a.
When “ERROR” appears:
Automatic memory presetting is unsuccessful. In such case, carry
out presetting manually. (See page 14.)
To preset MW, LW broadcast frequencies into the
memory:
(When MW allocation setting is different, adjust the allocation. (See
below.)]
Press LW/MW to select MW in step 1, then follow steps 2 to 4.
Press LW/MW to select LW in step 1, then follow steps 2 to 4.
When you preset a broadcast station to a channel that has already
been preset, the previous presetting will be erased. So if, for exam-
ple, FM frequencies are preset from channel 1 to 39 and then MW
frequencies are preset, the first MW frequency will be preset to
channel 21 (thus erasing the FM presetting to channel 21), the
seconds MW frequency will be preset to 22 (erasing FM 22), and so
on.
MW allocation settings:
(Only on the main unit)
This unit comes equipped with an electronic digital tuner that divides
the broadcast band into many small steps. These steps match the
assignable broadcast frequencies and intervals in between.
Each country allocates (assigns) broadcast bands according to their
particular needs.
By adjusting the allocation, you can change the setting from 9 kHz
steps to 10 kHz steps.
1. Press LW/MW to select MW.
2. Press and hold LW/MW for approximately 3 seconds.
To return to the original frequency indication, repeat steps 1 and 2.
After changing the “allocation” setting, the frequencies you previously
preset in the memory will be cleared.
About the channel display in the “PRESET” tuning
mode:
While receiving the preset chan-
nel, the selected channel (when
selecting the preset channel num-
ber over 13, “s=>”) lights up.
While not receiving the preset sauce 1a
channel, the preset channel dis- aaa
play (1-12, =) lights off.
About the TUNER indicator:
While listening to radio broadcasts: Lights up green.
While other source is selected: Lights up orange.
Preset memory contents maintenance:
The contents of the memory will continue to be stored for approxi-
mately 2 weeks, even if the AC mains lead is disconnected.
Correct presetting may not be possible in cases where the broadcast
waves are too strong or too weak. In such cases, carry out presetting
manually. (See page 14.)
Preset channel
