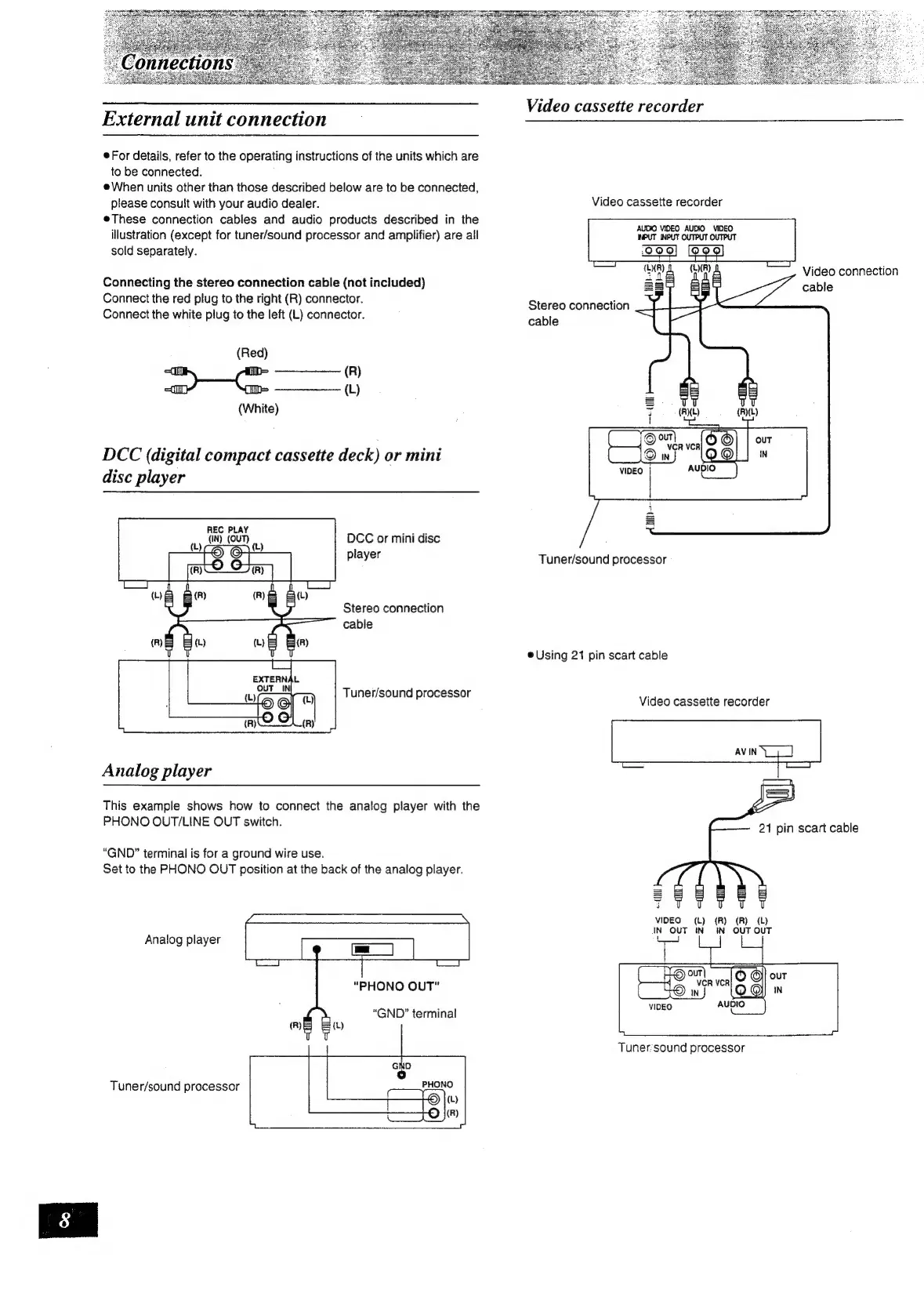

External unit connection
For details, refer to the operating instructions of the units which are
to be connected.
When units other than those described below are to be connected,
please consult with your audio dealer.
These connection cables and audio products described in the
illustration (except for tuner/sound processor and amplifier) are all
sold separately.
Connecting the stereo connection cable (not included)
Connect the red plug to the right (R) connector.
Connect the white plug to the left (L) connector.
(Red)
oer th)
(White)
DCC (digital compact cassette deck) or mini
disc player
REC PLAY $e
DCC or mini disc
player
Stereo connection
cable
EXTERN
OUT_ IN
eS ©
CE) ©
Tuner/sound processor
Analog player
This example shows how to connect the analog player with the
PHONO OUT/LINE OUT switch.
“GND” terminal is for a ground wire use.
Set to the PHONO OUT position at the back of the analog player.
Analog player
“PHONO OUT"
“GND” terminal
(R)
Tuner/sound processor
Video cassette recorder
Video cassette recorder
AUDIO VIDEO AUDIO VIDEO
OUTPUT
Video connection
cable
Stereo connection
cable
Tuner/sound processor
© Using 21 pin scart cable
Video cassette recorder
AVIN 1]
nS
) (RY (L)
Tuner’sound processor
