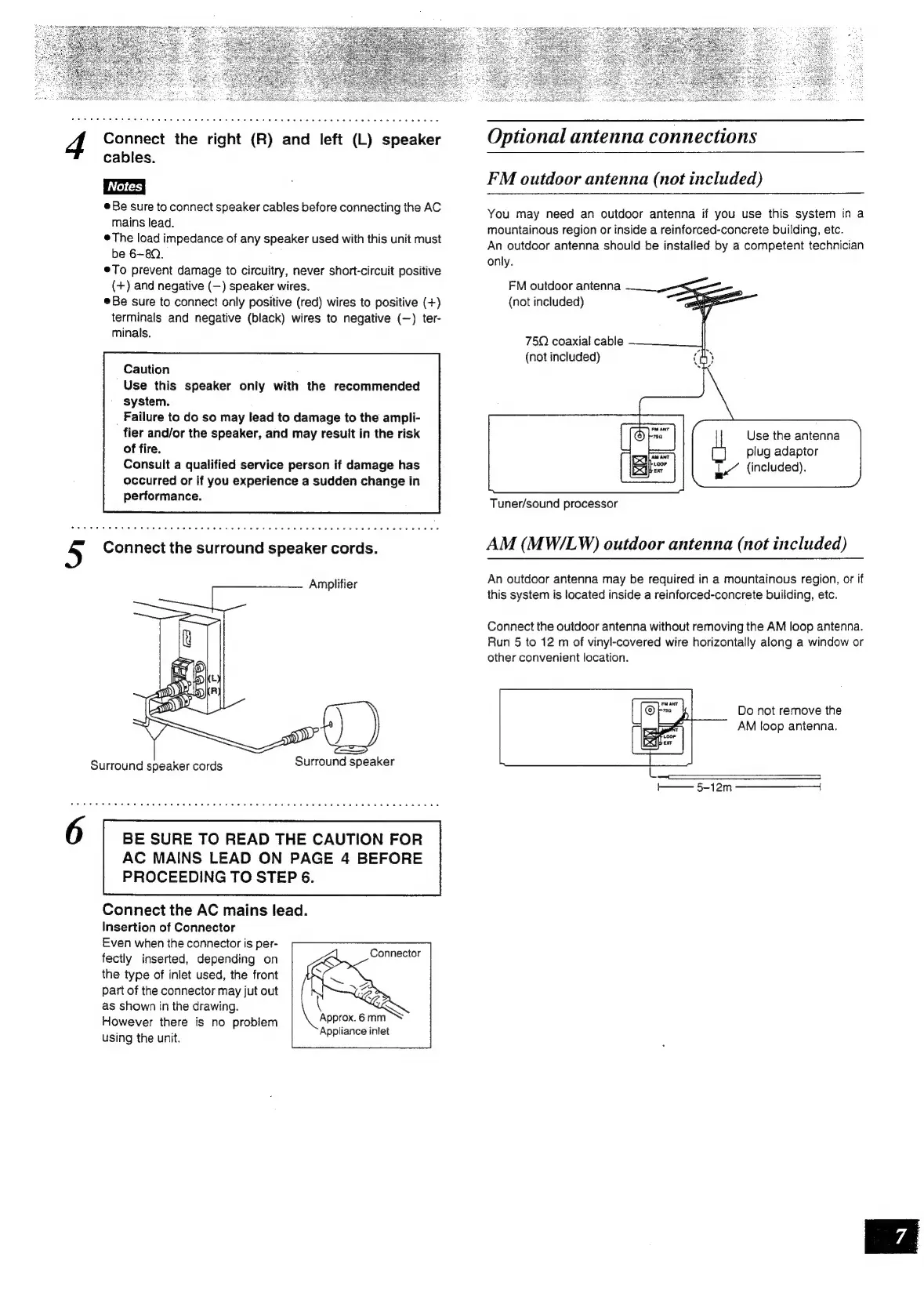

Technics SC-CH730 User Manual

4 Connect the right (R) and left (L) speaker
cables.
® Be sure to connect speaker cables before connecting the AC
mains lead.
©The load impedance of any speaker used with this unit must
be 6~8Q.
©To prevent damage to circuitry, never short-circuit positive
(+) and negative (—) speaker wires.
eBe sure to connect only positive (red) wires to positive (+)
terminals and negative (black) wires to negative (—) ter-
minals.
Caution
Use this speaker only with the recommended
system.
Failure to do so may lead to damage to the ampli-
fier and/or the speaker, and may result in the risk
of fire.
Consult a qualified service person if damage has
occurred or if you experience a sudden change in
performance.
5 Connect the surround speaker cords.
Amplifier
BE SURE TO READ THE CAUTION FOR
AC MAINS LEAD ON PAGE 4 BEFORE
PROCEEDING TO STEP 6.
Connect the AC mains lead.
Insertion of Connector
Even when the connector is per-
fectly inserted, depending on
the type of inlet used, the front
part of the connector may jut out
as shown in the drawing.
However there is no problem
using the unit.
Approx. 6 mm
Appliance intet
Optional antenna connections
FM outdoor antenna (not included)
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
An outdoor antenna should be installed by a competent technician
only.
FM outdoor antenna
(not included)
75Q coaxial cable
(not included)
Use the antenna
plug adaptor
ie (included).
Tuner/sound processor
AM (MW/LW) outdoor antenna (not included)
An outdoor antenna may be required in a mountainous region, or if
this system is located inside a reinforced-concrete building, etc.
Connect the outdoor antenna without removing the AM loop antenna.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location.
Do not remove the
AM loop antenna.
