Note
Connections and installation
Turn off all units and disconnect the AC mains lead from the socket before making any
connections.
Connect the AC mains lead only after all other connections are completed.
Be sure to connect the PHONO earth lead. Otherwise mains hum may occur.
Refer also to the instruction manual of the connected device.

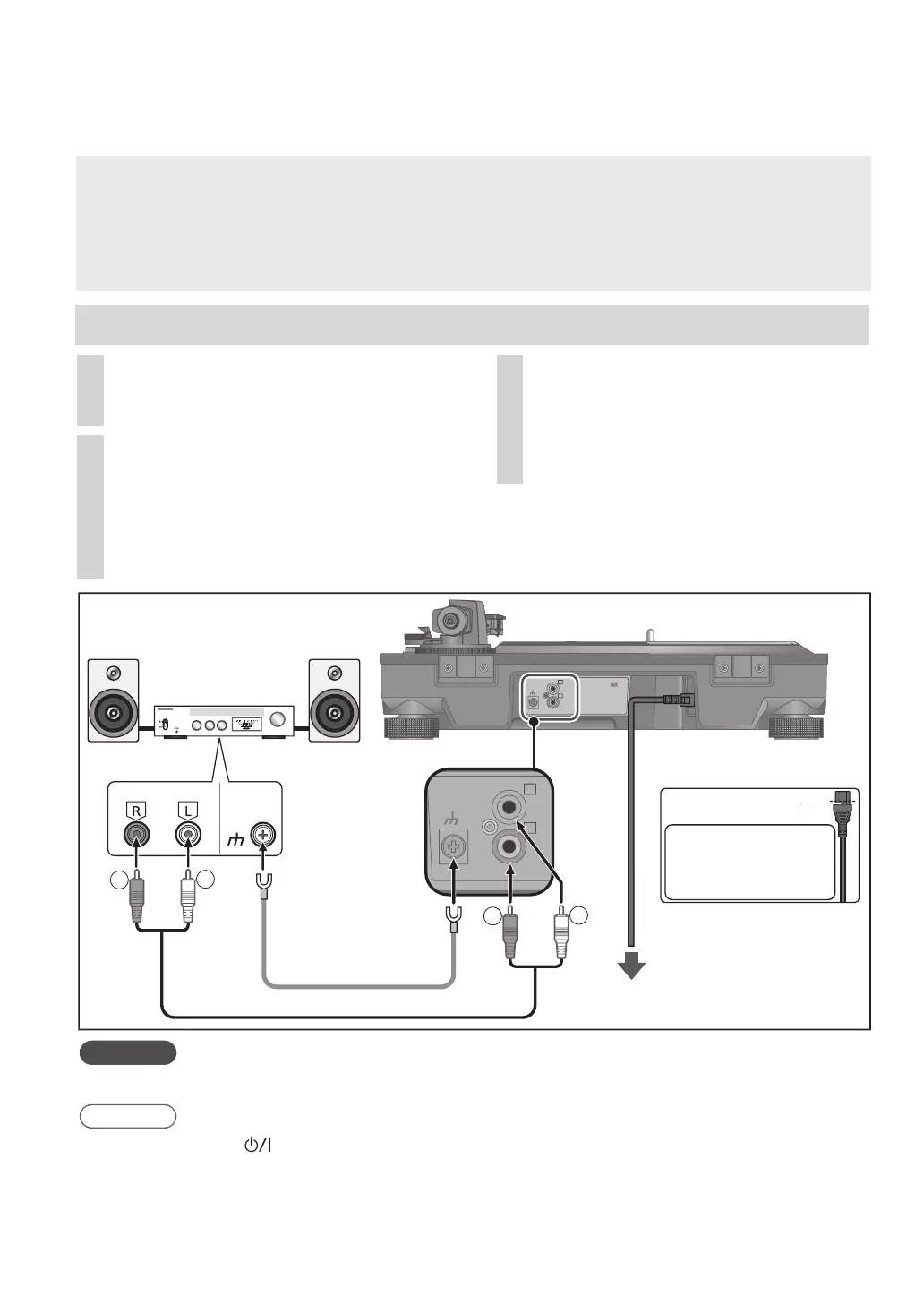

Connecting to an integrated amplifier or component system
1
Turn off the unit and the
connected device, and disconnect
the AC mains leads from the socket.
2
Connect the PHONO cable and
PHONO earth lead to the PHONO
input terminals of the connected
equipment.
You will not have adequate volume or
sound quality if the connected amplifier
has no PHONO input terminals.
3
Connect the AC mains lead.
Confirm the wattage of the AC outlet on
the connected equipment before using it
for this unit.
For the power consumption of this unit,
see the specifications. (
23)
ヱラヰワヰ
ユモンヵラ
ヱラヰワヰチヰヶヵ
モヶヵヰチロリョヵチヶヱ
ヰョョ ヰワ
ヱラヰワヰ
ユモンヵラ
ヱラヰワヰチヰヶヵ
R
L
R
L
PHONO PHONO
EARTH
Amplifier (not included)
Back of main unit
To a household
mains socket
PHONO earth lead
PHONO cable
Insert the AC mains
lead up to a point
just before the round
hole.
PHONO
OUT
AC mains lead
Attention
Tighten the PHONO earth terminal using a Phillips head screwdriver.
Stanby/on switch [
] (OFF/ON)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
Remove the plug from the mains socket if you will not be using the unit for an extended period of
time. Place the unit so that the plug can be easily removed.
SL-100CEB210118.indd12SL-100CEB210118.indd12 2021/03/2317:28:042021/03/2317:28:04
