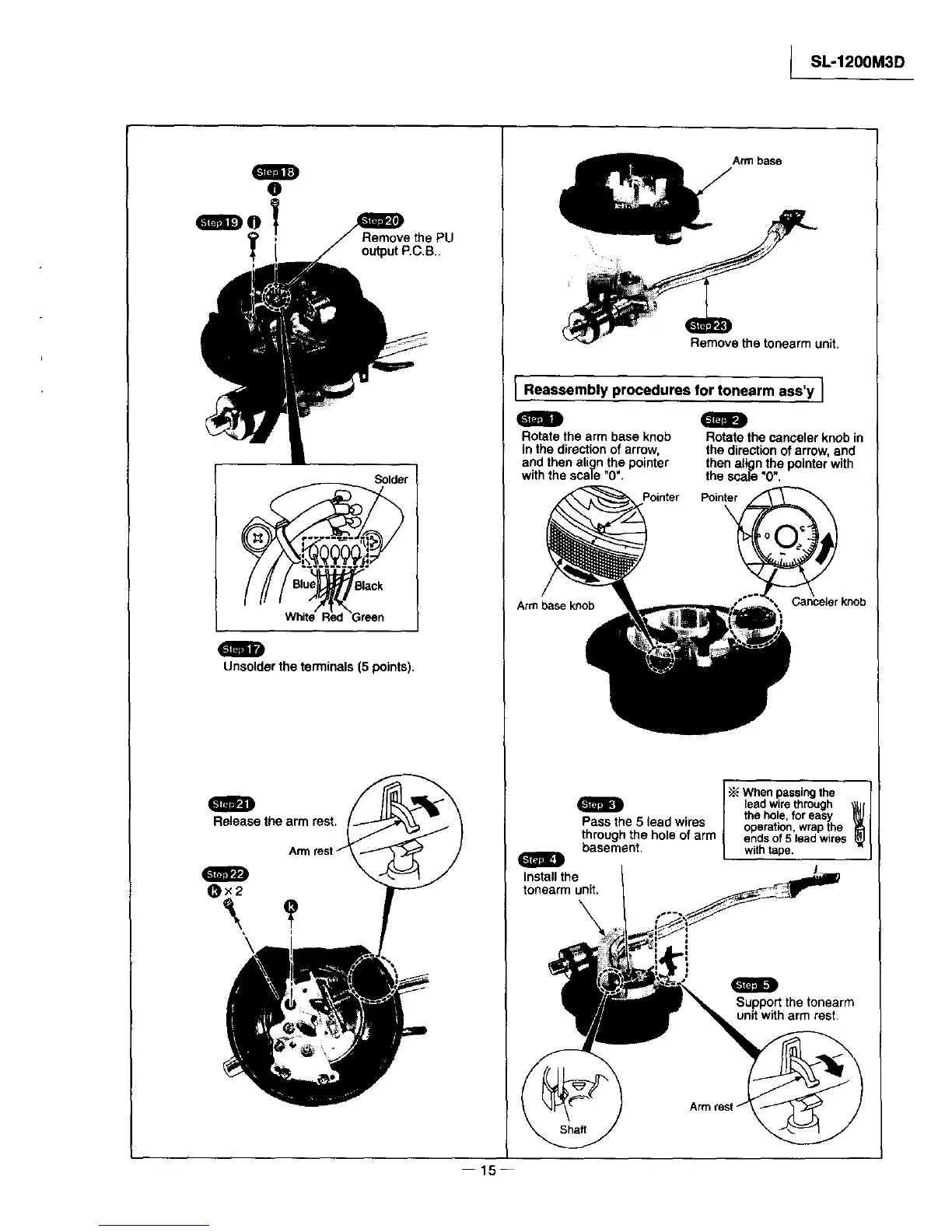

Technics SL-1200M3D Service Manual

SL-1200M3D
O
Remove the PU
outputP.C,B,.
/
Solder
White Red Green
Unsoldarthe terminals (5 points).
I
Release the arm rest.
Arm base
Remove the tonearmunit.
Reassembly procedures for tonearm ass'y I
Rotate the arm base knob
in the directionof arrow,
and then align the pointer
withthe scale "0",
Rotatethe canceler knob in
the directionof arrow,and
thenatignthe pointerwith
the scale _0".
Pointer Pointer
Arm base knob
When passingthe ,,,,,
lead wirethrough
, the hole, for easy
Pass the 5 lead wires I oneration wran the
through the hole of arm e_ds of 5'lead_virss
basement, with tape.
Install the
tonearm unit.
\
Supportthe tonearm
unit witharm rest.
I16h
