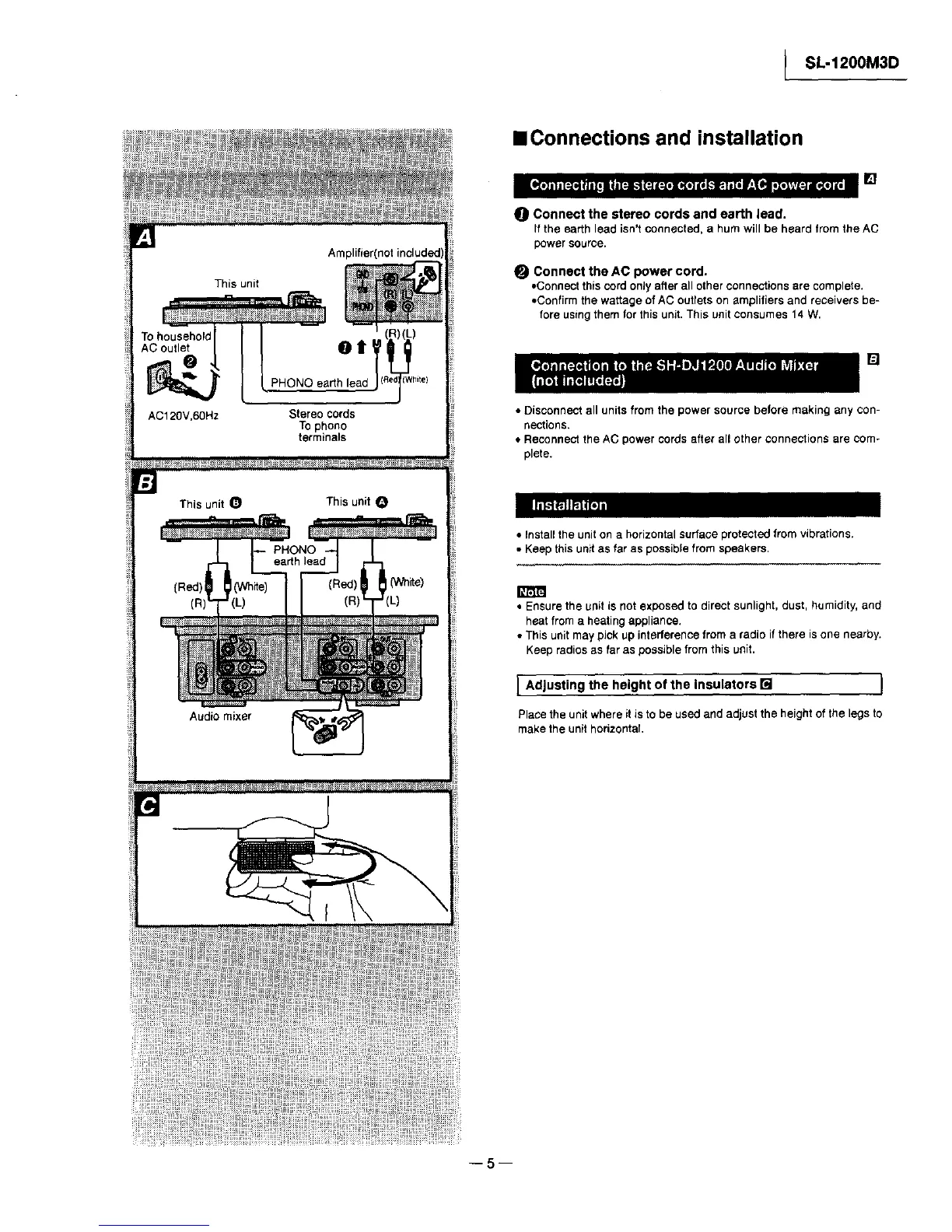

Technics SL-1200M3D - Connections and Installation

I SL-1200M3D
• Connections and installation
This unit
To household
AC outlet O l
AC120V,60Hz Stereo cords
To phono
terminals
This unit O This unit O
, N
earth lead
_" _ (Whffe)_ r _(Red) 6 _ (White)
'"")(°)-25!...........11 ,.,-°,L,
9
? _N Nk
Audio mixer I
[_
0 Connect the stereo cords and earth lead.
If the earth lead isn't connected, a hum will be heard from the AC
power source.
Connect the AC power cord.
• Connect this cord onlyafter all other connections are complete.
• Confirm the wattage of AC outlets on amplifiers and receivers be-
fore using them for this unit. This unit consumes 14 W.
[]
• Disconnect all units from the power source before making any con-
nections.
• Reconnect the AC power cords after all other connections are com-
plete.
• Install the unit on a horizontal surtaoe protected from vibrations.
• Keep this unit as far as possible from speakers.
• Ensure the unit is not exposed to direct sunlight, dust, humidity, and
heat from a heatingappliance.
• This unit may pick up interference from a radio if there is one nearby.
Keep radios as far as possible from this unit.
] Adjusting the height of the insulators [] I
Place the unitwhere it is to be used and adjust the height of the legs to
make the unit horizontal,
