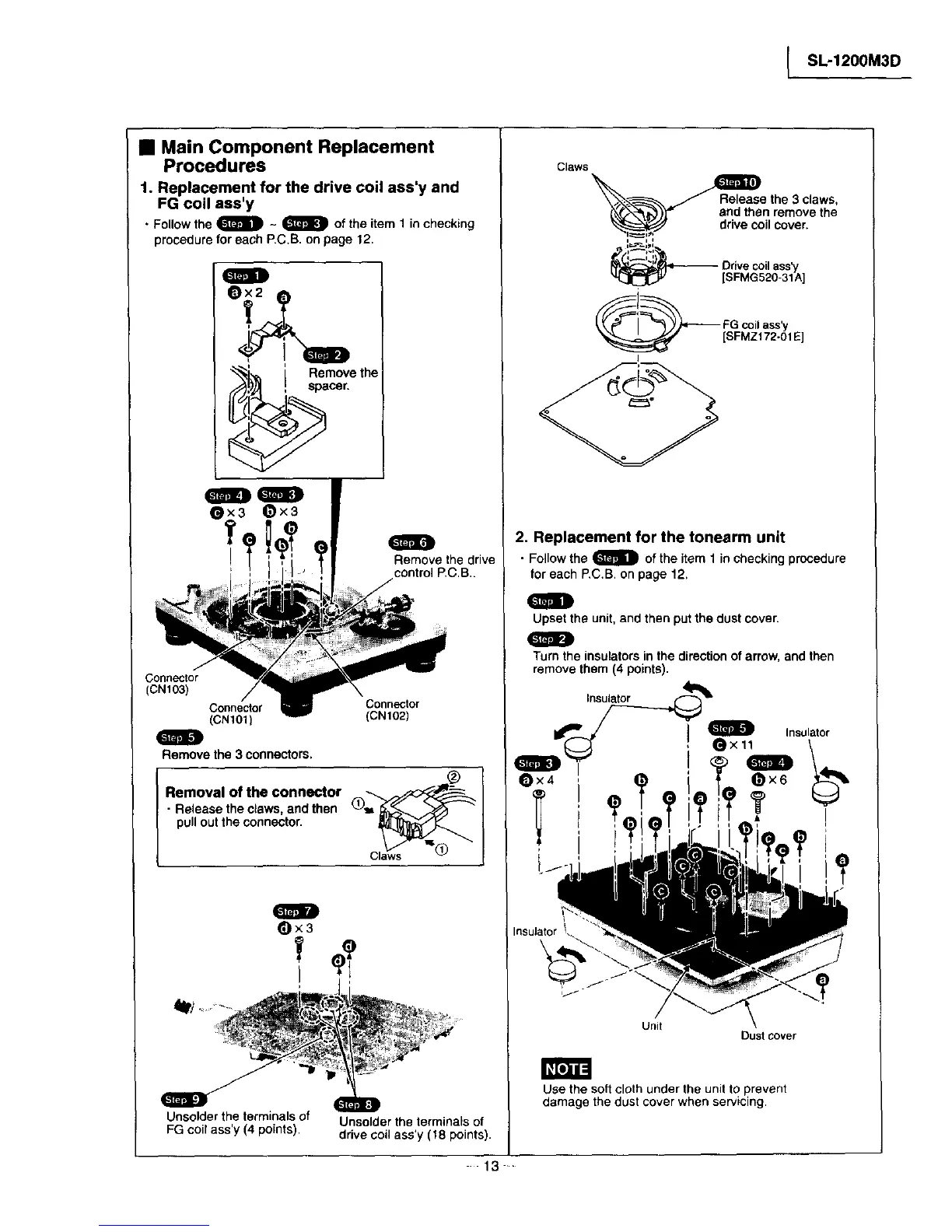

Technics SL-1200M3D Service Manual

I SL-1200M3D
• Main Component Replacement
Procedures
1. Replacement for the drive coil ass'y and
FG coil ass'y
• Follow the _ - _ of the item 1 in checking
procedure for each P.C.B. on page 12.
_i',= i Remove the
/_!),_ ! spacer.
Remove the drive
controlP.C.B..
Connector
(CN103)
Conne_or
(CN101)
Connector
(CN102)
Q
m
Remove the 3 connectors.
Removal of the connector
• Release the claws,and then
pulloutthe connector.
I_[ol] =
Unsolder the terminals of
FG coil ass'y (4 points).
Unsolder the terminals of
drive coil ass'y (18 points).
Claws
_ ._Release the _ claws,
_N-_)_/ ana-th;n remove the
drive coil cover.
Drive coilass'y
[SFMG520-31A]
FG coilass'y
[SFMZ172-01 El
I
2. Replacement for the tonearm unit
• Follow the _D of the item 1 in checking procedure
for each P,C.B. on page 12,
Upset the unit, and then put the dust cover.
Turn the insulatorsin the directionof arrow,and then
remove them (4 points).
Insulator
Insulator
¢Dx6
Insulator _'
Unit
Dust cover
Use the soft cloth under the unit to prevent
damage the dust cover when servicing.
13 +
