ACommunication
E
Ref. DCD01/3078 - TD412_en_C
42/62

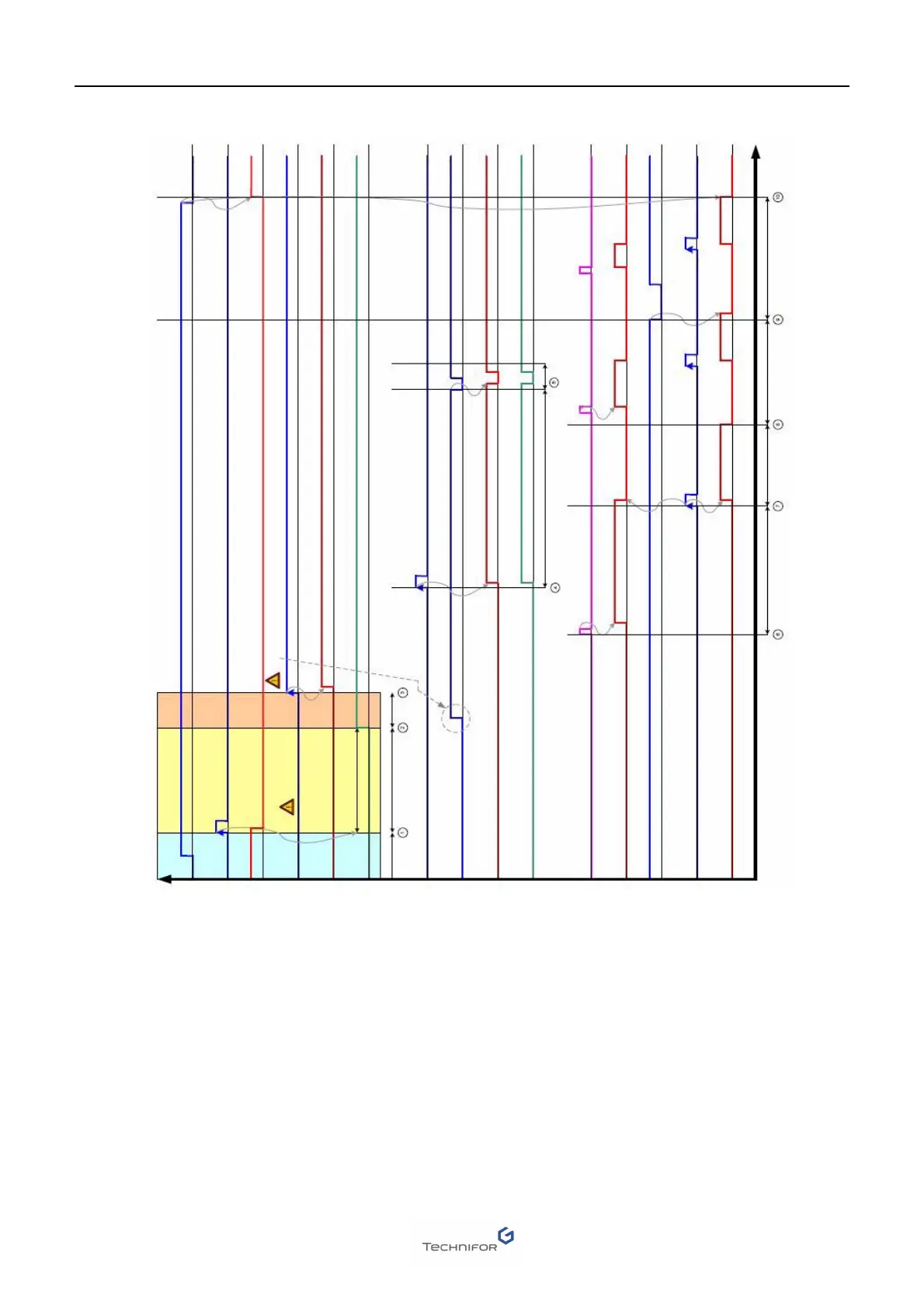

Input - Emergency stop
Terminal: 1-20 / 2-21
Input - Safety circuit reset
CCU front panel or terminal: 19-37
Output - Information: Emergency stop
Terminal: 18-36
Input - Key contact
CCU front panel or terminal: 12-30
Information: Key state
Terminal: 17-35
Green light: CCU ready
CCU front panel
Input - Shutter command
CCU front panel or terminal: 8-29
Input - Interlock
Terminal: 3-22 / 4-23
Information: Shutter’s condition
Terminal: 16-34
Green light: Shutter
CCU front panel
Transmission of the marking file
Output - Ready to marking
Terminal: 14-32
Input - Stop marking
Terminal: 5-24
Input - Start marking
Terminal: 6-25
Output - Marking in progress
Terminal: 15-33
Maintain 0.5 s min.
Maintain 0.5 s min.
Maintain 0.5 s min.
Laser startup: 50 s
Key state = 0 to allow laser initialization
The interlock must be closed (bridging or door security).
