3. Replace the seal ring (P/N: NM-0000-0014001) at the drain
plug.
4. Refit the drain plug and tighten it up to the specified
tightening torque.
Tightening Torque:
20 Nm (177 inch-lbs.)
5. Secure the drain plug with a locking wire.
6. Remove the screw cap (b) together with the oil filter
cartridge (c). See Fig. 6.2.
7. Replace the o-ring (a) and then insert the new oil filter
cartridge (c) into the screw cap (b). See Fig. 6.2.
8. Refit the screw cap (b) and tighten it up to the specified
tightening torque.
Tightening Torque:
25 Nm (221 inch-lbs.)
 Note: Check the oil filter cartridge for swarf and other signs of abrasion
(e.g. from the bearings). Contact the Technify Motors GmbH if
any are found.
 CAUTION: Only use the original Technify Motors GmbH oil filter.

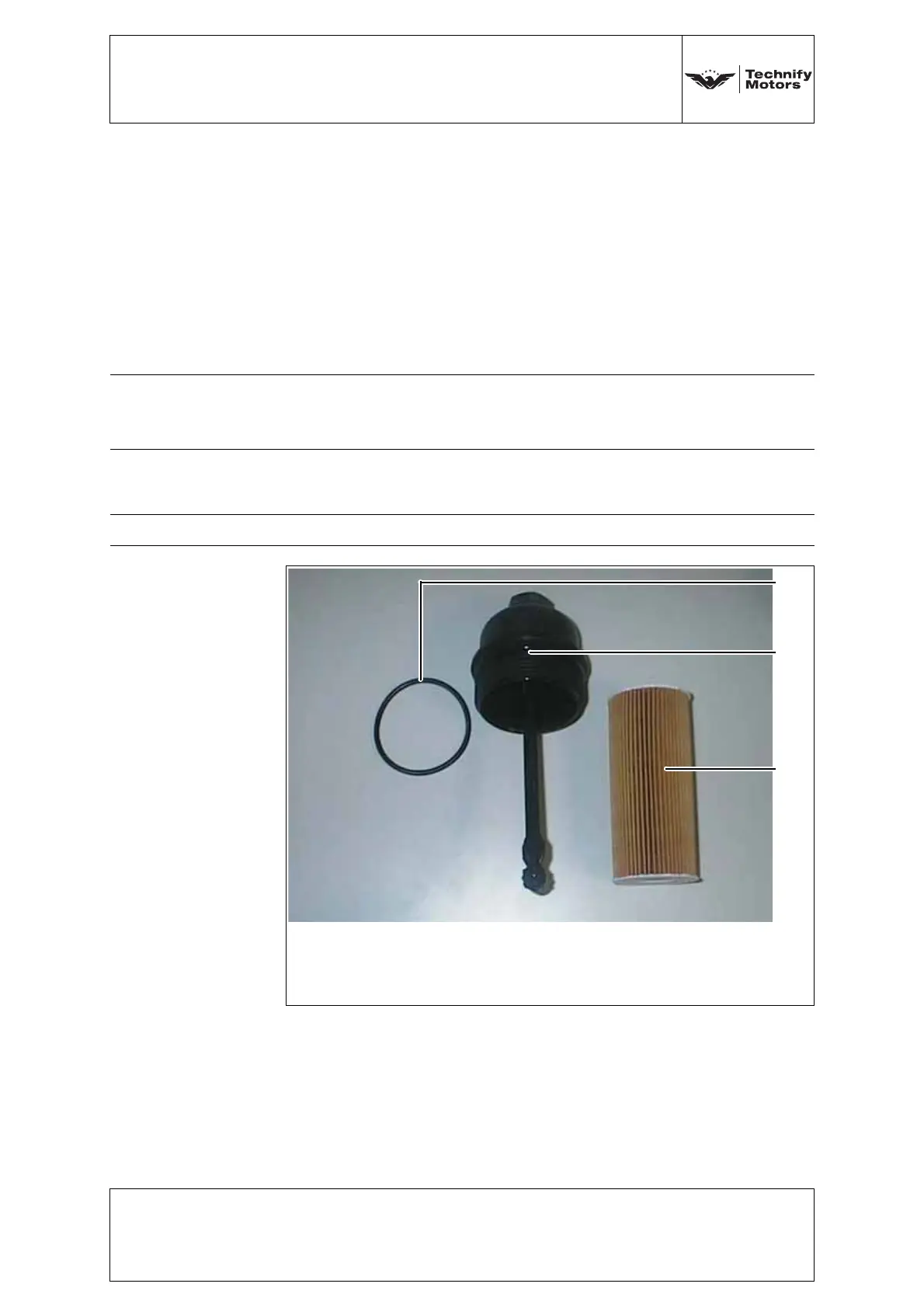

Fig. 6.2 Oil filter assy
a O-ring, part of P/N 05-7253-K0044 01
b Screw cap, P/N 05-7253-K00030x
c Oil filter cartridge, P/N 05-7253-K0044 01
a
b
c
