Annex 7 Checking the FADEC Sensors
This is a visual inspection. Check whether the plug connections
of the sensors are firmly in place. In addition, the wiring harness
has to be checked for indications of abrasion. 
The sensors which should be checked are listed below:
 Note: The plugs marked "spare" and "diagnostic" are not connected to
the wiring harness.

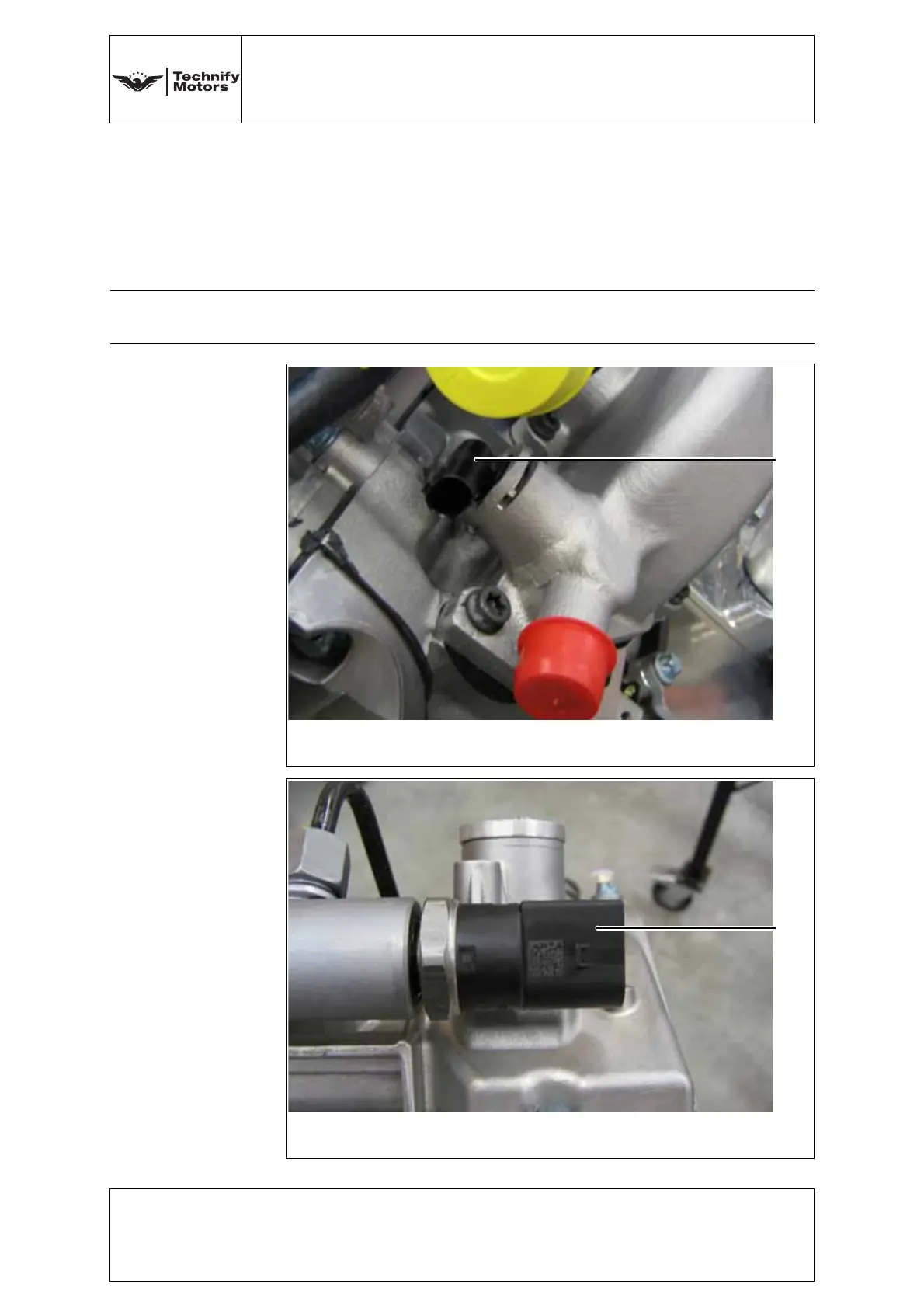

Fig. 6.3 Coolant temperature sensor
a Coolant temperature sensor
Fig. 6.4 Rail pressure sensor
a Rail pressure sensor
a
a
