3. Insert the new gearbox oil filter. For mounting direction see
Fig. 6.13 and Fig. 6.14.
 CAUTION: Only use an original Technify Motors GmbH gearbox oil filter.
 Note: Make sure that the new o-ring is correctly mounted to the new
oil-filter. The o-ring is part of the new oil filter (Item 1).

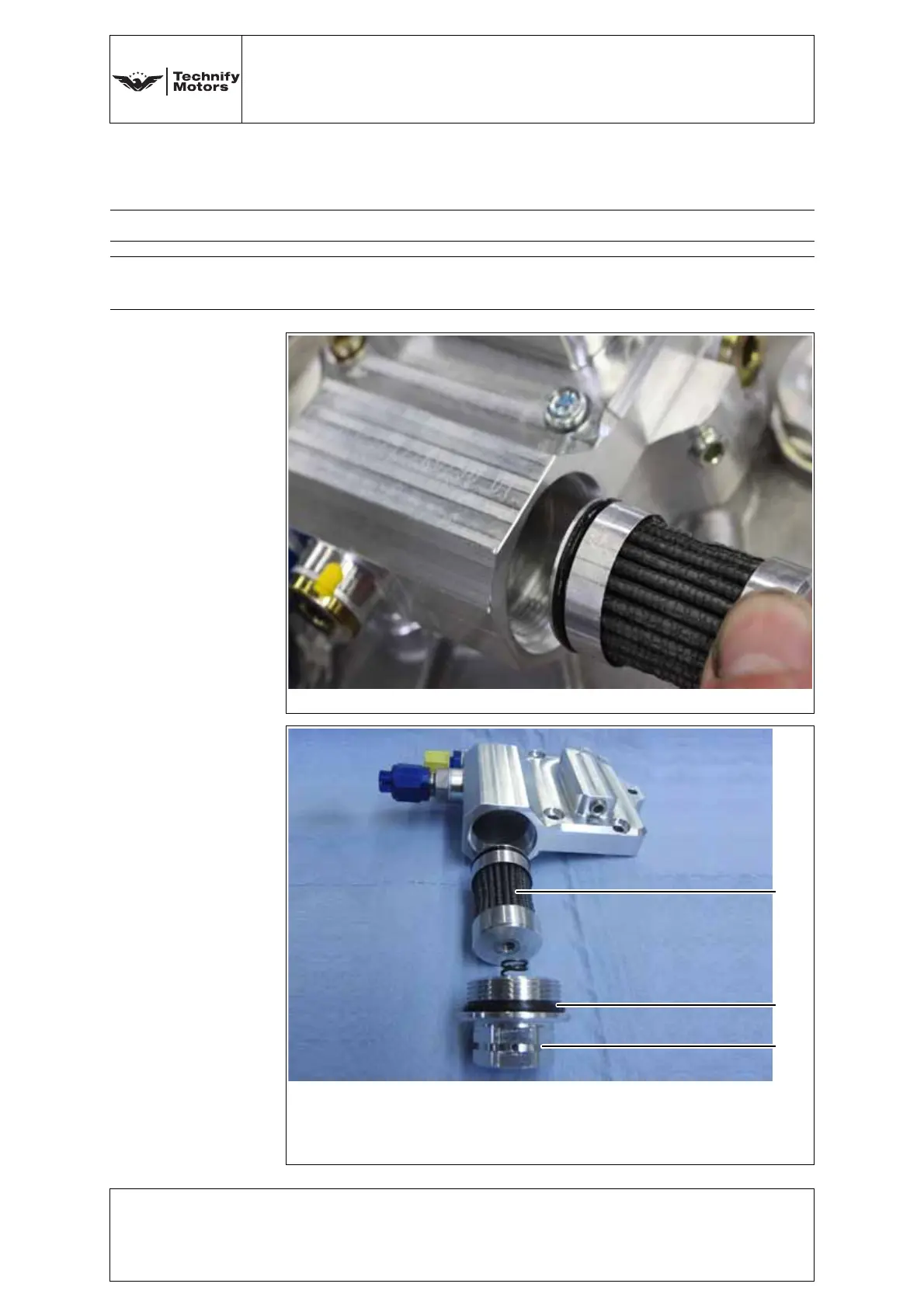

Fig. 6.13 Mounting direction of the oil filter
Fig. 6.14 Gearbox oil filter assembling
a Filter element with o-ring
bO-ring
c Filter cap with spring
a
b
c
