Technify Motors CD-155 User Manual

Operation & Maintenance Manual
CD-135 / CD-155
OM-02-02
Revision no.:
Revision date:
Chapter:
Issue:
Issue date:
Page:
Content:
02-OM-06-02
4
30.07.2014
35
74
7
20.07.2016
Gearbox without oil cooler:
1. Check oil level through the inspection glass of the gearbox.
The oil level must reach the top of the inspection glass, air
bubbles must not be visible. See Fig. 6.24.
2. If the oil level is not OK, check the gearbox for leaks.
3. If leaks were found contact Technify Motors GmbH, if no
leaks were found do the following work steps.
4. If oil needs to be refilled loosen the oil filler screw and
remove it. See Fig. 6.25.
Item Part Number Description 1 Description 2 Quantity
Required if oil needs to be refilled:
1 NM-0000-0021701 Sealing Ring DIN 7603-A18x24-Al 1
 CAUTION: Use only gearbox oil which is specified in Chapter 3, Section
3.5, Page 3 of this Manual

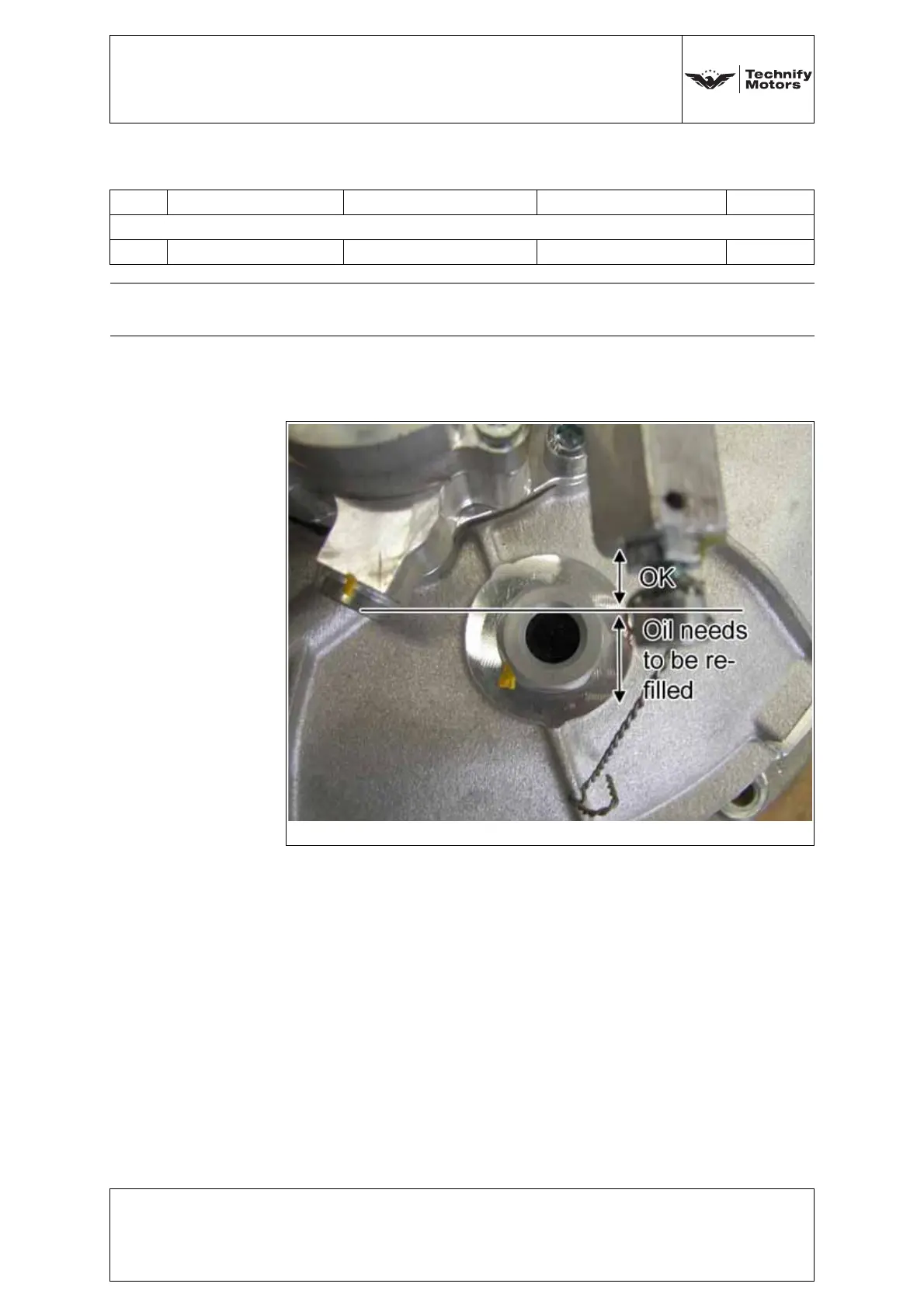

Fig. 6.24 Check the oil level
