11

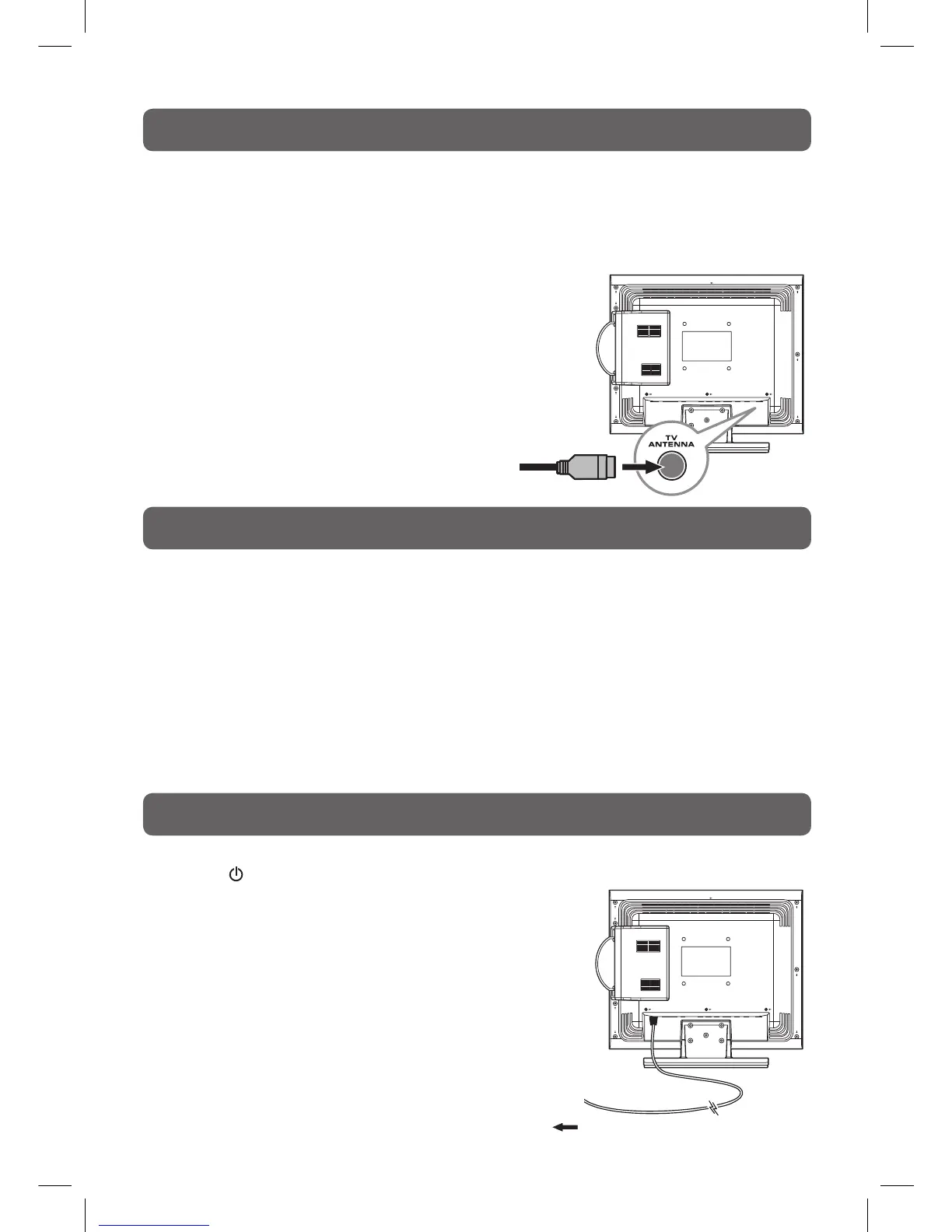

CONNECTING A TV ANTENNA
CONNECTING A TV ANTENNA/CABLE/SATELLITE
To view television channels correctly, a signal must be received from one of the following sources:
-Anindoororoutdooraerialantenna
-RFoutputofacablesystem
-RFoutputofasatellitesystem
COMMON INTERFACE
Satellite, Cable, or TV antenna cable to TV ANTENNA Terminal
(cable not included)
Note:
Forreceivingover-the-airTVbroadcasts,werecommendthatyou
use an external fixed antenna. Should you require the use of a
temporary antenna, please ensure that you purchase an antenna
with sufficient ability to receive in weak signal areas. Only when
you are in close proximity to a transmitter will a temporary
antenna reproduce a signal as strongly as a fixed antenna.
For best picture quality from a Satellite or Cable system, connect
totheTVbytheSCARTconnectorasshownonPage20.
The unit is equipped with a CI slot. The CI slot allows you to insert a CAM (Conditional Access
Module) with an appropriate subscription card for some pay for view services.
It is required to subscribe to a pay channel company to view the pay channels of the Digital
Terrestrial broadcasting.
Fully insert the CAM (Conditional Access Module) into the CI (Common Interface) slot on the
bottom of the unit with its label side facing you.
Important notes:
• SwitchofftheTVandunplugfromtheACpowermainsbeforeinsertorremovetheCAM.
• The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or
the TV terminal may be damaged if the CAM is forcefully inserted.
• Some CAMs may require setting up. Refer to the module instruction manual for details of the
settings.
• ConnecttheACpowercordintoawalloutlet.
• Pressthe / I button on the unit or remote control to turn on the unit.
Note:
• Be sure theAC power cord is disconnected and theTV is
switched off before making connections.
• Makesurethatallthecomponentsareconnectedcorrectly.
• Whenyouarenotgoingtousetheunitforalongperiodof
time, disconnect the power cord.
• The apparatus should not be exposed to dripping or
splashing and that no objects lled with liquids, such as
vases, should be placed on apparatus.
• The mains plug is used as the disconnecting device.
It should remain readily accessible and should not be
obstructed during use. To be completely disconnected from
the supply mains, the mains plug of the apparatus should be
disconnected from the mains socket outlet completely.
CONNECTING A POWER CORD
