CONNECTING TO DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)
VIDEO OUTPUT
To connect to A/V devices such as a VCR, camcorder or video game system.
- Connect to a VCR / Video Game System / Camcorder
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment
(AUDIO and VIDEO OUT) to this unit (AUDIO and VIDEO
IN).
To operate the connected device and play the source, first press
the FUNCTION button or AV button to select the AV1 mode.
Note:
Please refer to the user manual for the other equipment for more
information.

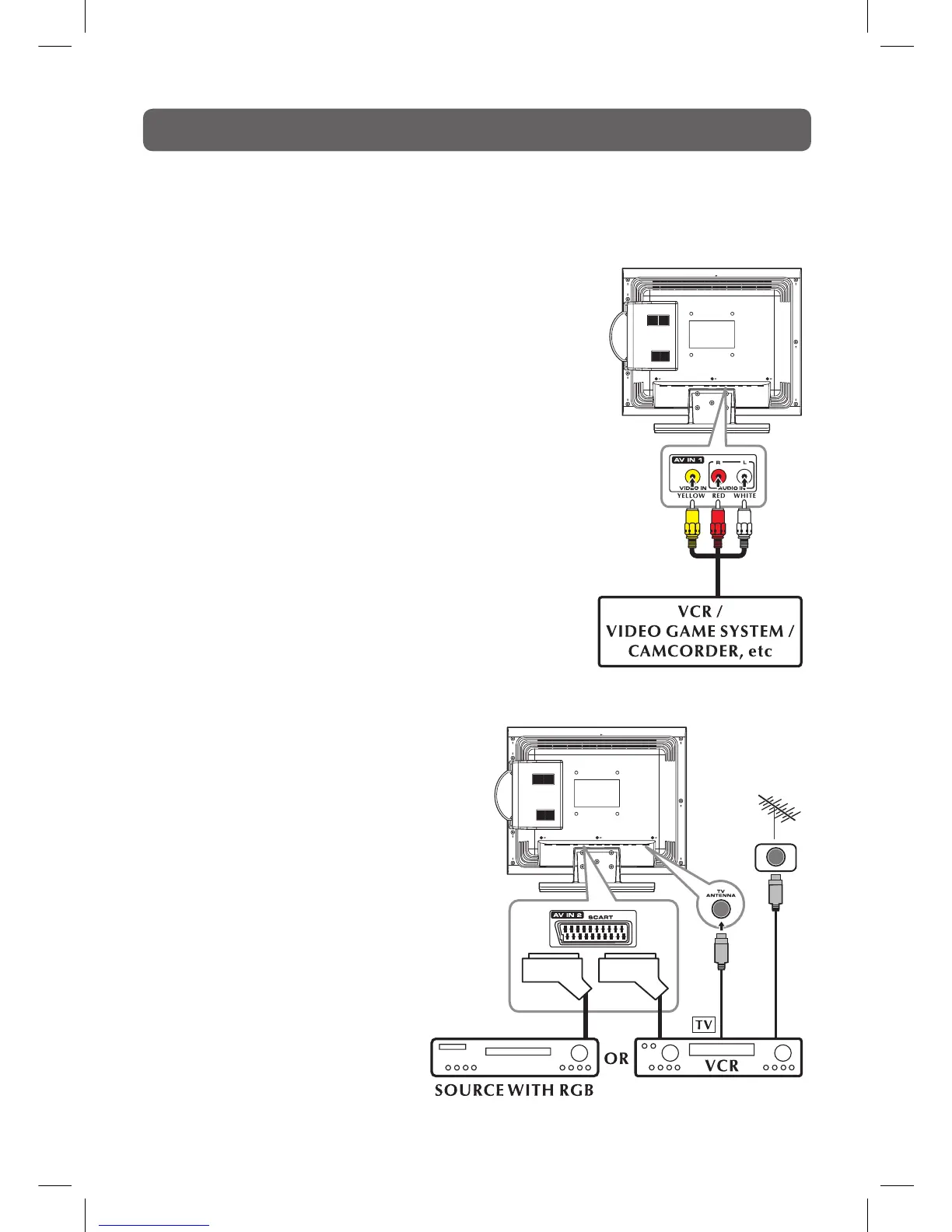

ToAUDIO/VIDEOINjacks(AV IN 1)
AUDIO / VIDEO CABLE (not included)
CONNECTING TO SOURCES WITH SCART
Devices with RGB video output must be
connected to the SCART input:
Connect the SCART from the source to the
corresponding SCART on this unit (SCART
cable not included).
Make sure you connect both SCART to SCART.
To operate the connected device and play the
source, first press the FUNCTION button or AV
button to select the AV2/SCART mode.
SCART CABLE (not included)
If your VCR permits, then
connect your TV antenna to your
VCR and VCR RF out to the unit.
To Next Page
