2.11. Rotor Cover Rollers Removal (Figure 20)
Mark the position of the blades in relation to the rotor slots before proceeding with
disassembly (Figure 22). Note the different blade and rotor bearings for standard and
tungsten carbide meter versions (See Figure 22A).
Figure 19 – Removing Arm from Rotor

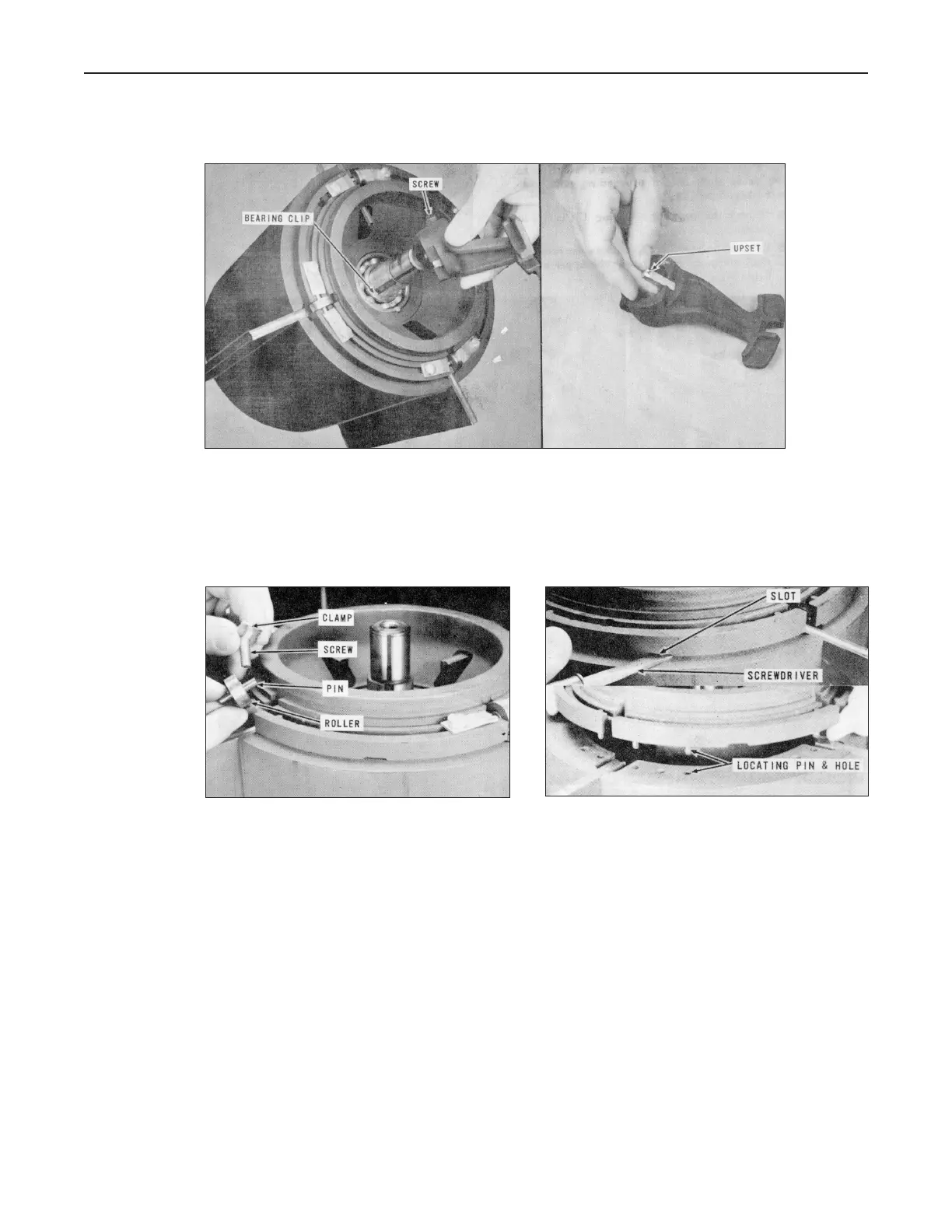

Figure 20 – Taking Out Rotor Cover Rollers Figure 21 – Removing Cover from Rotor
