housing.
  
  
     

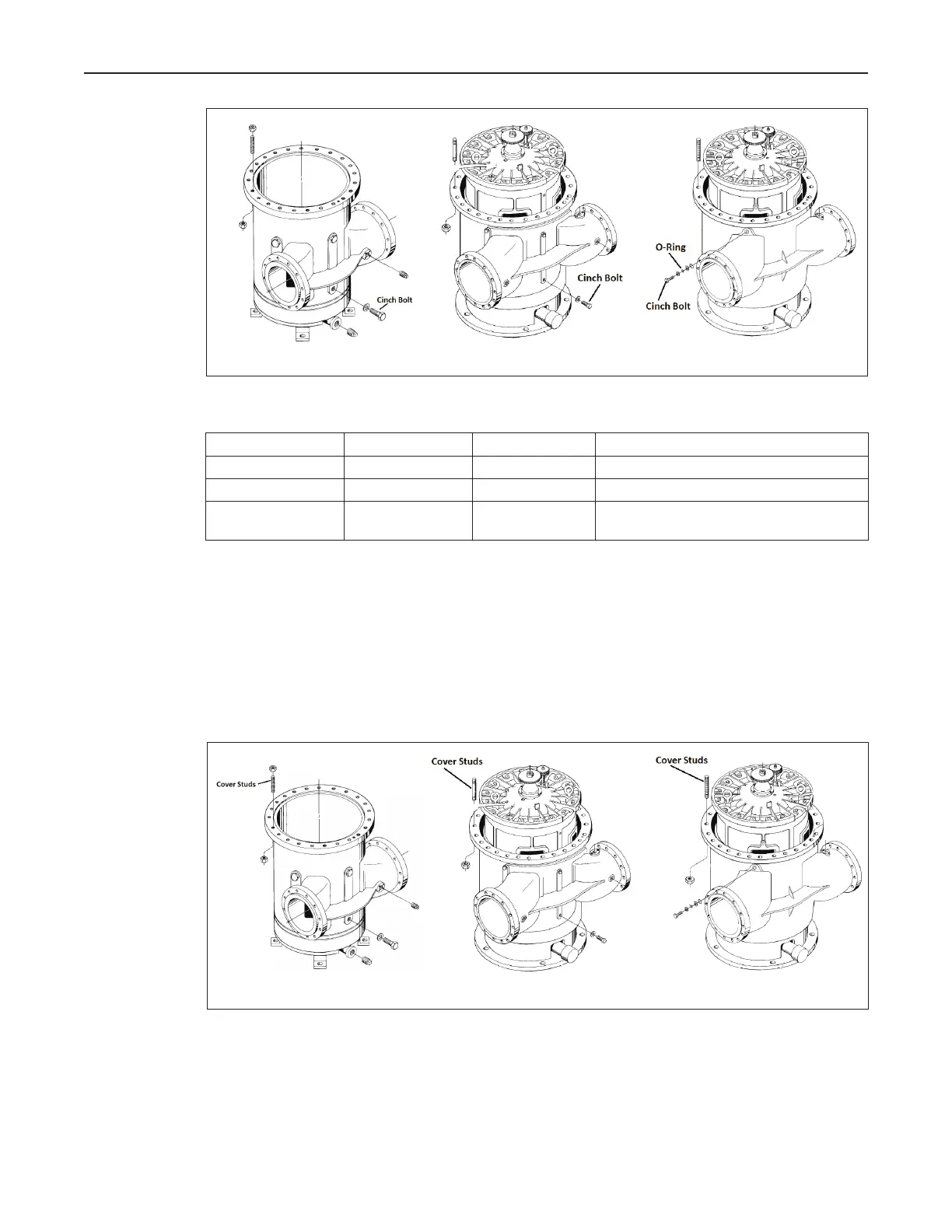

Figure 63 – Cinch bolt assembly
PD Meter Pressure Rating Stud Size (Inch) Tightening Torque - Dry or Wet FT*LB)
JB10 S1 to S7 5/8 110-125
K12 S1 to S6 7/8 255-270
M16
(1993-Present only)
S1 to S6 1 450-465
Table 3 – Torque values
JA/JB10 K12
M16
JA/JB10 K12
M16
Figure 64 – Cover studs
