Section IV – Diagrams

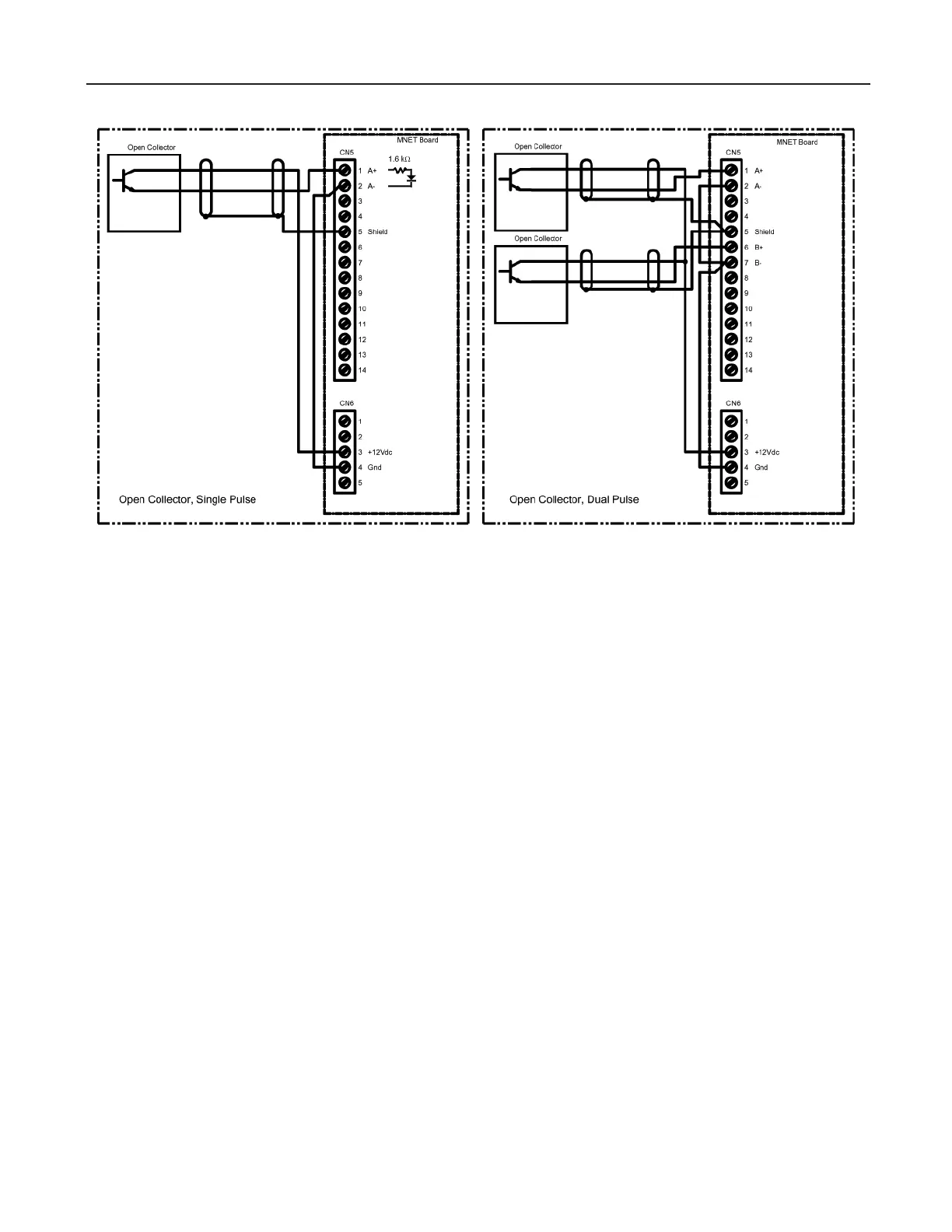

Figure 11. Wiring Diagram, Open Collector Output
The Pulse input circuitry has 1.6 kΩ of correct limiting resistance “built in” so that an external pull-up resistor is not required
when an open collector output device is connected as shown.
