Section IV – Diagrams
Digital Outputs
The microLoad.net is capable of providing two DC digital outputs and four AC digital outputs. The outputs can be


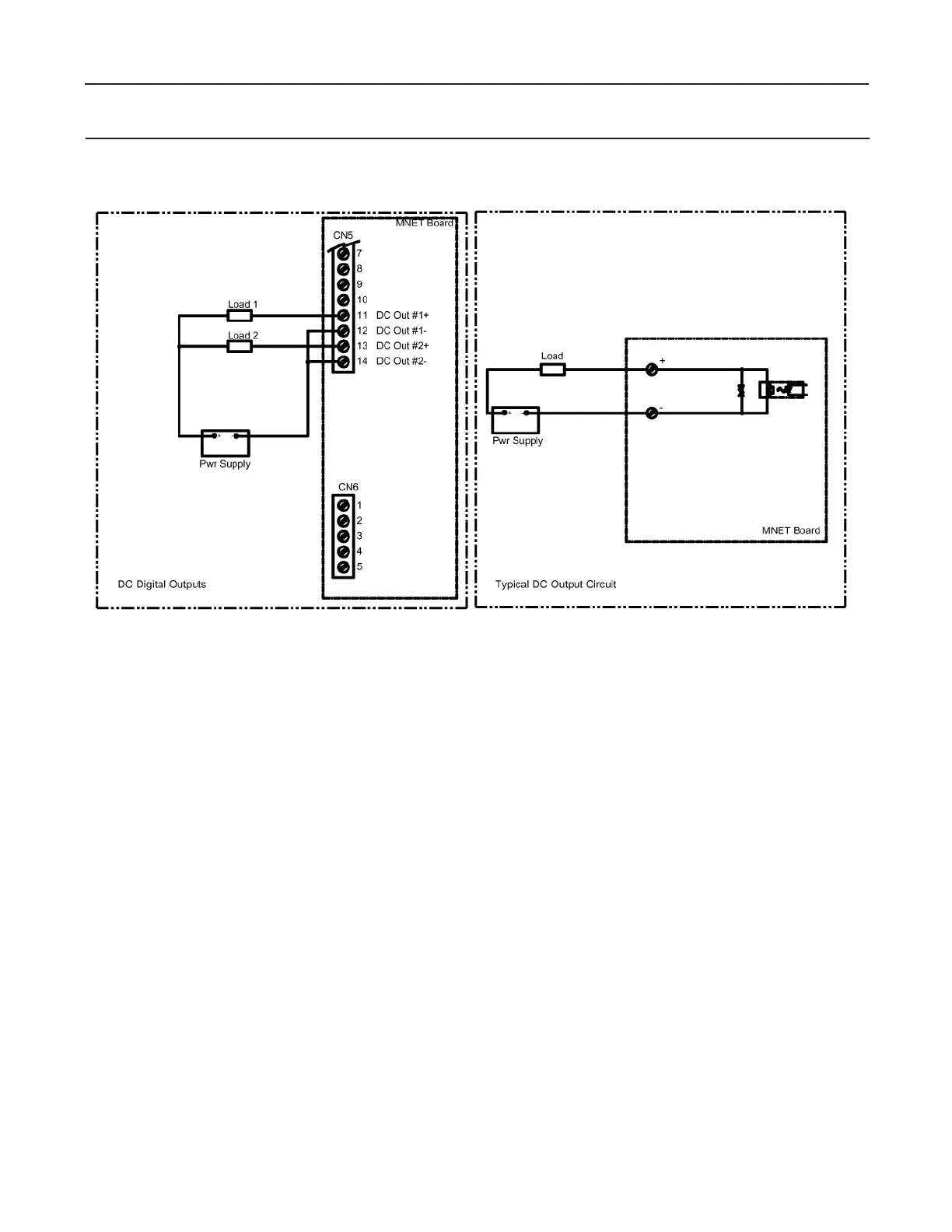

Figure 23. DC Digital Outputs
