Section IV – Diagrams

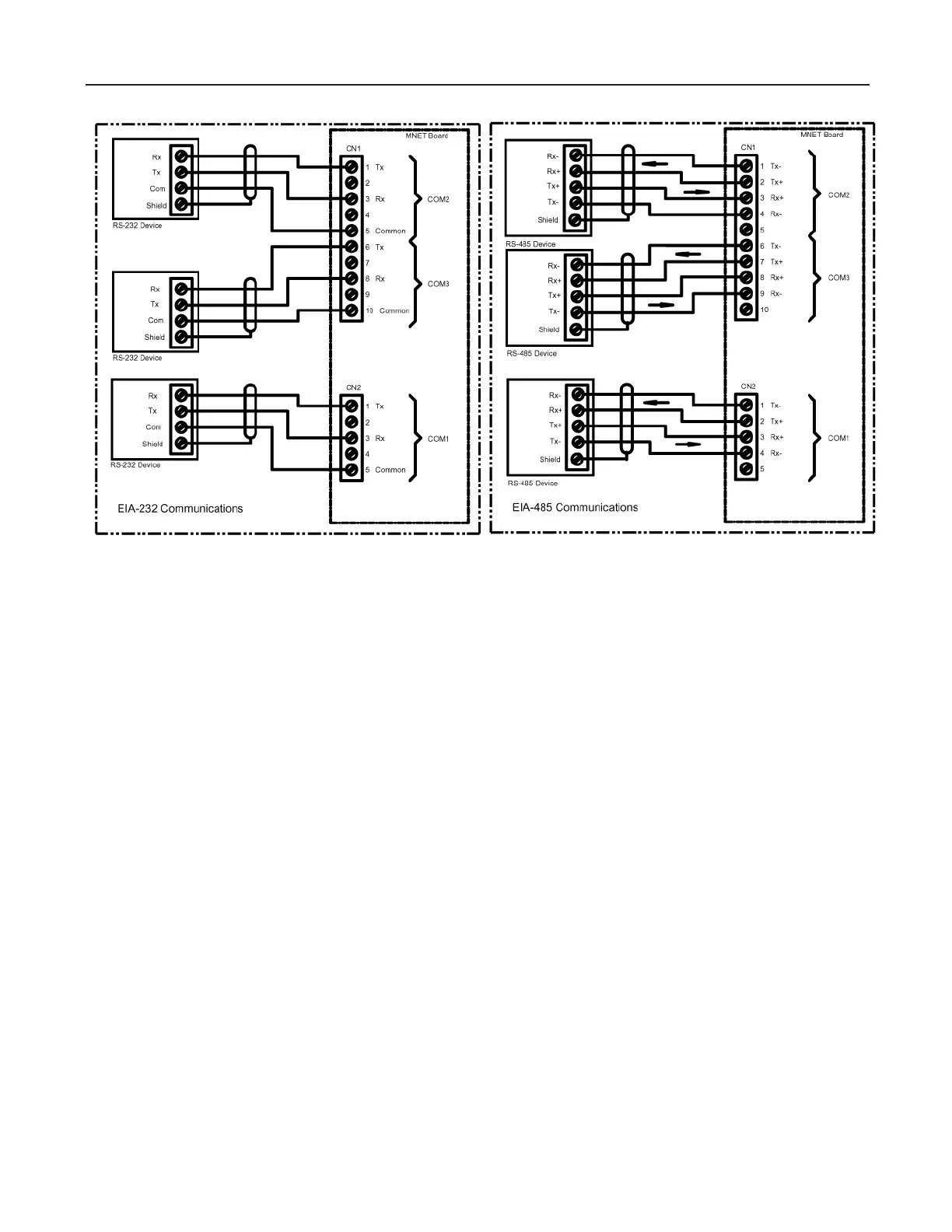

Figure 14. General Wiring for Serial Communications

Note: The shield is to be terminated at the communications device as shown.

Note: If using RS-485, refer to switch termination information on page 14.
