Section IV – Diagrams

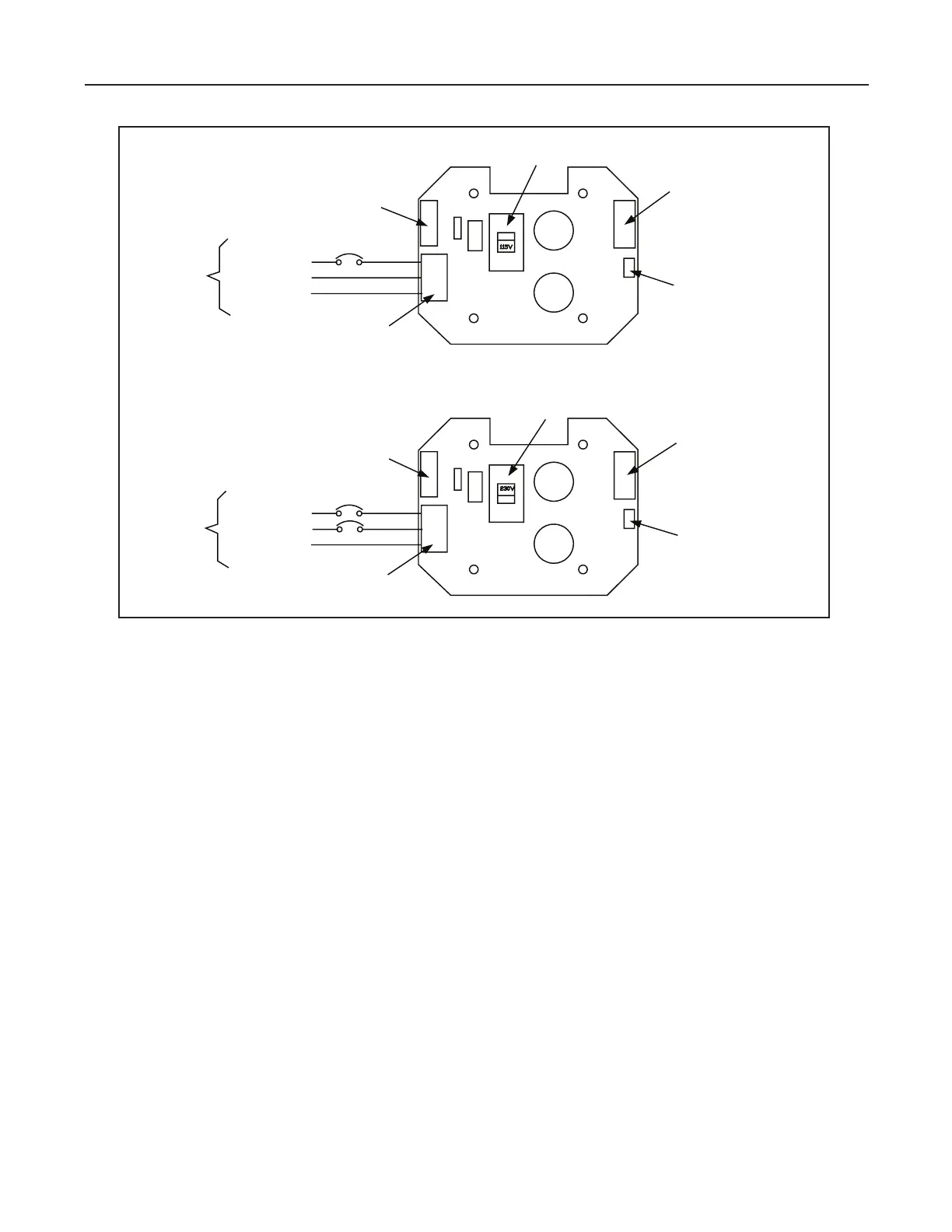

Figure 25. MACF Board / Instrument Power Wiring
Instrument power is connected to the MACF board located inside the microLoad.net enclosure. Be certain to select

Hot
Neutral
Safety Ground
TB1: Instrument Power
Fuse
TB2: Factory Cable
CN1: Factory Cable
TB1: Instrument Power
Fuse
TB2: Factory Cable
CN1: Factory Cable
Voltage Selector Switch
Voltage Selector Switch
Safety Ground
Hot
Hot
115 Vac
Customer
Wiring
230 Vac
Customer
Wiring
