TechnipFMC Smith Meter microLoad.net - Figure 12. Wiring Diagram, Typical Metered Injector


Section IV – Diagrams

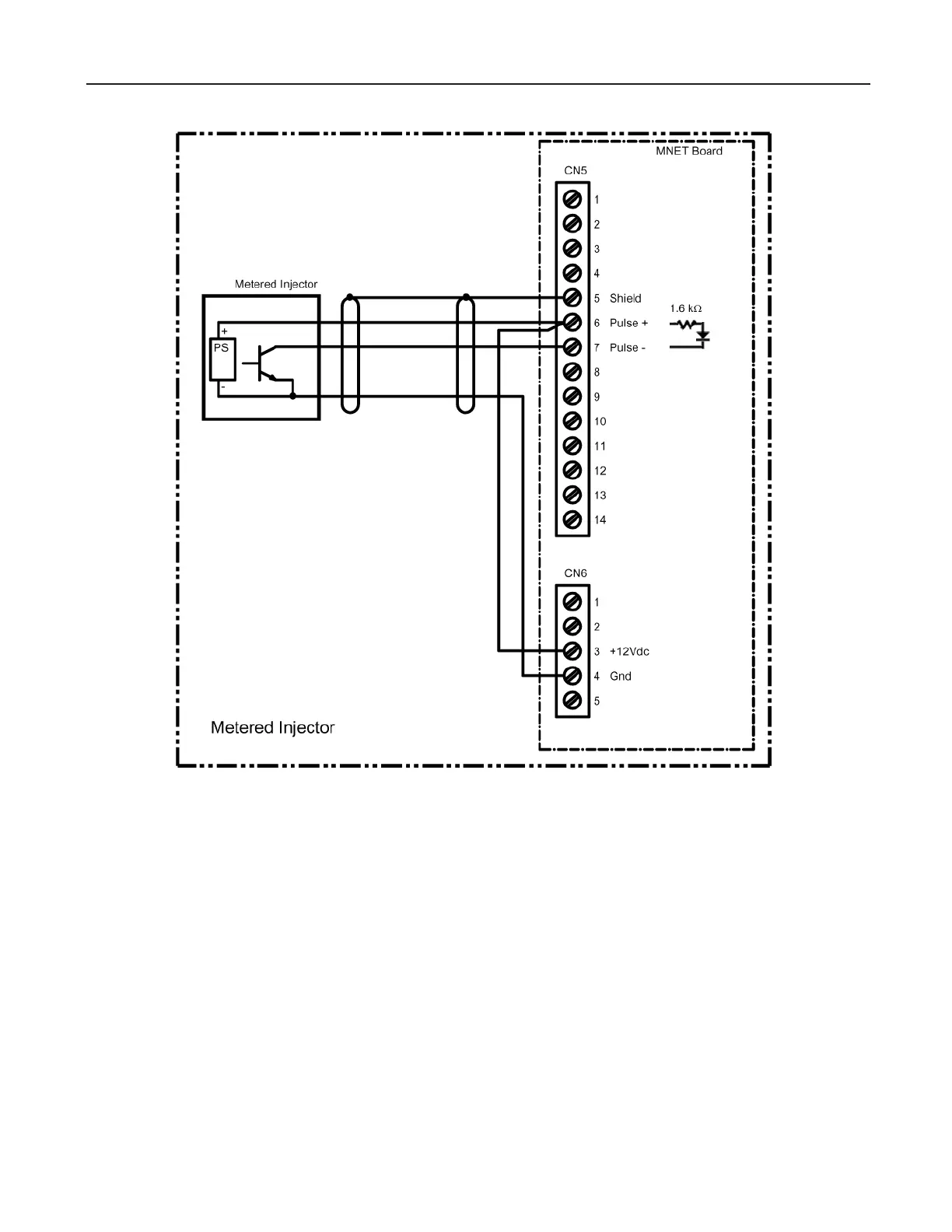

Figure 12. Wiring Diagram, Typical Metered Injector
The Pulse input circuitry has 1.6 kΩ of correct limiting resistance “built in” so that an external pull-up resistor is not required
when an open collector output device is connected as shown.
